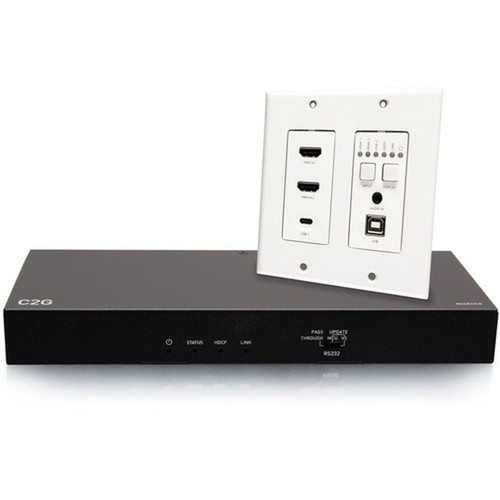

C2G C2G31020 Dual 4K HDMI HDBaseT Wall Plate Transmitter to Audio De-Embedding Receiver - 4K 60Hz
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wired
Number of Input Devices Supported: 2
Number of Output Devices Supported: 1
Maximum Operating Distance: 230 ft (70104 mm)
HDBase-T: Yes
Graphics Modes: 4K,2K
Supported Video Modes: 1080p
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 8
Number of HDMI Inputs: 3
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a,Category 5e,Category 6
Power over Ethernet (PoE): Yes
Color Family: Black
Product Color: Black
Transmitter Height: 0.98" (25 mm)
Transmitter Width: 8.27" (210 mm)
Transmitter Depth: 78.74 mil (2 mm)
Receiver Height: 0.16" (4 mm)
Receiver Width: 3.50" (89 mm)
Receiver Depth: 4.16" (105.60 mm)
Form Factor: Wall Plate
Transmitter Weight (Approximate): 10.58 oz (300 g)
Receiver Weight (Approximate): 1.01 lb (460 g)
Application/Usage: Display,Classroom,Lecture Hall,Conference Room,Electronic Writing Board,Keyboard,Mouse,Camera
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 5 Year
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- Additional analog audio input pass-through allows for audio distribution to the receiver side
- The Transmitter supports automatic switching, following the last-in-first-out rule
- The transmitter supports firmware upgrade and device control via the Micro USB port
- Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
- Analog audio output pass-through and analog audio de-embedding of HDMI output allows for audio distribution
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G31020 |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | C2G |
| Product Name | Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver - 4K 60Hz |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 230 ft (70104 mm) |
| HDBase-T | Yes |
| Video | |
| Graphics Modes | 4K,2K |
| Supported Video Modes | 1080p |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 8 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a,Category 5e,Category 6 |
| Power Description | |
| Power over Ethernet (PoE) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 0.98" (25 mm) |
| Transmitter Width | 8.27" (210 mm) |
| Transmitter Depth | 78.74 mil (2 mm) |
| Receiver Height | 0.16" (4 mm) |
| Receiver Width | 3.50" (89 mm) |
| Receiver Depth | 4.16" (105.60 mm) |
| Form Factor | Wall Plate |
| Transmitter Weight (Approximate) | 10.58 oz (300 g) |
| Receiver Weight (Approximate) | 1.01 lb (460 g) |
| Miscellaneous | |
| Application/Usage | Display,Classroom,Lecture Hall,Conference Room,Electronic Writing Board,Keyboard,Mouse,Camera |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
