Chief HB74P Custom VCM Interface Bracket for Projector Mounting - Compatible with ProjectionDesign Avielo Helios Series
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

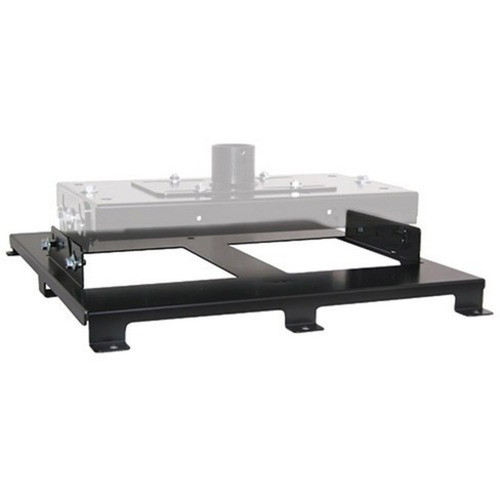

The Chief HB74P Custom VCM Interface Bracket is a specialized mounting solution designed for ProjectionDesign Avielo Helios series projectors. This bracket provides a secure and reliable interface for integrating these high-performance projectors into various installation environments, from commercial AV setups to dedicated home theaters.
Engineered by Chief, a trusted brand under the Legrand Group, the HB74P ensures precise compatibility with specific projector models, offering a tailored fit that enhances stability and ease of installation. Its robust construction supports the weight and dimensions of compatible projectors, making it an essential component for professional-grade projection systems.
This section brings together practical product details such as Device Supported, Package Contents, Compatibility, Country of Origin, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Technical Overview
The HB74P bracket is part of Chief's HB series, known for its durable design and compatibility with advanced projection equipment. It serves as a custom VCM (Versatile Ceiling Mount) interface, facilitating seamless integration with Chief's mounting systems for optimized placement and alignment.
This bracket is specifically validated for use with ProjectionDesign Avielo Helios projectors, including models like the F80 (1080P and WUXGA variants), F82 (1080P and WUXGA variants), and F85 (WUXGA and 1080P variants). The design accounts for the unique mounting points and weight distribution of these projectors, ensuring a secure attachment without compromising performance.
This section brings together practical product details such as Device Supported, Package Contents, Compatibility, Country of Origin, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Chief HB74P offers distinct advantages for AV integrators and installers seeking reliable mounting solutions for high-end projectors. Its custom design eliminates guesswork during installation, reducing setup time and ensuring a perfect fit for supported ProjectionDesign models.
Precision Compatibility
Tailored for ProjectionDesign Avielo Helios series projectors, this bracket guarantees a secure mount that aligns with the projector's structural requirements, minimizing vibration and enhancing image stability.
- Validated for F80, F82, F85 models
- Supports 1080P and WUXGA variants
Durability and Support
Built with heavy-duty materials, the HB74P withstands the weight and operational stresses of professional projectors, backed by a 10-year warranty for long-term peace of mind.
- Robust construction
- 10-year limited warranty
Deployment / Use Cases
The HB74P bracket is ideal for environments where ProjectionDesign Avielo Helios projectors are deployed, such as corporate boardrooms, educational institutions, houses of worship, and luxury home theaters. Its custom interface ensures that these projectors can be securely ceiling-mounted, optimizing sightlines and minimizing obtrusion.
In commercial AV installations, this bracket supports seamless integration with Chief's VCM systems, allowing for adjustable positioning and alignment. This is critical for applications requiring precise projection mapping, multi-screen setups, or installations in spaces with challenging ceiling structures.
This section brings together practical product details such as Device Supported, Package Contents, Compatibility, Country of Origin, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
What's in the Box
The package includes all necessary components for mounting compatible projectors, ensuring a complete out-of-the-box solution for installers.
Highlights
- Custom VCM Interface Bracket for ProjectionDesign Avielo Helios projectors
- Compatible with F80, F82, and F85 series models (1080P and WUXGA variants)
- Includes mounting hardware for complete installation
- 10-year limited warranty for long-term reliability
- Manufactured in the United States by Legrand Group
- Heavy-duty construction for secure projector mounting
- Part of Chief's HB series for professional AV integration
- Designed for ceiling mount applications in commercial and residential settings
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | HB74P |
| Brand Name | Chief |
| Product Series | HB |
| Product Model | HB74P |
| Product Name | Custom VCM Interface Bracket |
| Product Type | Mounting Bracket |
| Product Information | |
| Device Supported | Projector |
| Miscellaneous | |
| Package Contents | Custom VCM Interface Bracket Mounting Hardware |
| Compatibility | ProjectionDesign Projectors: Avielo Helios F80 F80 1080P F80 WUXGA F82 1080P F82 WUXGA F85 WUXGA F85 WUXGA 1080P Helios |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 10 Year |
FAQ
What projectors is the Chief HB74P bracket compatible with?
The Chief HB74P bracket is specifically designed for ProjectionDesign Avielo Helios series projectors, including the F80 (in 1080P and WUXGA variants), F82 (in 1080P and WUXGA variants), and F85 (in WUXGA and 1080P variants). It ensures a precise fit and secure mounting for these models.
What is included in the package with the HB74P bracket?
The package includes the Custom VCM Interface Bracket and all necessary mounting hardware. This provides a complete solution for installing compatible projectors without requiring additional components.
What type of warranty does the Chief HB74P bracket come with?
The Chief HB74P bracket is backed by a 10-year limited warranty. This warranty covers defects in materials and workmanship, offering long-term assurance for professional installations.
Where is the Chief HB74P bracket manufactured?
The Chief HB74P bracket is manufactured in the United States by the Legrand Group, ensuring quality control and adherence to industry standards for AV mounting solutions.
What is the VCM interface in the HB74P bracket?
The VCM (Versatile Ceiling Mount) interface is a proprietary system by Chief that allows for flexible and adjustable ceiling mounting. The HB74P bracket integrates with this system, enabling secure attachment and alignment of compatible projectors.
Is the HB74P bracket suitable for commercial AV installations?
Yes, the HB74P bracket is designed for professional use in commercial AV environments such as boardrooms, classrooms, and theaters. Its heavy-duty construction and compatibility with Chief's mounting systems make it ideal for demanding installations.
