Cisco HCIAF220C-M7S Barebone System - 1U Rack-mountable - Dual Intel Xeon Support - 4 TB DDR5 RAM - 32 Slots - 12Gb/s SAS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system supports two Intel Xeon processors from the Platinum, Gold, Silver, or Bronze families, enabling scalable compute performance for virtualized environments, database workloads, and application hosting. The Intel C741 chipset provides the platform foundation, supporting 64-bit processing and PCIe connectivity.
Memory architecture leverages DDR5 SDRAM technology across 32 DIMM slots, accommodating up to 4 TB of system RAM for memory-intensive applications. Storage connectivity is handled by a 12Gb/s SAS controller, though hardware RAID is not included. Graphics output is managed by an integrated Matrox controller with 8 MB of dedicated memory.
This section brings together practical product details such as Number of Processors Supported, Processor Supported, Processor Manufacturer, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages

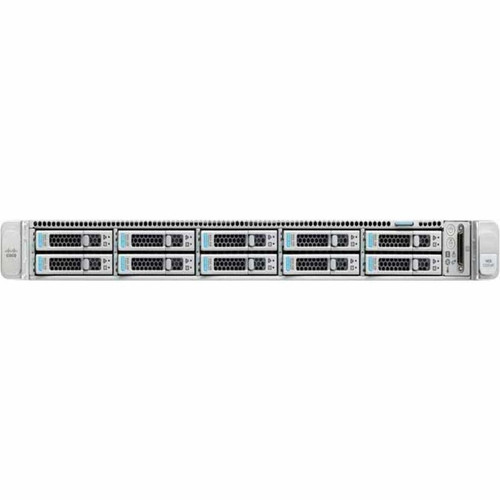

The 1U rack-mountable design optimizes data center space while maintaining serviceability with front-accessible drive bays and standard rack mounting. Dual processor support allows for symmetrical multiprocessing configurations, scaling compute resources as workload demands increase.
High-Density Memory Platform
With 32 DDR5 memory slots supporting up to 4 TB of RAM, this system delivers exceptional memory bandwidth for data analytics, in-memory databases, and virtualization hosts.
- DDR5 technology for faster data transfer
- Massive 4 TB capacity ceiling
- 32 slots for granular memory configuration
Enterprise Storage Flexibility
The 12Gb/s SAS controller and ten 2.5" drive bays provide robust storage expansion for SSDs or hard drives, while dual M.2 interfaces support NVMe boot devices or cache drives.
- 12Gb/s SAS for high-throughput storage
- Ten hot-swap capable bays
- Dual M.2 for modern NVMe storage
Deployment / Use Cases
This barebone system suits data center environments requiring standardized, serviceable server hardware that can be configured with specific processors, memory, and storage to match application requirements. The 1U form factor makes it ideal for high-density rack deployments where space efficiency matters.
IT teams can deploy these systems as standalone servers, as nodes in clustered environments, or as part of larger converged infrastructure solutions. The flexible expansion bay configuration supports mixed storage media types, while the dual M.2 interfaces enable fast boot devices or cache layers.
Hyperconverged Infrastructure Node
As part of the HCIAF220C M7 series with Nutanix integration, this barebone serves as a building block for hyperconverged clusters, combining compute, storage, and virtualization resources in a compact 1U footprint.
Enterprise Application Server
With dual Xeon support and extensive memory capacity, this platform hosts demanding business applications, database servers, and middleware solutions where reliability and performance are critical.
Physical Profile
The chassis measures 1.70 inches in height (1U), 16.90 inches in width, and 30 inches in depth, conforming to standard 19-inch rack specifications. At approximately 51.90 pounds, the system requires proper rack mounting hardware and consideration for weight distribution in multi-unit installations.

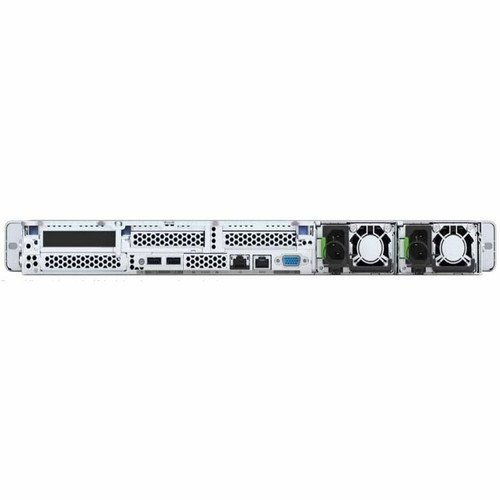

Front-panel connectivity includes two USB 3.0 ports, one serial port, and one VGA port for local management. The single Gigabit Ethernet port provides network connectivity, while the 120/230V AC power input supports dual-voltage operation in global data center environments.
- Width
- 16.90" (429.26 mm)
- Depth
- 30" (762 mm)
- Height
- 1U
- Weight
- 51.90 lb (23540 g)
Highlights
- 1U rack-mountable chassis for high-density data center deployment
- Supports dual Intel Xeon Platinum, Gold, Silver, or Bronze processors
- Intel C741 chipset with 64-bit processing architecture
- Up to 4 TB DDR5 SDRAM across 32 memory slots
- 12Gb/s SAS storage controller for enterprise drives
- Ten 2.5" expansion bays plus two M.2 interfaces
- Gigabit Ethernet with single RJ-45 port
- Front-panel USB 3.0, serial, and VGA connectivity
- 120/230V AC dual-voltage power input
- Matrox graphics controller with 8 MB dedicated memory
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HCIAF220C-M7S |
| Brand Name | Cisco |
| Product Series | HCIAF220C M7 |
| Product Name | Compute Hyperconverged with Nutanix HCIAF220C M7 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| Processor Manufacturer | Intel |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Manufacturer | Matrox |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Number of 2.5" Bays | 10 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of Serial Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
| Weight (Approximate) | 51.90 lb (23540 g) |
User Manual
FAQ
What processors are compatible with this barebone system?
The Cisco HCIAF220C-M7S supports two Intel Xeon processors from the Platinum, Gold, Silver, or Bronze families. These server-grade CPUs provide scalable compute performance for enterprise workloads, with the dual-socket design enabling symmetrical multiprocessing configurations. You'll need to purchase processors separately and install them according to Cisco's compatibility guidelines.
How much memory can this system support?
This barebone system supports up to 4 terabytes of DDR5 SDRAM across 32 memory slots. The DDR5 technology delivers higher bandwidth and improved power efficiency compared to previous generations, making it suitable for memory-intensive applications like virtualization, databases, and analytics. Memory modules must be purchased separately and installed in the correct configurations.
What storage expansion options are available?
The system includes ten 2.5" drive bays for SAS or SATA storage devices, plus two M.2 interfaces for NVMe SSDs. Storage is managed by a 12Gb/s SAS controller that provides high-throughput connectivity for enterprise drives. While hardware RAID is not included, you can implement software RAID through the operating system or add a RAID controller card.
What networking capabilities does this system have?
A single Gigabit Ethernet port provides network connectivity, suitable for management traffic and moderate data transfer needs. For higher bandwidth requirements, you can add network interface cards through available expansion slots. The system also includes a serial port for out-of-band management and console access.
What are the physical dimensions and rack requirements?
The chassis measures 1.70 inches high (1U), 16.90 inches wide, and 30 inches deep, fitting standard 19-inch server racks. At approximately 51.90 pounds, proper rack mounting hardware and weight consideration are essential. The 1U form factor optimizes data center space while maintaining serviceability with front-accessible components.
What power input does this system require?
The barebone system accepts 120V or 230V AC power input, making it compatible with North American and international data center power standards. You'll need to provide compatible power supply units and ensure proper power distribution in your rack environment. The dual-voltage capability offers deployment flexibility across different geographic regions.
What processor or platform detail is listed?
This product uses the Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze processor for everyday performance and multitasking.
