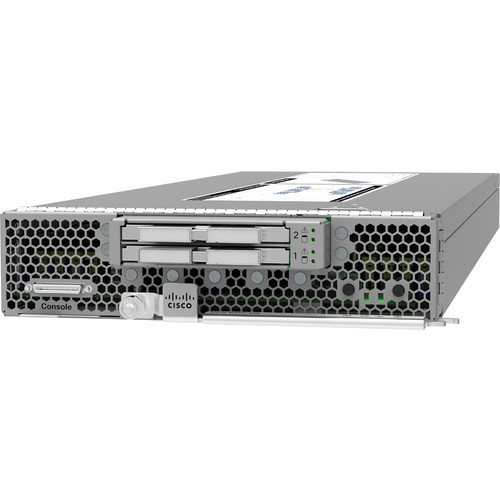

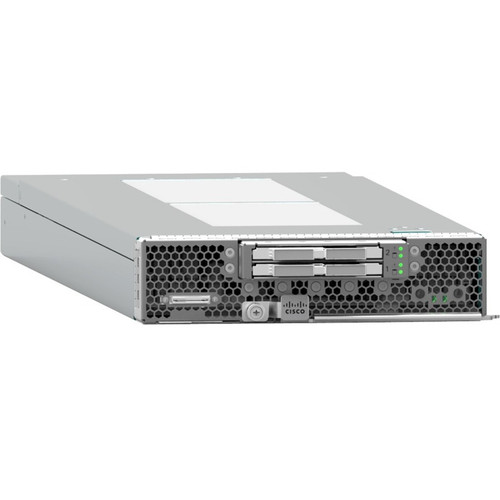

Cisco UCSB-B200-M6-CH Barebone System - Blade Server - 2 x Xeon Processor Support - Intel C621A Chipset - 12 TB DDR4-2666 RAM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical architecture of the Cisco UCS B200 M6 centers on the Intel C621A platform, which provides the foundation for dual-socket Xeon processor configurations. This chipset enables advanced memory and I/O capabilities, including support for DDR4-2666 memory across 32 DIMM slots, allowing for massive memory footprints up to 12 TB to handle memory-intensive applications.
Storage and expansion are handled through 12Gb/s SAS and SATA controllers with hardware RAID support, ensuring high-speed data access and redundancy. The system includes two total expansion bays for additional storage or I/O cards, and integrated Ethernet facilitates network connectivity. Graphics are managed by an 8 MB embedded controller, sufficient for basic console output in headless server environments.
This section brings together practical product details such as Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Cisco UCS B200 M6 Barebone System offers distinct advantages for IT infrastructure deployments, combining high-density design with enterprise-grade components. Its blade form factor allows for extreme processing density in rack environments, reducing physical footprint while maintaining full server capabilities.
Scalable Compute
Supports dual Xeon processors from Bronze to Platinum series, enabling flexible performance scaling based on workload requirements and budget.
- 64-bit processing
- Wide processor compatibility
- Enterprise chipset foundation
Massive Memory Capacity
With 32 DDR4 slots and support for up to 12 TB of RAM, this system can handle memory-intensive applications like in-memory databases, virtualization, and big data analytics.
- DDR4-2666 speed
- Intel Optane Memory ready
- High memory bandwidth
Deployment / Use Cases
The Cisco UCS B200 M6 is designed for deployment in enterprise data centers, cloud infrastructure, and high-performance computing environments where density, reliability, and scalability are critical. Its barebone configuration allows IT teams to customize processors, memory, and storage to match specific application requirements.
Primary use cases include virtualization hosts running VMware, Hyper-V, or KVM; database servers for SQL, Oracle, or NoSQL platforms; and computational nodes for scientific, engineering, or financial analytics workloads. The blade form factor makes it ideal for Cisco UCS chassis deployments, where multiple blades can be managed as a unified system with centralized management tools.
Virtualization Platform
Ideal as a virtualization host with dual processor support and massive memory capacity for running multiple virtual machines with demanding resource requirements.
High-Density Data Center
The blade design maximizes rack space utilization, allowing more compute power per square foot in constrained data center environments.
Physical Profile
The Cisco UCS B200 M6 features a compact blade form factor measuring 1.95 inches in height, 8.35 inches in width, and 24.40 inches in depth, with an approximate weight of 10.01 pounds. This slim profile is engineered for high-density deployment in Cisco UCS chassis, where multiple blades share power, cooling, and management infrastructure. The design prioritizes efficient airflow and thermal management for reliable operation in 24/7 enterprise environments.
- Width
- 8.35" (212.09 mm)
- Depth
- 24.40" (619.76 mm)
- Height
- 1.95" (49.53 mm)
- Weight
- 10.01 lb (4540 g)
Highlights
- Blade form factor for maximum density in rack deployments
- Supports dual Xeon processors (Bronze, Silver, Gold, Platinum)
- Intel C621A chipset with enterprise platform features
- Up to 12 TB DDR4-2666 memory across 32 DIMM slots
- 12Gb/s SAS and SATA controllers with RAID support
- Intel Optane Memory ready for persistent memory configurations
- Integrated Ethernet connectivity for network integration
- Two expansion bays for additional storage or I/O cards
- Compact dimensions: 1.95" H × 8.35" W × 24.40" D
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSB-B200-M6-CH |
| Brand Name | Cisco |
| Product Series | B200 M6 |
| Product Name | UCS B200 M6 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Bronze,Xeon Silver,Xeon Gold,Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 12 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Physical Characteristics | |
| Form Factor | Blade |
| Height | 1.95" (49.53 mm) |
| Width | 8.35" (212.09 mm) |
| Depth | 24.40" (619.76 mm) |
| Weight (Approximate) | 10.01 lb (4540 g) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this Cisco barebone system?
The Cisco UCS B200 M6 supports dual Intel Xeon processors from the Bronze, Silver, Gold, and Platinum families. This wide compatibility allows you to choose processors that match your performance needs and budget, from entry-level Bronze models to high-end Platinum processors for demanding workloads.
How much memory can this system support?
This barebone system supports up to 12 TB of DDR4-2666/PC4-21300 memory across 32 DIMM slots. This massive memory capacity is suitable for memory-intensive applications like virtualization, in-memory databases, and large-scale data analytics.
What storage controllers are included?
The system includes 12Gb/s SAS and Serial ATA controllers with hardware RAID support. These controllers provide high-speed connectivity for SAS and SATA drives, with RAID capabilities for data redundancy and performance optimization in storage configurations.
What is the form factor of this Cisco server?
The Cisco UCS B200 M6 uses a blade form factor designed for deployment in Cisco UCS chassis. This compact design measures 1.95 inches high, 8.35 inches wide, and 24.40 inches deep, allowing high-density placement in rack environments with shared power and cooling infrastructure.
Does this system support Intel Optane Memory?
Yes, the Cisco UCS B200 M6 is Intel Optane Memory ready. This means it can support Intel Optane persistent memory modules, which provide high-speed, non-volatile memory that can accelerate certain workloads and enable larger memory configurations.
What warranty comes with this barebone system?
The Cisco UCS B200 M6 Barebone System includes a 3-year limited warranty. This warranty covers defects in materials and workmanship, providing assurance for enterprise deployments where reliability and support are critical considerations.
What processor or platform detail is listed?
This product uses the Xeon Bronze,Xeon Silver,Xeon Gold,Xeon Platinum processor for everyday performance and multitasking.
