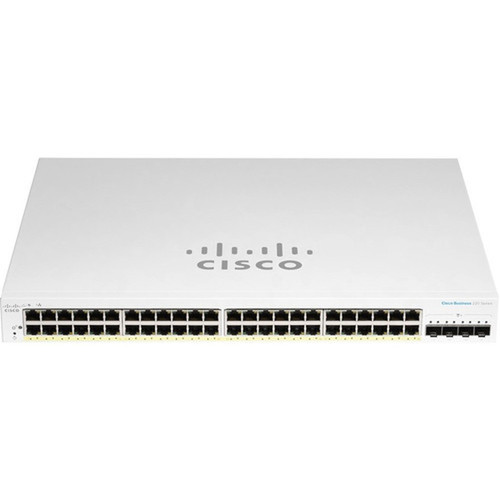

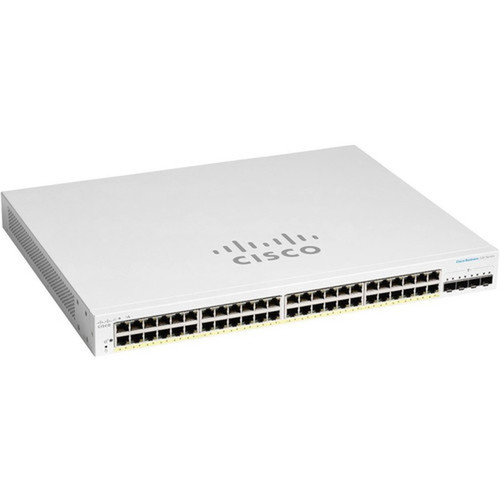

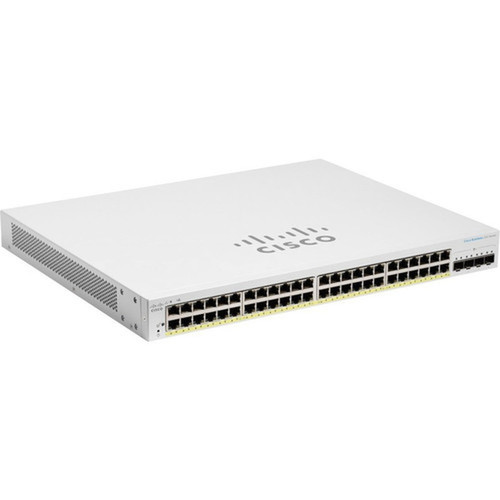

Cisco CBS220-48T-4X-NA Business Ethernet Switch - 48 Ports - 4 SFP+ Uplinks - Layer 2 Managed - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The CBS220-48T-4X operates as a Layer 2 managed switch, supporting advanced features such as IGMP snooping, port mirroring, and spanning tree protocols. These capabilities enable efficient traffic management, network monitoring, and redundancy for improved reliability.
With 48 Gigabit Ethernet ports and four 10 Gigabit Ethernet SFP+ expansion slots, the switch supports network technologies including 1000Base-T and 10GBase-X. This configuration allows for high-speed uplinks and future-proof connectivity options.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This switch combines high port density with advanced management features, making it suitable for demanding business environments. The inclusion of SFP+ uplinks provides 10x faster connectivity than standard Ethernet, enhancing server and backbone performance.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Scalable Connectivity, Professional Management.
Scalable Connectivity
With 48 ports and modular uplinks, the switch supports network growth without requiring immediate hardware upgrades.
- 48 Gigabit Ethernet ports
- 4 SFP+ expansion slots
- Supports twisted pair and fiber
Professional Management
Layer 2 managed features offer control over network traffic, security, and performance monitoring.
- IGMP snooping
- Port mirroring
- Spanning tree protocol
Deployment / Use Cases
The Cisco CBS220-48T-4X is ideal for office networks, retail environments, and educational institutions requiring reliable wired connectivity. Its rack-mountable design suits server rooms and network closets where organized cable management is essential.
Use this switch to build a core network foundation, connect multiple workstations and servers, or create high-speed uplinks to other network devices. The modular uplink ports allow for fiber connectivity in longer-distance deployments.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Office Network Core
Deploy as the central switch for connecting computers, printers, and IP phones across multiple departments.
Server Room Integration
Rack-mount in data environments to provide high-density port access and 10G uplinks to servers or storage.
Physical Profile
The switch features a compact rack-mountable design with dimensions of 1.73" (44 mm) height, 17.32" (440 mm) width, and 10.12" (257 mm) depth. Weighing 7.80 lb (3540 g), it fits standard 19-inch racks and includes a mounting kit for secure installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 17.32" (440 mm), 10.12" (257 mm), 7.80 lb (3540 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Depth
- 10.12" (257 mm)
- Height
- 1.73" (44 mm)
- Weight
- 7.80 lb (3540 g)
What's in the Box
The package includes all necessary components for immediate deployment and setup.
Highlights
- 48 Gigabit Ethernet ports for high-density connectivity
- 4 SFP+ uplink slots supporting 10 Gigabit Ethernet
- Layer 2 managed switch with advanced network features
- Rack-mountable form factor for professional installation
- Supports both twisted pair and optical fiber media
- Built-in power supply with 41.20W power consumption
- Includes mounting kit and quick start guide
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CBS220-48T-4X-NA |
| Brand Name | Cisco |
| Product Line | Business |
| Product Series | 220 |
| Product Model | CBS220-48T-4X |
| Product Name | Business CBS220-48T-4X Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 41.20 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 10.12" (257 mm) |
| Weight (Approximate) | 7.80 lb (3540 g) |
| Miscellaneous | |
| Package Contents | Business CBS220-48T-4X Ethernet Switch Power Cord Mounting Kit Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many ports does this Cisco switch have?
The Cisco CBS220-48T-4X features 48 Gigabit Ethernet ports for connecting network devices. These ports support 1000Base-T technology over twisted pair cabling, providing high-speed connectivity for computers, printers, IP phones, and other networked equipment in business environments.
What type of uplink ports are available?
This switch includes four SFP+ expansion slots that support 10 Gigabit Ethernet uplinks. These modular ports allow for fiber optic or copper connections, providing high-speed backbone connectivity to other switches, servers, or network infrastructure with 10GBase-X compatibility.
Is this a managed or unmanaged switch?
The CBS220-48T-4X is a fully managed Layer 2 switch. It offers advanced management features including IGMP snooping for multicast traffic control, port mirroring for network monitoring, and spanning tree protocol for network redundancy and loop prevention in business network deployments.
Can this switch be rack-mounted?
Yes, this switch features a rack-mountable form factor designed for professional installation. With dimensions of 1.73" height, 17.32" width, and 10.12" depth, it fits standard 19-inch racks. The package includes a mounting kit for secure installation in server rooms or network closets.
What is the power consumption of this switch?
The switch has a power consumption of 41.20 watts. It includes a built-in power supply that ensures stable voltage delivery to all components. This energy-efficient design helps reduce operating costs while maintaining reliable performance for connected network devices.
What comes in the box with this switch?
The package includes the Business CBS220-48T-4X Ethernet Switch, a power cord for connectivity, a mounting kit for rack installation, and a quick start guide for setup assistance. All necessary components are provided for immediate deployment in your network environment.
