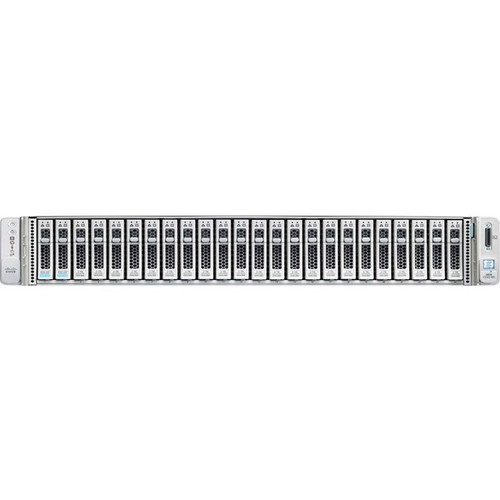

Cisco HX-E-240-M5SX HyperFlex HX240 M5 Edge Server Barebone - 2U Rack-mountable - Dual Xeon Support - 3TB DDR4 - 12Gb/s SAS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server barebone supports two Intel Xeon processors, enabling scalable compute performance for demanding applications. The Intel C621 chipset provides robust platform management and I/O capabilities, while the 12Gb/s SAS controller ensures high-speed storage connectivity with hardware RAID support for data protection.
Memory architecture features 24 DDR4 SDRAM slots supporting up to 3TB total capacity, allowing extensive memory configuration for virtualization or in-memory databases. Network connectivity is handled by 10 Gigabit Ethernet interfaces, delivering low-latency throughput for clustered or high-bandwidth workloads.
Relevant factors for this section include Number of Processors Supported, Processor Supported, Chipset Manufacturer, Chipset Model. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The HyperFlex HX240 M5 Edge Server Barebone combines dense compute resources with enterprise storage and networking features in a standardized 2U footprint. This integration simplifies edge infrastructure deployment while maintaining compatibility with data center management practices.
Scalable Compute Foundation
Dual processor support and extensive memory capacity enable this barebone to scale from medium workloads to intensive virtualized environments without chassis changes.
- Supports two Intel Xeon processors
- 24 DDR4 memory slots
- 3TB maximum memory capacity
Enterprise Storage Performance
The integrated 12Gb/s SAS controller delivers high-throughput storage connectivity with hardware RAID support for data integrity in business-critical applications.
- 12Gb/s SAS interface
- Hardware RAID support
- Enterprise-grade reliability
High-Speed Networking
10 Gigabit Ethernet provides ample bandwidth for clustered applications, storage networking, or high-volume data transfers between edge locations and core data centers.
- 10Gb Ethernet standard
- Low-latency performance
- Ideal for distributed workloads
Deployment / Use Cases
This server barebone is engineered for edge computing scenarios where space, power, and manageability constraints exist alongside performance requirements. The 2U rack-mountable design fits standard data center cabinets while delivering substantial compute resources.
Typical deployments include branch office infrastructure, retail back-end systems, manufacturing data aggregation points, and telecommunications edge nodes. The platform supports Windows Server 2019 Datacenter and Standard editions, making it suitable for both virtualized and bare-metal application hosting.
Relevant factors for this section include Number of Processors Supported, Processor Supported, Chipset Manufacturer, Chipset Model. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Edge Computing Infrastructure
Deploy as a compute node in distributed environments where local processing reduces latency and bandwidth consumption compared to centralized data centers.
Virtualization Host
Utilize the dual processor support and large memory capacity to host multiple virtual machines for consolidated application delivery at remote sites.
Physical Profile
The 2U rack-mountable chassis measures 3.43" (87.12 mm) in height, 18.96" (481.58 mm) in width, and 30.18" (766.57 mm) in depth, fitting standard 19-inch rack enclosures. With an approximate weight of 37.50 lb (17009.71 g), the system balances density with serviceability. The compact form factor optimizes rack space utilization while providing adequate airflow for component cooling.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 18.96" (481.58 mm), 30.18" (766.57 mm), 37.50 lb (17009.71 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 18.96" (481.58 mm)
- Depth
- 30.18" (766.57 mm)
- Height
- 2U
- Weight
- 37.50 lb (17009.71 g)
Highlights
- Supports dual Intel Xeon processors for scalable compute performance
- Maximum 3TB DDR4 SDRAM across 24 memory slots
- 12Gb/s SAS controller with RAID support for enterprise storage
- 10 Gigabit Ethernet networking for high-bandwidth applications
- 2U rack-mountable chassis fits standard data center cabinets
- Windows Server 2019 Datacenter and Standard OS support
- Dual USB 3.0 ports for peripheral connectivity
- 120V/230V AC input voltage compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HX-E-240-M5SX |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HX240 M5 |
| Product Model | HyperFlex HX240 M5 Edge |
| Product Name | HyperFlex HX240 M5 Edge Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows Server 2019 Datacenter,Windows Server 2019 Standard |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87.12 mm) |
| Width | 18.96" (481.58 mm) |
| Depth | 30.18" (766.57 mm) |
| Weight (Approximate) | 37.50 lb (17009.71 g) |
FAQ
What processors does this server barebone support?
The Cisco HyperFlex HX240 M5 Edge Server Barebone System supports dual Intel Xeon processors. This dual-socket configuration enables substantial compute performance for virtualized environments, database applications, and other demanding workloads at the edge.
How much memory can this system accommodate?
This barebone system supports up to 3TB of DDR4 SDRAM across 24 memory slots. This extensive memory capacity allows for large in-memory databases, numerous virtual machines, or memory-intensive applications in edge computing deployments.
What storage connectivity does this server provide?
The system includes a 12Gb/s SAS controller with hardware RAID support. This enterprise-grade storage interface delivers high throughput for direct-attached storage devices while providing data protection through RAID configurations.
What networking capabilities does this barebone offer?
The server barebone features 10 Gigabit Ethernet networking. This high-speed connectivity supports low-latency communication between servers, storage systems, and network infrastructure, making it suitable for clustered applications and high-bandwidth data transfers.
What operating systems are supported?
The system supports Windows Server 2019 Datacenter and Windows Server 2019 Standard editions. These operating systems provide comprehensive server management, virtualization, and application hosting capabilities for enterprise environments.
What are the physical dimensions and rack requirements?
The server barebone uses a 2U rack-mountable form factor measuring 3.43" high, 18.96" wide, and 30.18" deep. It fits standard 19-inch rack enclosures and weighs approximately 37.50 pounds, balancing compute density with serviceability in constrained edge locations.
