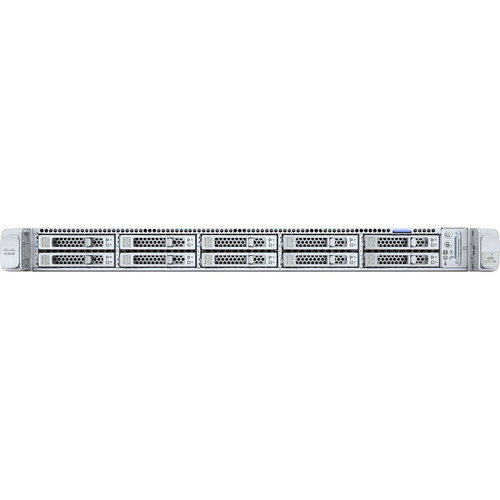

Cisco HX-E-220M6S HyperFlex HX220 M6 Server Barebone System - 1U Rack-mountable - Dual Processor Support - Intel C621A Chip - 4 TB DDR4 SDRAM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HX220 M6 supports two Intel Xeon Scalable processors, including Platinum, Gold, Silver, and Bronze series, enabling scalable performance for virtualized environments and demanding applications. The Intel C621A chipset provides the platform foundation, supporting PCIe connectivity and memory management for enterprise workloads.
Memory architecture features 32 DDR4 SDRAM slots capable of supporting up to 4 TB of DDR4-3200/PC4-25600 memory. Storage connectivity is handled by 12Gb/s SAS and Serial ATA/600 controllers, offering high-throughput options for both enterprise SAS and SATA drives. Network performance is driven by integrated 10 Gigabit Ethernet, ensuring low-latency data transfer suitable for clustered and hyperconverged deployments.
This section brings together practical product details such as Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Cisco HyperFlex HX220 M6 delivers a balanced combination of compute density, memory scalability, and storage performance in a space-efficient 1U chassis. Its barebone design allows IT teams to customize processor, memory, and storage components to match specific workload requirements while maintaining consistency across hyperconverged infrastructure nodes.
High-Density Memory Support
With 32 DDR4 slots and support for up to 4 TB of memory, the HX220 M6 accommodates memory-intensive applications such as in-memory databases, virtualization hosts, and analytics platforms.
- DDR4-3200 speed
- 4 TB maximum capacity
- 32 DIMM slots
Enterprise Storage Connectivity
Integrated 12Gb/s SAS and SATA/600 controllers provide flexible storage options, supporting both high-performance SAS drives and cost-effective SATA drives in the same platform.
- 12Gb/s SAS bandwidth
- SATA/600 compatibility
- Ten expansion bays
Rack-Optimized Design
The 1U form factor minimizes rack space consumption while providing full server capabilities, making it ideal for data centers with limited physical footprint or edge locations where space is constrained.
- 1U height
- Standard 19" rack width
- Tool-less rail compatibility
Deployment / Use Cases
The HX220 M6 is purpose-built for hyperconverged infrastructure deployments, where compute, storage, and networking are consolidated into a single scalable node. Its dual-processor support and high memory capacity make it suitable for hosting virtual machines, containers, and software-defined storage applications in clustered environments.
Common deployment scenarios include Cisco HyperFlex Edge clusters for remote offices or branch locations, virtual desktop infrastructure (VDI) hosts, private cloud platforms, and mid-tier database servers. The 10 Gigabit Ethernet connectivity ensures seamless integration into high-speed data center networks, while the 1U design supports dense rack configurations for scalable growth.
Hyperconverged Infrastructure Node
Deploy as a building block for Cisco HyperFlex clusters, combining compute and storage resources into a unified management domain with automated provisioning and scalability.
Virtualization Host
Support multiple virtual machines with dual Xeon processors and large memory pools, ideal for VMware vSphere, Microsoft Hyper-V, or Kubernetes workloads.
Physical Profile
The chassis measures 1.70 inches in height, 16.90 inches in width, and 30 inches in depth, conforming to standard 1U rack dimensions. Its rack-mountable design includes tool-less rail kit compatibility for straightforward installation in 19-inch server racks. The compact footprint balances thermal management and serviceability, with front-accessible drive bays and rear I/O panel for convenient maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 16.90" (429.26 mm), 30" (762 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 16.90" (429.26 mm)
- Depth
- 30" (762 mm)
- Height
- 1U
Highlights
- Supports dual Intel Xeon Scalable processors (Platinum, Gold, Silver, Bronze)
- Intel C621A chipset provides enterprise platform foundation
- Up to 4 TB DDR4 SDRAM across 32 memory slots
- 12Gb/s SAS and SATA/600 storage controllers for flexible drive options
- 10 Gigabit Ethernet for high-speed network connectivity
- 1U rack-mountable form factor optimizes data center density
- Ten total expansion bays for storage and peripheral flexibility
- 120 V AC and 230 V AC dual-voltage power input
- Includes 2 x USB 3.0 ports and 1 x VGA port for local management
- Graphics memory capacity of 8 MB for base console output
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HX-E-220M6S |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Model | HX220 M6 |
| Product Name | HyperFlex HX220 M6 Edge Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
FAQ
What processors are compatible with the Cisco HyperFlex HX220 M6?
The HX220 M6 supports dual Intel Xeon Scalable processors, including the Platinum, Gold, Silver, and Bronze series. This compatibility allows you to select processors that match your performance and budget requirements, from high-core-count Platinum models for demanding workloads to efficient Bronze processors for cost-sensitive deployments.
How much memory can this server barebone system support?
The system supports up to 4 terabytes of DDR4 SDRAM across 32 memory slots. This massive memory capacity is achieved using DDR4-3200/PC4-25600 modules, enabling memory-intensive applications like virtualization, in-memory databases, and large-scale analytics to run efficiently without bottlenecks.
What storage interfaces are available on the HX220 M6?
Integrated storage controllers provide both 12Gb/s SAS and Serial ATA/600 interfaces. This dual-interface support allows you to mix high-performance SAS drives with cost-effective SATA drives in the same system, offering flexibility for tiered storage configurations or all-flash arrays depending on your performance requirements.
What networking capabilities does this server offer?
The HX220 M6 includes 10 Gigabit Ethernet connectivity, providing high-bandwidth networking suitable for clustered environments, storage networking, and data-intensive applications. This ensures rapid data transfer between nodes in hyperconverged deployments and minimizes network latency for virtualized workloads.
What is the form factor and rack compatibility?
This is a 1U rack-mountable server with dimensions of 1.70 inches high, 16.90 inches wide, and 30 inches deep. It fits standard 19-inch server racks and is compatible with tool-less rail kits for easy installation. The 1U height maximizes rack density while maintaining adequate cooling and serviceability.
What expansion and connectivity options are included?
The system provides ten total expansion bays for storage drives or peripherals, two USB 3.0 ports for local device connectivity, one VGA port for console output, and dual-voltage power input (120 V AC and 230 V AC). These options support flexible configuration for various deployment scenarios while maintaining essential management capabilities.
What processor or platform detail is listed?
This product uses the Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze processor for everyday performance and multitasking.
