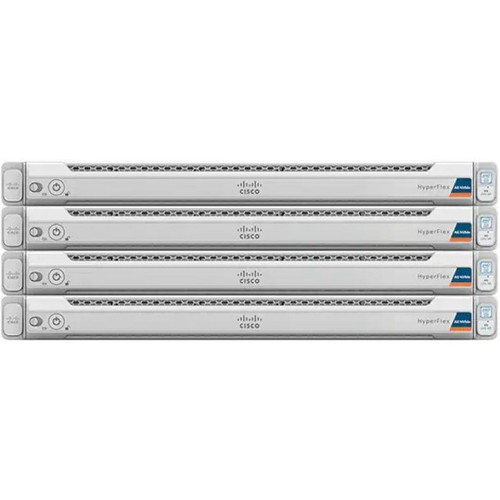

Cisco HXAF-E-220M6S HyperFlex HX220 M6 Edge Server Barebone System - 1U Rack-mountable - Dual Processor Support - Intel C621A Chipset - 4 TB DDR4-3200
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HX220 M6 Edge incorporates a robust I/O and storage architecture designed for modern data center requirements. The platform features 12Gb/s SAS and Serial ATA/600 controllers for high-speed storage connectivity, though hardware RAID is not included in the base configuration. Five PCI Express x16 slots and ten total expansion bays provide ample room for network adapters, storage controllers, or accelerator cards.
Networking capabilities include dual-speed Ethernet support for Gigabit and 10 Gigabit connectivity, ensuring flexible uplink options. Basic I/O includes two USB 3.0 ports and one VGA port for local management. The system accepts 120V or 230V AC input, supporting global power standards.
This section brings together practical product details such as Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This barebone system balances high-density form factor with extensive expansion potential, making it suitable for environments where rack space is at a premium but performance cannot be compromised.
Memory Scalability
With 32 DDR4 memory slots supporting up to 4 TB total capacity, the platform can be configured for memory-heavy workloads such as in-memory databases, large virtualization clusters, or analytics applications.
- DDR4-3200 speed
- 32 DIMM slots
- 4 TB maximum
Expansion Flexibility
Five PCIe x16 slots and ten expansion bays allow for significant customization with network, storage, or compute acceleration cards, adapting to evolving infrastructure needs.
- 5 PCIe x16 slots
- 10 expansion bays
- 12Gb/s SAS support
Enterprise Reliability
The 1U rack-mountable design includes dual-power capable architecture and is backed by a 3-year limited warranty with next-business-day onsite parts replacement service.
- 1U rack design
- 3-year warranty
- NBD onsite service
Deployment / Use Cases
The Cisco HyperFlex HX220 M6 Edge Barebone is engineered for environments requiring compact, high-performance server nodes. Its dual-processor support and substantial memory capacity make it well-suited for hyperconverged infrastructure, virtual desktop infrastructure (VDI) hosts, or private cloud compute nodes where density and performance per rack unit are critical.
In edge computing scenarios, the system's support for 10 Gigabit Ethernet and multiple expansion slots enables deployment as a network aggregation point or local processing node. The barebone approach allows IT teams to select specific processors, memory modules, and storage drives that match exact performance, capacity, and budget requirements.
Physical Profile
The server adopts a standard 1U rack-mountable form factor with dimensions of 1.70 inches high, 16.90 inches wide, and 30 inches deep. This compact footprint maximizes rack density while providing sufficient depth for full-length expansion cards and adequate airflow. The chassis weight of approximately 42.55 pounds reflects its robust construction with support for dual processors and extensive memory and storage configurations.
- Width
- 16.90" (429.26 mm)
- Depth
- 30" (762 mm)
- Height
- 1U
- Weight
- 42.55 lb (19300 g)
Highlights
- Supports dual Intel Xeon Platinum, Gold, Silver, or Bronze processors for scalable compute performance
- Intel C621A chipset provides enterprise-grade platform foundation with PCIe connectivity
- Up to 4 TB DDR4-3200 memory across 32 DIMM slots for memory-intensive workloads
- 1U rack-mountable form factor optimizes data center space utilization
- 12Gb/s SAS and SATA/600 controllers enable high-speed storage connectivity
- Five PCI Express x16 slots for extensive expansion flexibility
- Gigabit and 10 Gigabit Ethernet support for flexible network uplinks
- 3-year limited warranty with next-business-day onsite parts replacement service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXAF-E-220M6S |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HX220 M6 Edge |
| Product Model | HX220 M6 |
| Product Name | HyperFlex HX220 M6 Edge Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | 12Gb/s SAS,Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x16 Slots | 5 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
| Weight (Approximate) | 42.55 lb (19300 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media. |
FAQ
What processors are compatible with this Cisco HyperFlex barebone system?
The HX220 M6 Edge supports dual Intel Xeon processors from the Platinum, Gold, Silver, and Bronze families. This compatibility range allows selection from high-core-count Platinum models for maximum performance to more cost-effective Bronze options, providing flexibility for different workload and budget requirements.
How much memory can this server barebone support?
The system supports up to 4 terabytes of DDR4 SDRAM memory across 32 DIMM slots. It uses the DDR4-3200/PC4-25600 memory standard, offering high bandwidth for demanding applications. The substantial memory capacity makes it suitable for virtualization, database, and in-memory computing workloads.
What expansion capabilities does this 1U server offer?
The barebone includes five PCI Express x16 slots and ten total expansion bays, providing significant room for add-in cards such as network adapters, storage controllers, or GPU accelerators. This expansion flexibility allows customization for specific roles like network appliance, storage server, or compute node.
What storage interfaces are included in the base configuration?
The system features 12Gb/s SAS and Serial ATA/600 controllers for connecting storage drives. These interfaces support high-speed data transfer for enterprise storage arrays. Note that hardware RAID functionality is not included in the barebone; RAID would need to be implemented through add-in cards or software.
What networking options are available on this Cisco server?
The platform supports both Gigabit Ethernet and 10 Gigabit Ethernet technologies. This dual-speed capability allows deployment in standard Gigabit environments or higher-bandwidth 10GbE networks, making it suitable for backbone connections, storage networking, or high-throughput applications.
What warranty coverage comes with this barebone system?
Cisco provides a 3-year limited warranty that includes next-business-day onsite parts replacement service, available eight hours a day, five days a week. Additionally, there is a 90-day software warranty on media. This service level supports enterprise deployment with rapid hardware replacement.
What processor or platform detail is listed?
This product uses the Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze processor for everyday performance and multitasking.
