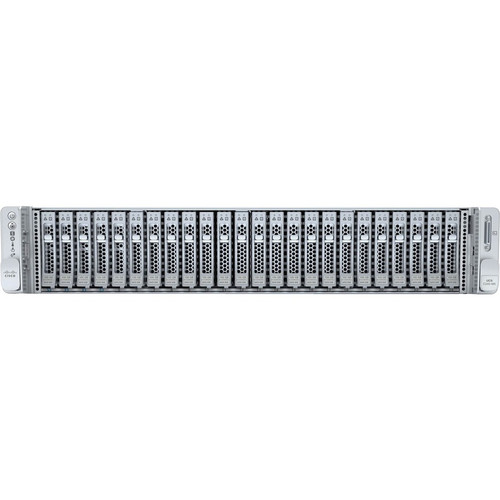

Cisco HXAF240C-M6SX HyperFlex HX240C M6 Barebone System - 2U Rack-mountable Server - Dual Xeon Processor Support - Intel C621A Chipset - Up to 3 TB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server barebone system supports dual Intel Xeon processors from the Gold, Silver, Bronze, and Platinum families, providing scalable compute performance for demanding enterprise applications. The Intel C621A chipset delivers robust platform capabilities including support for up to 3 TB of DDR4-3200 memory across 32 DIMM slots, with Intel Optane Memory Ready technology for accelerated storage performance.
Storage connectivity is handled by Serial ATA/600 and 12Gb/s SAS controllers, supporting both high-capacity and high-performance storage devices. The system includes 24 total expansion bays for storage drives and 8 expansion slots for additional I/O, networking, or accelerator cards. Network connectivity features both 10 Gigabit Ethernet and Gigabit Ethernet interfaces for high-speed data transfer in enterprise environments.
This section brings together practical product details such as Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HyperFlex HX240C M6 Barebone System delivers enterprise-grade infrastructure with the flexibility to customize components for specific workload requirements. Its hyperconverged architecture combines compute, storage, and networking resources into a single managed platform, simplifying deployment and operations while maintaining performance scalability.
Massive Memory Capacity
Support for up to 3 TB of DDR4-3200 memory across 32 DIMM slots enables memory-intensive applications and virtualization workloads to run efficiently with minimal performance bottlenecks.
- 32 memory slots
- DDR4-3200 speed
- Intel Optane ready
Extensive Expansion
24 expansion bays and 8 expansion slots provide ample room for storage drives, network adapters, and accelerator cards, allowing the system to scale with growing business needs.
- 24 drive bays
- 8 PCIe slots
- Flexible configuration
High-Speed Networking
10 Gigabit Ethernet connectivity ensures rapid data transfer between nodes and storage systems, reducing network latency in virtualized and clustered environments.
- 10GbE standard
- Gigabit Ethernet
- Low latency
Deployment / Use Cases
This barebone system is ideally suited for building HyperFlex nodes in hyperconverged infrastructure deployments where compute, storage, and networking resources need to be tightly integrated. Organizations can deploy multiple nodes to create scalable clusters for virtual desktop infrastructure, database applications, or private cloud environments.
The system's dual processor support and massive memory capacity make it particularly effective for virtualization platforms, in-memory databases, and data analytics workloads. The 2U rack-mountable form factor allows efficient use of data center space while providing sufficient expansion for storage-heavy applications like backup repositories, media streaming servers, or archival systems.
Hyperconverged Infrastructure
Deploy as HyperFlex nodes to create scalable clusters that combine compute and storage resources with unified management through Cisco HyperFlex software.
Virtualization Platform
Support multiple virtual machines with dual Xeon processors and up to 3 TB of memory for enterprise virtualization environments running VMware, Hyper-V, or KVM.
Physical Profile
The 2U rack-mountable chassis measures 3.42 inches in height, 16.90 inches in width, and 30 inches in depth, providing a compact footprint that maximizes data center rack space efficiency. The standard rack-mountable design includes proper ventilation and cable management features for reliable operation in enterprise server environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 16.90" (429.26 mm), 30" (762 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 16.90" (429.26 mm)
- Depth
- 30" (762 mm)
- Height
- 2U
Highlights
- 2U rack-mountable server barebone system for enterprise deployment
- Supports dual Intel Xeon Gold, Silver, Bronze, or Platinum processors
- Intel C621A chipset with 64-bit processing architecture
- Up to 3 TB DDR4-3200 memory across 32 DIMM slots
- Intel Optane Memory Ready for accelerated storage performance
- Serial ATA/600 and 12Gb/s SAS storage controllers
- 10 Gigabit Ethernet and Gigabit Ethernet networking
- 24 total expansion bays and 8 expansion slots
- 2 USB 3.0 ports and 1 VGA port for local management
- 120V/230V AC input voltage for global power compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXAF240C-M6SX |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Name | HyperFlex HX240C M6 Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600,12Gb/s SAS |
| Display & Graphics | |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 8 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
FAQ
What processors are compatible with this barebone system?
The Cisco HyperFlex HX240C M6 Barebone System supports dual Intel Xeon processors from the Gold, Silver, Bronze, and Platinum families. This provides flexibility to choose processors that match your performance requirements and budget, from entry-level Bronze processors to high-performance Platinum models for demanding enterprise workloads.
How much memory can this system support?
This barebone system supports up to 3 terabytes of DDR4 SDRAM memory using the DDR4-3200/PC4-25600 standard. The memory is distributed across 32 DIMM slots, allowing for substantial memory configurations that are ideal for virtualization, in-memory databases, and other memory-intensive applications.
What storage connectivity options are available?
The system includes Serial ATA/600 and 12Gb/s SAS controllers for storage connectivity. These controllers support both high-capacity SATA drives and high-performance SAS drives, providing flexibility for different storage requirements. The system is also Intel Optane Memory Ready, allowing for accelerated storage performance with compatible Intel Optane memory modules.
What networking capabilities does this system have?
This barebone system features both 10 Gigabit Ethernet and Gigabit Ethernet networking interfaces. The 10 Gigabit Ethernet capability provides high-speed connectivity ideal for data-intensive applications, virtual machine migration, and storage networking, while the Gigabit Ethernet offers standard network connectivity for management and less demanding traffic.
How many expansion bays and slots are available?
The system provides 24 total expansion bays for storage drives and 8 expansion slots for additional cards. This extensive expansion capability allows for significant storage capacity through drive bays and additional functionality through expansion cards such as network adapters, storage controllers, or accelerator cards for specialized workloads.
What are the physical dimensions and rack requirements?
This is a 2U rack-mountable system measuring 3.42 inches in height, 16.90 inches in width, and 30 inches in depth. The 2U form factor provides a balance between expansion capability and rack space efficiency, making it suitable for standard 19-inch server racks in data center environments with proper power and cooling infrastructure.
What processor or platform detail is listed?
This product uses the Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum processor for everyday performance and multitasking.
