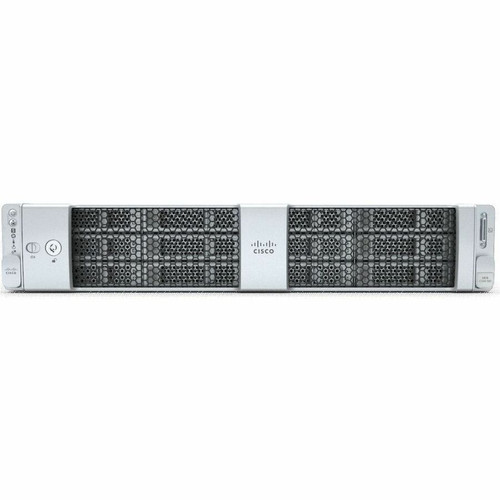

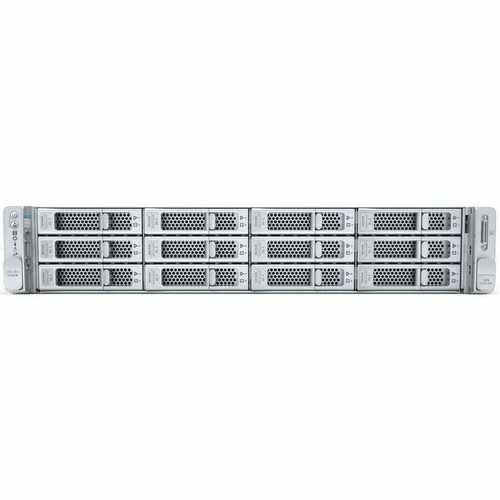

Cisco HX240C-M6SX HyperFlex Server Barebone System - 2U Rack-mountable - Dual Processor Support - Intel C621A Chip - 8 TB DDR4 SDRAM Max
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server barebone leverages a dual-processor architecture compatible with Intel Xeon Platinum, Gold, Silver, and Bronze CPU families. The Intel C621A chipset provides the foundation for high-speed memory subsystems, supporting up to 8 TB of DDR4-3200 SDRAM across 32 DIMM slots with Intel Optane Memory readiness.
Storage connectivity is handled through Serial ATA/600 and 12Gb/s SAS controllers, though hardware RAID functionality is not included. Network performance is optimized with dual 10 Gigabit Ethernet ports alongside standard Gigabit Ethernet, while basic graphics output is provided through an integrated Matrox controller with 512 MB of dedicated memory.
This section brings together practical product details such as Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HX240C-M6SX balances high-density compute potential with flexible storage expansion in a standardized 2U rack form factor. Its dual-processor support and massive memory capacity make it particularly suitable for consolidated virtual environments and data-intensive applications.
Scalable Memory Architecture
With 32 DDR4-3200 memory slots supporting up to 8 TB total capacity, this platform can handle memory-intensive workloads while maintaining future upgrade paths.
- Intel Optane Memory ready
- DDR4 SDRAM technology
- PC4-25600 memory standard
High-Density Storage Design
Twenty-four 2.5" drive bays provide ample space for SSD or HDD configurations, supporting both SATA and SAS interfaces for flexible storage deployment.
- Serial ATA/600 interface
- 12Gb/s SAS support
- Hot-swap capable design
Deployment / Use Cases
The Cisco HyperFlex HX240C-M6SX server barebone is engineered for enterprise data center environments where compute density, memory scalability, and storage flexibility are paramount. Its dual-processor architecture and extensive memory support make it ideal for virtualization hosts, database servers, and private cloud infrastructure.
In hyper-converged infrastructure deployments, this platform can serve as the compute node foundation, pairing with appropriate storage and networking components to create scalable HyperFlex clusters. The 2U form factor optimizes rack space utilization while providing sufficient cooling and power distribution for sustained high-performance operation.
Physical Profile
Designed for standard 19-inch rack enclosures, the HX240C-M6SX occupies 2U of vertical space with dimensions of 3.42" (86.87 mm) height, 18.90" (480.06 mm) width, and 30" (762 mm) depth. The rack-mountable form factor includes proper ventilation and cable management features for data center deployment. The compact 2U design maximizes compute density while maintaining serviceability through front-accessible drive bays and rear I/O panel access.
- Width
- 18.90" (480.06 mm)
- Depth
- 30" (762 mm)
- Height
- 2U
Highlights
- Dual processor support for Intel Xeon Platinum, Gold, Silver, or Bronze CPUs
- Massive 8 TB maximum DDR4 SDRAM capacity across 32 memory slots
- Intel C621A chipset with advanced memory and I/O capabilities
- 24 x 2.5" drive bays supporting SATA and SAS interfaces
- Dual 10 Gigabit Ethernet ports for high-speed network connectivity
- Windows Server 2019 Datacenter and Standard operating system support
- 2U rack-mountable form factor for data center deployment
- Three-year limited warranty with next business day onsite parts replacement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HX240C-M6SX |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HX240C M6 |
| Product Name | HyperFlex HX240C M6 Server Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600,12Gb/s SAS |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Manufacturer | Matrox |
| Graphics Memory Capacity | 512 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows Server 2019 Datacenter,Windows Server 2019 Standard |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 30" (762 mm) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year parts coverage. Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media. |
FAQ
What processors are compatible with this server barebone system?
The Cisco HyperFlex HX240C-M6SX supports dual Intel Xeon processors from the Platinum, Gold, Silver, and Bronze families. This compatibility provides flexibility for different performance and budget requirements while maintaining enterprise-grade reliability and feature support across the Xeon product line.
How much memory can this server barebone support?
This platform supports up to 8 terabytes of DDR4 SDRAM across 32 memory slots. The system uses DDR4-3200/PC4-25600 memory modules and is Intel Optane Memory ready, providing both substantial capacity and high-speed memory performance for demanding enterprise workloads.
What storage expansion options are available?
The barebone system includes 24 dedicated 2.5" drive bays that support both Serial ATA/600 and 12Gb/s SAS interfaces. While hardware RAID is not included, the storage controller provides high-speed connectivity for SSD or HDD configurations, making it suitable for various storage-intensive applications.
What networking capabilities does this server offer?
Network connectivity includes both 10 Gigabit Ethernet and standard Gigabit Ethernet ports. The dual 10GbE interfaces provide high-bandwidth connectivity for data center environments, while the Gigabit Ethernet offers compatibility with existing network infrastructure and management networks.
What operating systems are supported?
The system is compatible with Windows Server 2019 Datacenter and Windows Server 2019 Standard editions. This operating system support provides a stable platform for enterprise applications, virtualization, and server workloads with Microsoft's latest server features and security updates.
What is the warranty coverage for this product?
Cisco provides a three-year limited warranty that includes parts coverage with next business day onsite replacement available eight hours a day, five days a week. Additionally, there is a 90-day software warranty on media, offering comprehensive support for enterprise deployment scenarios.
What processor or platform detail is listed?
This product uses the Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze processor for everyday performance and multitasking.
