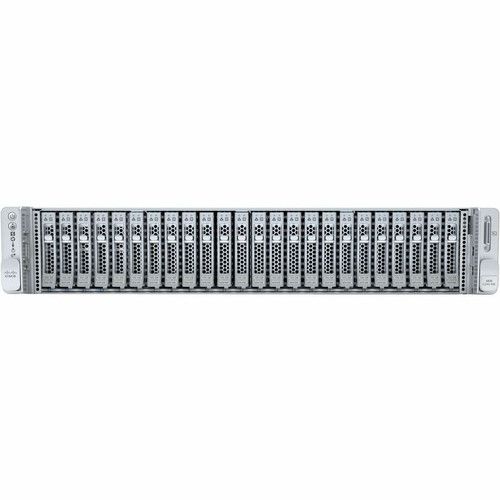

Cisco HXAF240C-M6SN HyperFlex HX240C M6 Server Barebone System - 2U Rack-mountable - Dual Xeon Support - Intel C621A Chipset - Up to 8 TB DDR4-3200
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HX240C M6 leverages a dual-processor architecture that accommodates Intel Xeon Scalable processors, including Platinum, Gold, Silver, and Bronze series. This 64-bit platform is optimized for parallel processing and virtualization, making it suitable for demanding server applications. The Intel C621A chipset provides the foundational logic for memory and I/O management, supporting PCIe lanes and advanced reliability features.
Memory configuration is a core strength, with 32 DDR4 SDRAM slots capable of housing up to 8 TB of DDR4-3200/PC4-25600 memory. The system is Intel Optane Memory Ready, enabling future memory tiering options. Storage control is handled by an NVMe controller, though hardware RAID is not supported. Network connectivity includes both 10 Gigabit Ethernet and Gigabit Ethernet interfaces, ensuring high-speed data transfer for enterprise networking.
This section brings together practical product details such as Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Cisco HyperFlex barebone system combines high-density design with enterprise-grade components to reduce data center footprint while maximizing compute and storage potential. The 2U form factor optimizes rack space utilization, allowing more processing power per unit of vertical real estate.
Scalable Performance
Support for dual Xeon processors across multiple tiers lets you right-size performance for workloads ranging from general-purpose servers to high-performance computing nodes.
- Xeon Platinum, Gold, Silver, Bronze compatibility
- 64-bit processing architecture
- Intel C621A chipset foundation
High-Capacity Memory Platform
With 32 memory slots supporting up to 8 TB of DDR4-3200, the system can handle memory-intensive applications like virtualization, databases, and in-memory analytics.
- 8 TB maximum memory capacity
- DDR4-3200/PC4-25600 memory standard
- Intel Optane Memory Ready
Enterprise Connectivity
Dual 10 Gigabit Ethernet ports provide high-bandwidth network connectivity, while 24 expansion bays offer flexibility for storage drives and additional network or storage adapters.
- 10 Gigabit Ethernet and Gigabit Ethernet
- 24 total expansion bays
- 2 USB 3.0 ports for peripheral connectivity
Deployment / Use Cases
The Cisco HyperFlex HX240C M6 Server Barebone System is engineered for deployment in standardized data center environments where rack density, compute scalability, and storage flexibility are priorities. Its compatibility with Windows Server 2019 makes it suitable for organizations standardizing on Microsoft server platforms.
This system serves as an ideal foundation for virtualization hosts, supporting multiple virtual machines with its high memory capacity and dual-processor architecture. The 24 expansion bays accommodate various drive configurations for storage-intensive applications like file servers, backup targets, or media repositories. The 10 Gigabit Ethernet connectivity ensures sufficient network bandwidth for clustered applications, database servers, or high-traffic web services.
Virtualization Host
Deploy as a VMware vSphere, Microsoft Hyper-V, or other hypervisor host, leveraging the dual Xeon support and high memory capacity for running multiple virtual machines efficiently.
Storage Server Platform
Utilize the 24 expansion bays to build high-capacity NAS or SAN solutions, with the NVMe controller providing fast storage access for frequently accessed data.
Physical Profile
The system occupies a standard 2U rack space with dimensions of 3.42" (86.87 mm) height, 18.90" (480.06 mm) width, and 30" (762 mm) depth. This compact form factor allows efficient use of rack space in data center environments. The rack-mountable design includes standard mounting hardware compatibility for easy integration into existing server racks. The chassis construction supports proper airflow for cooling high-performance components during continuous operation.
- Width
- 18.90" (480.06 mm)
- Depth
- 30" (762 mm)
- Height
- 2U
Highlights
- 2U rack-mountable chassis for high-density data center deployment
- Supports dual Intel Xeon processors (Platinum, Gold, Silver, Bronze)
- Intel C621A chipset provides enterprise platform foundation
- Up to 8 TB DDR4-3200 memory across 32 DIMM slots
- NVMe controller for high-performance storage connectivity
- 24 total expansion bays for storage and adapter flexibility
- 10 Gigabit Ethernet and Gigabit Ethernet networking
- Compatible with Windows Server 2019 Datacenter and Standard editions
- Intel Optane Memory Ready for future memory tiering options
- Dual USB 3.0 ports for peripheral connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXAF240C-M6SN |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Name | HyperFlex HX240C M6 Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | NVMe |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Memory Capacity | 512 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows Server 2019 Datacenter,Windows Server 2019 Standard |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 30" (762 mm) |
User Manual
FAQ
What processors are compatible with this Cisco HyperFlex barebone system?
The system supports dual Intel Xeon Scalable processors, including Xeon Platinum, Xeon Gold, Xeon Silver, and Xeon Bronze series. This provides flexibility to match processor performance to specific workload requirements, from entry-level server tasks to high-performance computing applications.
How much memory can this server barebone system support?
The HX240C M6 supports up to 8 TB of DDR4-3200 memory across 32 DIMM slots. This substantial memory capacity makes it suitable for memory-intensive applications like virtualization, in-memory databases, and large-scale data analytics workloads.
What storage controller does this system use?
The system features an NVMe controller that provides high-speed storage connectivity. While hardware RAID is not supported, the NVMe interface delivers fast data transfer rates and low latency for storage devices, optimizing performance for demanding workloads.
What networking capabilities does this server barebone offer?
The system includes both 10 Gigabit Ethernet and Gigabit Ethernet interfaces. The 10GbE connectivity provides high-bandwidth networking suitable for data center environments, clustered applications, and storage networks, while the Gigabit Ethernet offers compatibility with standard network infrastructure.
What operating systems are supported by this Cisco HyperFlex system?
The barebone system is compatible with Windows Server 2019 Datacenter and Windows Server 2019 Standard editions. This makes it suitable for organizations standardizing on Microsoft server platforms for applications, virtualization, and infrastructure services.
What is the form factor and rack mounting specification?
The system is designed as a 2U rack-mountable chassis with dimensions of 3.42" height, 18.90" width, and 30" depth. This standard 2U form factor allows efficient use of rack space in data center environments and includes compatibility with standard server rack mounting hardware.
What processor or platform detail is listed?
This product uses the Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze processor for everyday performance and multitasking.
