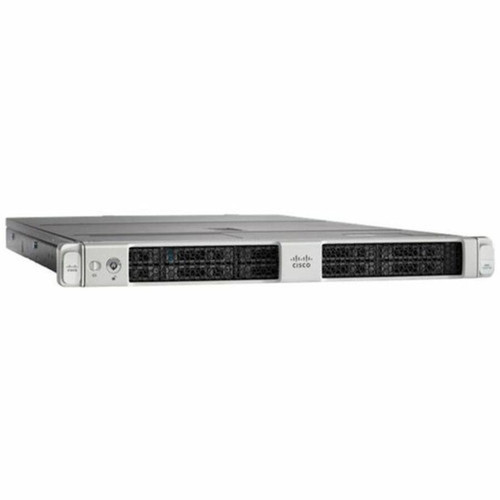

Cisco UCSC-C220-M7S UCS C220 M7 Barebone System - 1U Rackmount - Dual Xeon Support - 4TB DDR5-4800 - 10 Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The UCS C220 M7 delivers enterprise-grade server architecture in a compact 1U footprint. Its compute foundation is built for 64-bit processing, with the Intel C741 chipset providing robust platform management and I/O capabilities. Memory scalability reaches 4TB using DDR5 SDRAM modules running at DDR5-4800 (PC5-38400), ensuring high bandwidth for memory-intensive applications.
Storage flexibility is a key technical advantage, with integrated controllers for Serial ATA and Serial Attached SCSI (SAS) drives, plus hardware RAID support for configuring redundant or striped arrays. The system includes a Matrox graphics controller with 8MB of dedicated memory for basic display output, suitable for server console management.
Relevant factors for this section include Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system combines dense rackmount design with extensive customization potential, making it ideal for environments where space efficiency and tailored configurations are priorities.
High-Density Rack Deployment
The 1U form factor maximizes rack space utilization, allowing multiple units to be deployed in standard server cabinets while maintaining full server capabilities.
- Compact 1.70" height
- Standard 19" rack width
- Optimized for data center density
Future-Ready Memory Architecture
DDR5 memory support provides higher bandwidth and efficiency compared to previous generations, with capacity scaling to 4TB for demanding virtualized or database workloads.
- DDR5-4800 speed
- 4TB maximum capacity
- Improved power efficiency
Enterprise Storage Flexibility
Dual controller support (SATA and SAS) plus RAID capabilities enable mixed storage environments, from cost-effective SATA arrays to high-performance SAS configurations with redundancy.
- SAS and SATA support
- Hardware RAID
- 10 expansion bays
Deployment / Use Cases
The UCS C220 M7 barebone system serves as a versatile foundation for various server deployments, particularly where custom configuration and rack density are important considerations.
In virtualized environments, its dual processor support and large memory capacity make it suitable for hosting multiple virtual machines, while the 10 expansion bays allow for substantial storage allocation to VMs. For database servers, the combination of fast DDR5 memory and SAS storage with RAID support ensures responsive data access and reliability.
Virtualization Host
Configure with multiple Xeon processors and high-capacity DDR5 memory to run hypervisors like VMware ESXi or Microsoft Hyper-V, supporting numerous virtual machines in a compact 1U footprint.
Business Application Server
Deploy as a dedicated server for ERP, CRM, or file sharing applications, customizing storage with RAID-protected SAS drives for performance and SATA drives for archival capacity.
Physical Profile
The system's 1U rackmount design measures 1.70 inches in height, 16.90 inches in width, and 30 inches in depth, conforming to standard server rack dimensions. This compact profile allows efficient use of rack space in data centers or server rooms, while the included VGA port and dual USB 3.0 ports facilitate local management and peripheral connectivity during setup and maintenance.
- Width
- 16.90" (429.26 mm)
- Depth
- 30" (762 mm)
- Height
- 1U
Highlights
- 1U rackmount form factor for high-density server deployment
- Supports dual Intel Xeon processors (Gold, Silver, Bronze, Platinum)
- Up to 4TB DDR5-4800 memory for demanding workloads
- 10 total expansion bays for flexible storage configurations
- Serial ATA and SAS storage controllers with RAID support
- Gigabit Ethernet for network connectivity
- Dual USB 3.0 ports and VGA output for local management
- 120V/230V AC input voltage compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSC-C220-M7S |
| Brand Name | Cisco |
| Product Series | C220 M7 |
| Product Name | UCS C220 M7 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Controllers | |
| Controller Type | Serial ATA,Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Manufacturer | Matrox |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
User Manual
FAQ
What processors are compatible with this barebone system?
The Cisco UCS C220 M7 supports dual Intel Xeon processors from the Gold, Silver, Bronze, and Platinum series. This compatibility allows you to choose processors that match your performance requirements and budget, from entry-level Bronze models to high-performance Platinum CPUs for demanding server workloads.
How much memory can this system support?
This barebone system supports up to 4 terabytes (TB) of DDR5 SDRAM memory running at DDR5-4800 (PC5-38400) speed. This substantial memory capacity is suitable for memory-intensive applications like virtualization, database servers, and in-memory analytics, with DDR5 technology providing higher bandwidth than previous DDR4 generations.
What storage interfaces does this system include?
The system includes integrated controllers for both Serial ATA (SATA) and Serial Attached SCSI (SAS) storage interfaces. This dual-controller design allows you to use either SATA drives for cost-effective capacity or SAS drives for higher performance and reliability, with hardware RAID support available for configuring redundant or striped arrays.
How many expansion bays are available?
There are 10 total expansion bays in this barebone system. These bays accommodate storage drives and other expansion devices, providing flexibility to configure storage capacity and types according to your specific server requirements, whether for all-flash arrays, hybrid storage, or traditional hard drive configurations.
What are the physical dimensions of this rackmount system?
The system has a 1U rackmount form factor with dimensions of 1.70 inches in height, 16.90 inches in width, and 30 inches in depth. This compact size allows efficient use of rack space in standard 19-inch server cabinets, making it suitable for data center environments where rack density is important.
What networking and connectivity options are included?
The system features Gigabit Ethernet for network connectivity, two USB 3.0 ports for peripheral connections, one VGA port for display output, and supports both 120V and 230V AC input voltages. These connectivity options facilitate network integration, local management during setup, and compatibility with different power infrastructures in various geographic locations.
