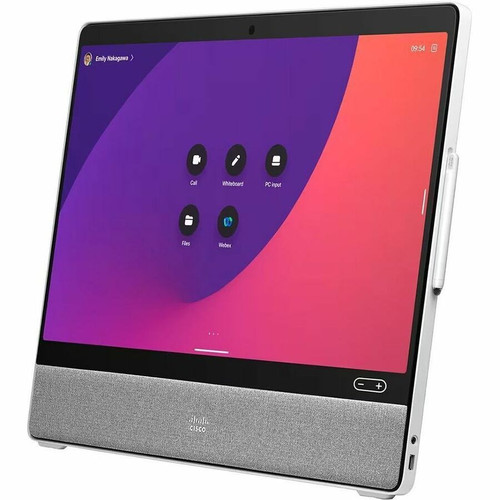

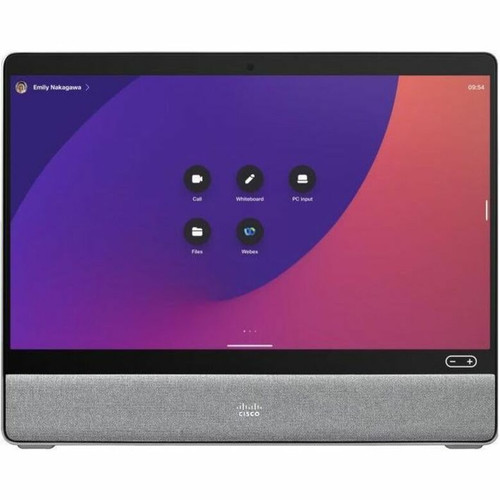

Cisco CS-DESKPRO-NR-K9 Webex Desk Pro TTC7-27 Video Conference Equipment - 12MP Camera - 4K Content - Gigabit Ethernet - RoomOS - Large Room
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Webex Desk Pro's imaging system is a 12-megapixel CMOS sensor with a 1/2.8" size, capturing live video at Full HD 1920 x 1080 resolution with a smooth 30 fps frame rate. For content sharing, the system supports 4K UHD resolution at 3840 x 2160, ensuring presentations and documents appear with exceptional clarity. Video encoding utilizes H.264 AVC and H.263 compression standards for efficient bandwidth utilization.
The audio subsystem features internal microphone and speaker arrays with support for multiple encoding formats including G.711, G.722, G.722.1, G.729, AAC-LD, and Opus. Advanced audio processing includes noise reduction and automatic gain control to maintain consistent audio quality regardless of room acoustics or participant positioning.
This section brings together practical product details such as ITU-T Recommendation, Features, Room Size, Camera Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Webex Desk Pro distinguishes itself through its integrated approach to meeting room technology. Unlike piecemeal solutions that require separate cameras, microphones, and processing units, this system combines all essential components into a single, professionally engineered package. This integration eliminates compatibility concerns and simplifies installation while ensuring optimal performance across all system elements.
Professional Imaging System
The 12MP camera with CMOS sensor delivers superior image quality for both participant video and content sharing, with dedicated processing for live video at 1080p and content at 4K resolution.
- 12-megapixel resolution
- CMOS image sensor
- 1/2.8" sensor size
- Dual-resolution processing
Comprehensive Connectivity
Multiple interface options ensure compatibility with existing room systems and easy integration of additional peripherals as needed for specific meeting requirements.
- HDMI input and output
- Gigabit Ethernet with RJ-45
- USB connectivity
- Wireless LAN support
Deployment / Use Cases
The Webex Desk Pro is specifically designed for boardroom and large conference room environments where reliable, high-quality video conferencing is essential. Its large room designation indicates appropriate performance for spaces typically accommodating 10 or more participants, with audio processing optimized to capture voices throughout the room effectively.
This system serves as the central collaboration hub for organizations conducting regular remote meetings with external partners, distributed teams, or clients. The Kensington lock slot provides physical security for permanent installations, while the comprehensive protocol support ensures compatibility with various conferencing platforms beyond the native Webex ecosystem.
This section brings together practical product details such as ITU-T Recommendation, Features, Room Size, Camera Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The Webex Desk Pro features a substantial yet streamlined physical design measuring 24.80" wide by 20.10" high with a depth of 3". This form factor provides sufficient internal volume for quality speaker components while maintaining a professional appearance appropriate for executive meeting spaces. The system weighs approximately 24.40 pounds, offering stability for tabletop placement without requiring specialized mounting hardware in most installations.
- Width
- 24.80" (629.92 mm)
- Depth
- 3" (76.20 mm)
- Height
- 20.10" (510.54 mm)
- Weight
- 24.40 lb (11067.65 g)
Highlights
- 12-megapixel CMOS camera with 1/2.8" sensor for high-resolution video
- 4K UHD content sharing capability alongside 1080p live video
- Internal microphone and speaker arrays with advanced audio processing
- Gigabit Ethernet connectivity with 10/100/1000Base-T support
- Wireless LAN capability for flexible network deployment
- HDMI input and output ports for external device integration
- RoomOS operating system with Webex native integration
- Large room designation suitable for boardroom environments
- Kensington lock slot for physical security
- Environmental compliance with RoHS and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CS-DESKPRO-NR-K9 |
| Brand Name | Cisco |
| Product Line | Webex Desk Pro |
| Product Model | TTC7-27 |
| Product Name | Webex Desk Pro TTC7-27 Video Conference Equipment |
| Product Type | Video Conference Equipment |
| Technical Information | |
| ITU-T Recommendation | H.323,SIP,H.235v3 |
| Features | Noise Reduction,Automatic Gain Control,Kensington Lock |
| Room Size | Large |
| Camera | |
| Camera Resolution | 12 Megapixel |
| Image Sensor Size | 1/2.8 |
| Image Sensor Type | CMOS |
| Video | |
| Graphics Modes (Live) | Full HD |
| Graphics Modes (Content) | 4K UHD |
| Video Signal Format | NTSC |
| Maximum Video Resolution (Live) | 1920 x 1080 |
| Maximum Video Resolution (Content) | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Video Encoding | H.264 AVC,H.263 |
| Audio | |
| Speaker Form Factor | Internal |
| Microphone Form Factor | Internal |
| Audio Encoding | G.711,G.722,G.722.1,G.729,AAC-LD,Opus |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Operating System | |
| Operating System Supported | RoomOS |
| Physical Characteristics | |
| Height | 20.10" (510.54 mm) |
| Width | 24.80" (629.92 mm) |
| Depth | 3" (76.20 mm) |
| Weight (Approximate) | 24.40 lb (11067.65 g) |
| Miscellaneous | |
| Application/Usage | Boardroom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 90 Day |
User Manual
FAQ
What camera resolution does the Webex Desk Pro provide?
The Cisco Webex Desk Pro features a 12-megapixel camera with a CMOS image sensor measuring 1/2.8". This high-resolution sensor captures live video at 1920 x 1080 Full HD resolution while supporting content sharing at 3840 x 2160 4K UHD resolution. The camera system delivers clear, detailed video suitable for professional boardroom environments.
What audio capabilities does this system include?
This video conference system integrates internal microphone and speaker arrays with support for multiple audio encoding formats including G.711, G.722, G.722.1, G.729, AAC-LD, and Opus. Advanced audio processing features include noise reduction and automatic gain control to ensure consistent audio quality throughout large meeting spaces.
What network connectivity options are available?
The Webex Desk Pro provides Gigabit Ethernet connectivity through 10/100/1000Base-T technology with an RJ-45 port, delivering up to 1000Mbps data transfer rates. The system also includes Wireless LAN capability for flexible deployment options where wired connectivity may be impractical or unavailable.
What video conferencing standards does it support?
This system supports ITU-T recommendations including H.323 and SIP protocols, along with H.235v3 for security. Video encoding utilizes H.264 AVC and H.263 compression standards, ensuring compatibility with a wide range of conferencing platforms and infrastructure while maintaining efficient bandwidth utilization.
What operating system does the Webex Desk Pro use?
The system runs on Cisco's RoomOS, a dedicated operating system optimized for meeting room collaboration. RoomOS provides native integration with Webex meetings while maintaining compatibility with standard conferencing protocols, offering a consistent, reliable platform for video communications.
What room size is this system designed for?
The Cisco Webex Desk Pro is designated for large room environments, typically suitable for boardrooms and conference rooms accommodating 10 or more participants. The system's audio processing and camera capabilities are optimized to perform effectively in these larger spaces where traditional conferencing equipment might struggle with coverage and clarity.
What camera resolution or video format is listed?
It features a display specification of 12 Megapixel, giving you clear visuals for work and media use.
What field of view or room-coverage detail is listed?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
