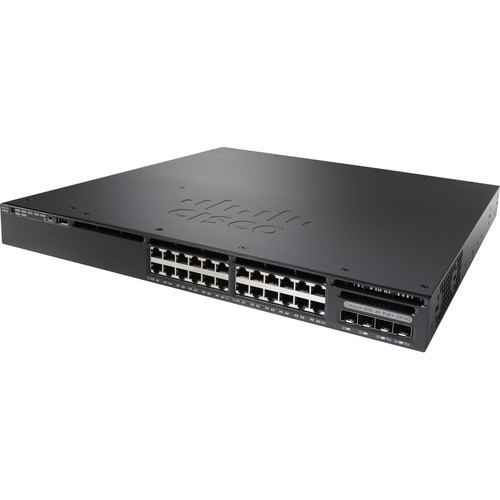

Cisco WS-C3650-24TS-L-RF WS-C3650-24TS Catalyst 3650 Managed Ethernet Switch - 24 Gigabit Ports - 4 SFP Slots - Layer 2 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Gigabit Ethernet speeds, supporting 10/100/1000Base-T for copper connections and 1000Base-X for fiber optics. The modular design includes four SFP expansion slots that are not shared with the main ports, allowing simultaneous use of all 24 network interfaces and uplink connections.
Managed functionality enables detailed control over network policies, VLAN configuration, and Quality of Service settings. The built-in power supply supports redundant power configurations for critical deployments, while the 1U rack-mount form factor optimizes data center space utilization.
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Catalyst 3650 series combines port density with enterprise-grade features in a compact footprint. This switch delivers reliable performance for demanding network environments while maintaining operational simplicity through comprehensive management tools.
High-Density Connectivity
Twenty-four Gigabit ports provide ample connectivity for workstations, servers, and network devices, reducing the need for additional switching hardware in medium-sized deployments.
- Supports up to 24 simultaneous connections
- Auto-negotiation for mixed-speed devices
- Backward compatible with Fast Ethernet
Flexible Expansion
Four dedicated SFP slots enable fiber uplinks or long-distance connections without sacrificing copper port availability, supporting diverse network topologies and future growth.
- Independent SFP slots (not shared)
- Supports various SFP transceivers
- Enables fiber backbone connections
Deployment / Use Cases
This switch is ideal for office networks, small to medium business data centers, and educational environments where reliable switching with management capabilities is required. The 1U form factor makes it suitable for standard rack installations in server rooms or network closets.
Common deployment scenarios include acting as a distribution switch in hierarchical network designs, providing connectivity for VoIP phone systems, or serving as the core switch for departmental networks. The refurbished condition makes it particularly valuable for budget-conscious organizations seeking enterprise-grade hardware.
Office Network Core
Connect workstations, printers, and servers with Gigabit speeds while maintaining separate VLANs for different departments or security zones through managed switching features.
Server Room Distribution
Provide high-density connectivity for server racks with the option for fiber uplinks to core switches or other network segments, utilizing the SFP slots for high-speed backbone connections.
Physical Profile
The switch measures 1.73" in height, 17.50" in width, and 17.63" in depth, fitting standard 19-inch rack systems as a 1U device. The rack-mountable design includes appropriate mounting hardware for secure installation in data center environments. The weight of 15.15 pounds reflects the robust construction typical of enterprise networking equipment.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 17.50" (444.50 mm), 17.63" (447.68 mm), 15.15 lb (6871.924406 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 17.63" (447.68 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 15.15 lb (6871.924406 g)
Highlights
- 24 Gigabit Ethernet ports for high-density connectivity
- 4 dedicated SFP expansion slots for fiber uplinks
- Layer 2 managed switching with VLAN support
- 1U rack-mountable form factor for space-efficient deployment
- Gigabit Ethernet technology (10/100/1000Base-T, 1000Base-X)
- Supports both twisted pair and optical fiber media
- Redundant power supply capability for critical applications
- Refurbished condition with lifetime warranty
- Environmentally friendly design and manufacturing
- Modular architecture with non-shared expansion slots
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3650-24TS-L-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 3650 |
| Product Model | WS-C3650-24TS |
| Product Name | Catalyst WS-C3650-24TS Ethernet Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 17.63" (447.68 mm) |
| Weight (Approximate) | 15.15 lb (6871.924406 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many devices can I connect directly to this switch?
The Cisco Catalyst WS-C3650-24TS provides 24 Gigabit Ethernet ports for direct device connections. This allows you to connect up to 24 computers, printers, servers, or other network devices simultaneously without requiring additional switches for basic connectivity needs.
What types of network cables does this switch support?
This switch supports both twisted pair copper cables (using standard RJ-45 connectors) and optical fiber cables (through SFP transceivers). The 24 main ports accept Category 5e or better copper cables, while the four SFP slots accommodate various fiber optic transceivers for different distance and speed requirements.
Can I use this switch for fiber optic connections?
Yes, the switch includes four dedicated SFP slots specifically designed for fiber optic connections. You can install compatible SFP transceivers to connect to fiber optic network segments, enabling longer distance connections or integration with existing fiber infrastructure.
What does 'Layer 2 managed' mean for this switch?
Layer 2 managed refers to the switch's ability to operate at the data link layer of the OSI model with configuration and monitoring capabilities. This includes features like VLAN creation, port security, traffic prioritization (QoS), and spanning tree protocol for network loop prevention, providing greater control over network traffic flow and security.
Is this switch suitable for rack mounting?
Yes, the switch is designed specifically for rack mounting with a standard 1U form factor. It includes appropriate mounting hardware and fits standard 19-inch rack systems commonly used in server rooms and data centers. The dimensions are optimized for efficient use of rack space while providing adequate ventilation.
What warranty comes with this refurbished switch?
This refurbished Cisco Catalyst switch comes with a lifetime warranty. Refurbished units undergo thorough testing and reconditioning to ensure they meet original performance specifications, and the lifetime warranty provides long-term protection for your investment in enterprise networking equipment.
