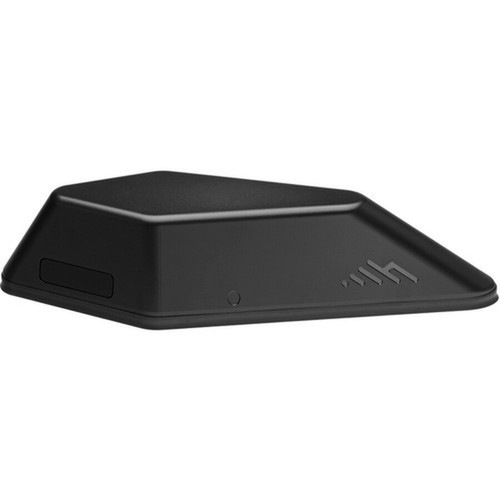

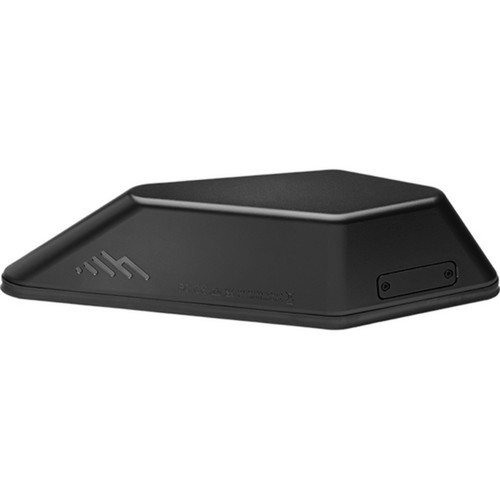

CradlePoint TBA5-2105-5GB-GA R2105 Wi-Fi 6 5G Ruggedized Router - Dual SIM - 2.5GbE - PoE - Vehicle/Cabinet Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This router operates on dual-band Wi-Fi 6 (IEEE 802.11ax) with ISM and UNII bands, covering 2.40 GHz and 5 GHz frequencies for optimized wireless performance. The cellular module supports 5G and legacy technologies, ensuring broad carrier compatibility and seamless failover between connections.
Network management features include VPN support for secure remote access and multi-SIM functionality with two Nano SIM slots. The integrated 2.5 Gigabit Ethernet port delivers high-speed wired connectivity, while Power over Ethernet (PoE) capability simplifies deployment by powering connected devices like IP cameras or access points directly through the network cable.
Relevant factors for this section include Wi-Fi Generation, Network Band, Broadband Transmission Technology, Wireless LAN Standard. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The R2105 excels in environments requiring resilient, high-performance networking without reliance on fixed infrastructure. Its ruggedized design and versatile mounting options make it ideal for transportation, remote sites, or industrial settings where connectivity must remain stable under challenging conditions.
Dual SIM Failover
Supports two Nano SIM cards for automatic cellular failover, ensuring continuous internet access by switching between carriers or plans if one connection drops, critical for mission-critical applications.
- Carrier redundancy
- Automatic switchover
- Nano SIM compatibility
Integrated PoE
The PoE-enabled RJ-45 port delivers both data and power to connected devices, reducing cabling complexity and enabling deployment of PoE-powered equipment like security cameras or VoIP phones in remote locations.
- Simplifies installation
- Reduces power outlets needed
- Supports IP cameras and sensors
Ruggedized Construction
Designed for vehicle and cabinet mounting with a compact, durable form factor, the R2105 withstands vibrations, temperature variations, and harsh environments common in mobile or industrial deployments.
- Vehicle mount ready
- Cabinet mount compatible
- Industrial-grade durability
Deployment / Use Cases
This router is tailored for scenarios where traditional networking solutions fall short. Its combination of cellular, Wi-Fi, and Ethernet connectivity, along with rugged hardware, supports a wide range of edge computing and IoT applications.
In transportation, the R2105 provides in-vehicle Wi-Fi for passenger entertainment, fleet telematics, or real-time surveillance systems. For remote industrial sites, it enables secure VPN connections back to corporate networks, facilitating SCADA monitoring, equipment diagnostics, or video surveillance without relying on local ISP infrastructure.
Mobile Command Centers
Deploy in emergency response vehicles, mobile clinics, or temporary offices to establish instant, secure networks with cellular backup, ensuring communication and data access during critical operations.
Industrial IoT Gateways
Serve as a connectivity hub for sensors, cameras, and control systems in manufacturing plants, oil fields, or agricultural sites, aggregating data over Wi-Fi or cellular for cloud analytics and remote management.
Physical Profile
The R2105 features a compact design measuring 15.20" wide, 4.53" deep, and 3.23" high (386 x 115 x 82 mm), with a weight of approximately 1.46 kg. Its form factor supports both vehicle and cabinet mounting, allowing flexible installation in tight spaces or moving environments. The ruggedized enclosure protects internal components from dust, shock, and vibration, making it suitable for long-term use in challenging conditions without compromising performance.
- Width
- 15.20" (386 mm)
- Depth
- 4.53" (115 mm)
- Height
- 3.23" (82 mm)
- Weight
- 1.46 kg
Highlights
- Wi-Fi 6 (IEEE 802.11ax) dual-band wireless for fast, efficient connectivity
- 5G cellular support with LTE Advanced Pro, UMTS, and HSPA+ compatibility
- Dual Nano SIM slots for automatic failover and carrier redundancy
- 2.5 Gigabit Ethernet port with Power over Ethernet (PoE) capability
- VPN support for secure remote access and encrypted data transmission
- Four internal antennas for robust wireless and cellular signal reception
- Ruggedized design suitable for vehicle or cabinet mounting
- Compact dimensions optimized for space-constrained installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | ERICSSON |
| Manufacturer Part Number | TBA5-2105-5GB-GA |
| Brand Name | CradlePoint |
| Product Series | R2100 |
| Product Model | R2105 |
| Product Name | R2100 Series 5G Ruggedized Router |
| Product Type | Modem/Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 6 |
| Network Band | Dual Band |
| Wireless Specifications | |
| Broadband Transmission Technology | Cellular,Ethernet |
| Wireless LAN Standard | IEEE 802.11ax |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Cellular Generation | 5G |
| Cellular Data Connectivity Technology | LTE Advanced Pro,UMTS,HSPA+ |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | Yes |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Nano |
| Physical Characteristics | |
| Form Factor | Vehicle Mount,Cabinet Mount |
| Height | 3.23" (82 mm) |
| Width | 15.20" (386 mm) |
| Depth | 4.53" (115 mm) |
| Weight (Approximate) | 1.46 kg |
User Manual
FAQ
What Wi-Fi standard does the CradlePoint R2105 support?
The R2105 supports Wi-Fi 6, also known as IEEE 802.11ax. This latest Wi-Fi generation offers improved efficiency, higher throughput, and better performance in congested environments compared to previous standards like Wi-Fi 5 (802.11ac). It operates on dual bands (2.4 GHz and 5 GHz) to optimize coverage and speed for connected devices.
Does this router support 5G cellular connectivity?
Yes, the R2105 includes 5G cellular capability alongside backward compatibility with LTE Advanced Pro, UMTS, and HSPA+ networks. This ensures high-speed mobile internet access in areas with 5G coverage while maintaining connectivity on older cellular technologies for broader geographic reach and reliability.
How many SIM cards can the R2105 accommodate?
It supports two Nano SIM cards, enabling multi-SIM functionality for automatic failover between cellular carriers or data plans. This dual SIM design provides redundancy, so if one SIM's connection fails, the router seamlessly switches to the other, minimizing downtime for critical applications in mobile or remote deployments.
What is the purpose of the PoE port on this router?
The Power over Ethernet (PoE) port delivers both data and electrical power over a single RJ-45 cable to connected devices like IP cameras, wireless access points, or VoIP phones. This simplifies installation by eliminating the need for separate power sources, reducing cabling complexity, and enabling deployment of network equipment in locations without easy access to electrical outlets.
Can the R2105 be mounted in vehicles?
Yes, it is designed for vehicle mounting, making it ideal for use in trucks, buses, emergency vehicles, or mobile offices. The ruggedized construction withstands vibrations, temperature extremes, and harsh conditions common in transportation environments, ensuring reliable performance while on the move.
What Ethernet speed does the R2105 support?
It features a 2.5 Gigabit Ethernet port, providing high-speed wired connectivity for local network devices or backhaul connections. This 2.5 GbE capability supports faster data transfers compared to standard Gigabit Ethernet, accommodating bandwidth-intensive applications like video streaming, large file transfers, or multiple concurrent users without bottlenecks.
