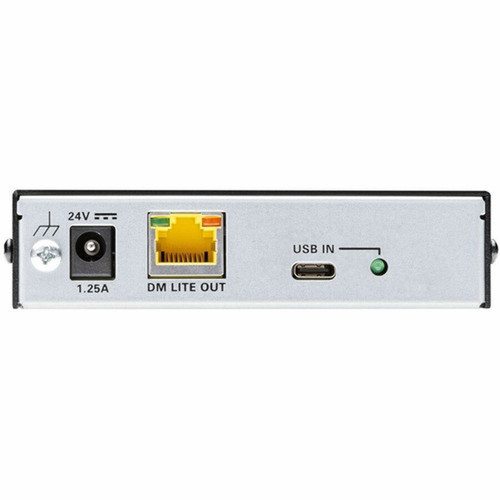

Crestron DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable - 230 ft (70104 mm) Range - 1 x Network (6511805)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wired
Maximum Operating Distance: 230 ft (70104 mm)
Graphics Modes: WQXGA,Full HD,WUXGA,4K,4K UHD,2K,UXGA,QWXGA
Supported Video Modes: 1080p
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Power over Ethernet (PoE): Yes
Color Family: Black
Product Color: Black
Transmitter Height: 4.13" (104.90 mm)
Transmitter Width: 4.18" (106.17 mm)
Transmitter Depth: 1.08" (27.43 mm)
Form Factor: Surface-mountable,Rail-mountable
Transmitter Weight (Approximate): 11.96 oz (339.06 g)
[custom-specifications]
| Specifications | |
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511805 |
| Manufacturer Website Address | http://www.crestron.com |
| Brand Name | Crestron |
| Product Line | DM Lite |
| Product Model | HD-TX-4KZ-111 |
| Product Name | DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230 ft (70104 mm) |
| Video | |
| Graphics Modes | WQXGA,Full HD,WUXGA,4K,4K UHD,2K,UXGA,QWXGA |
| Supported Video Modes | 1080p |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5e |
| Power Description | |
| Power over Ethernet (PoE) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 4.13" (104.90 mm) |
| Transmitter Width | 4.18" (106.17 mm) |
| Transmitter Depth | 1.08" (27.43 mm) |
| Form Factor | Surface-mountable,Rail-mountable |
| Transmitter Weight (Approximate) | 11.96 oz (339.06 g) |
