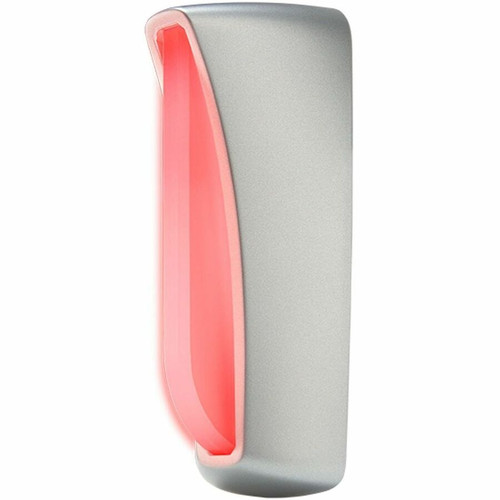

Crestron SIW-100 Room Availability Status Indicator - Wired Visual LED with Red/Green Lights - Wall/Window/Surface/Gang Box Mount - 24V DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Connectivity Technology, Alarm Type, Bulb/Tube Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Mounting Flexibility
The SIW-100 supports four distinct mounting configurations: wall mounting, window mounting, surface mounting, and gang box mounting. This versatility allows installers to choose the optimal placement based on room layout, visibility requirements, and existing infrastructure, ensuring the indicator is positioned for maximum effectiveness.
- Wall mount for permanent installations
- Window mount for glass door applications
- Surface mount for exposed mounting
- Gang box mount for flush integration
Visual Communication System
Utilizing energy-efficient LED technology, the indicator provides clear visual status updates through red and green lighting. The clear lens ensures optimal light transmission and visibility from various angles, while the wired connectivity ensures reliable operation without wireless interference concerns.
- Red/green LED status indication
- Clear lens for maximum visibility
- Wired connectivity for reliability
Key Product Advantages
The SIW-100 delivers reliable room status indication through a combination of robust construction, versatile installation options, and seamless Crestron ecosystem integration. Its compact footprint and multiple mounting configurations make it adaptable to diverse architectural environments while maintaining professional aesthetics.
Crestron Ecosystem Integration
Designed specifically for compatibility with Crestron touch screen systems, the SIW-100 integrates smoothly with TSS-7, TSS-10, TSW-760, TSW-760-NC, TSW-1060, and TSW-1060-NC series devices. This ensures unified control and monitoring capabilities within established Crestron environments.
Versatile Application Support
Suitable for room, hallway, office, and meeting room applications, the indicator helps organizations optimize space utilization by providing clear visual cues about room availability. This reduces scheduling conflicts and improves operational efficiency in busy professional settings.
Deployment / Use Cases
The Crestron SIW-100 is ideal for organizations implementing room scheduling systems or seeking to improve space management through visual status indicators. Its wired connectivity and 24V DC power requirements make it particularly suitable for commercial installations where reliability and integration with existing building systems are priorities.
Common deployment scenarios include corporate offices with shared meeting rooms, educational institutions with scheduled classrooms, healthcare facilities with consultation rooms, and hospitality venues with conference spaces. The indicator's compatibility with Crestron touch screens enables centralized management across multiple locations, supporting both small-scale implementations and enterprise-wide deployments.
Meeting Room Management
Install outside meeting rooms to provide immediate visual status updates, reducing interruptions and improving scheduling efficiency. The red/green indication clearly communicates whether a room is occupied or available without requiring digital displays or complex interfaces.
Educational Environments
Deploy in schools and universities to indicate classroom availability between scheduled sessions. The durable construction and straightforward installation support high-traffic environments while maintaining reliable operation throughout the academic day.
Physical Profile
With compact dimensions of 6.42 inches in height, 2.80 inches in width, and 2.17 inches in depth, the SIW-100 maintains a discreet profile while providing visible status indication. The approximately 1-pound weight ensures stable mounting across all supported configurations, and the clear lens maintains professional aesthetics suitable for corporate and institutional environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.42" (163 mm), 2.80" (71 mm), 2.17" (55 mm), 1 lb (453.59 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.80" (71 mm)
- Depth
- 2.17" (55 mm)
- Height
- 6.42" (163 mm)
- Weight
- 1 lb (453.59 g)
Highlights
- Wired connectivity for reliable operation without wireless interference
- Red and green LED visual status indication for clear room availability communication
- Four mounting options: wall, window, surface, and gang box installation
- 24V DC power input compatible with standard low-voltage systems
- Compatible with Crestron TSS-7, TSS-10, TSW-760, and TSW-1060 series touch screens
- Compact dimensions: 6.42" H x 2.80" W x 2.17" D (163 x 71 x 55 mm)
- Clear lens for optimal light transmission and visibility
- Suitable for room, hallway, office, and meeting room applications
- Approximately 1-pound weight for stable mounting
- Professional integration within Crestron control ecosystems
Specifications
| Specifications | |
|---|---|
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | SIW-100 |
| Brand Name | Crestron |
| Product Model | SIW-100 |
| Product Name | SIW-100 Room Availability Status Indicator, Wall Mount |
| Product Type | Light Indicator |
| Technical Information | |
| Connectivity Technology | Wired |
| Alarm Type | Visual |
| Bulb/Tube Type | LED |
| Light Color | Red,Green |
| Form Factor | Wall Mountable,Window Mount,Surface Mount,Gang Box Mount |
| Power Description | |
| Input Voltage | 24 V DC |
| Power Source | DC |
| Physical Characteristics | |
| Lens Color | Clear |
| Application/Usage | Room,Hallway,Office,Meeting Room |
| Height | 6.42" (163 mm) |
| Width | 2.80" (71 mm) |
| Depth | 2.17" (55 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Miscellaneous | |
| Compatibility | Crestron Touch Screens: TSS-7 Series TSS-10 Series TSW-760 Series TSW-760-NC Series TSW-1060 Series TSW-1060-NC Series |
User Manual
FAQ
What mounting options are available for the Crestron SIW-100?
The SIW-100 supports four distinct mounting configurations: wall mounting for permanent installations on vertical surfaces, window mounting for glass door applications, surface mounting for exposed mounting on various surfaces, and gang box mounting for flush integration with electrical boxes. This versatility allows installers to choose the optimal placement based on room layout and visibility requirements.
How does the SIW-100 indicate room availability status?
The indicator uses visual LED lighting to communicate room status. It features red and green lights that provide immediate at-a-glance status updates, with the clear lens ensuring optimal light transmission and visibility from various angles. This visual communication system helps streamline room scheduling without requiring digital displays or complex interfaces.
What power requirements does the SIW-100 have?
The SIW-100 operates on 24V DC power, making it compatible with standard low-voltage systems commonly used in commercial installations. This wired power connection ensures reliable operation without concerns about battery replacement or wireless interference, supporting continuous operation in professional environments.
Where is the SIW-100 typically installed?
The indicator is designed for installation in room, hallway, office, and meeting room applications. Its compact dimensions and versatile mounting options make it suitable for corporate offices, educational institutions, healthcare facilities, and hospitality venues where clear visual communication of space occupancy improves operational efficiency and reduces scheduling conflicts.
What are the physical dimensions of the SIW-100?
The SIW-100 measures 6.42 inches in height (163 mm), 2.80 inches in width (71 mm), and 2.17 inches in depth (55 mm). With an approximate weight of 1 pound (453.59 grams), it maintains a discreet profile while providing visible status indication, making it suitable for installation in various architectural environments without occupying excessive space.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
What form factor or physical profile is listed?
The listed physical configuration is Wall Mountable,Window Mount,Surface Mount,Gang Box Mount, which helps buyers judge placement, comfort, or installation fit in the intended environment.
