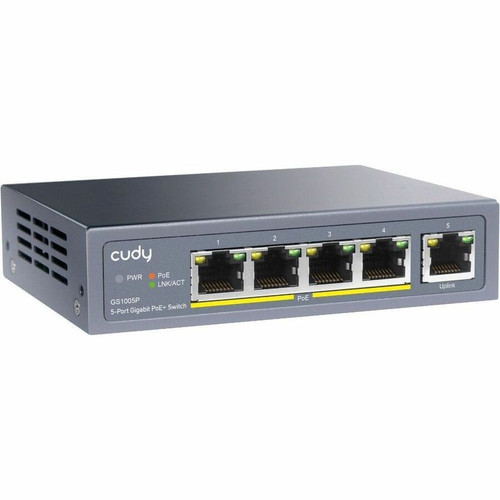

Cudy GS1005P Ethernet Switch - 5 Ports - Gigabit Ethernet - 10Base-T, 100Base-TX, 1000Base-T - 2 Layer Supported - 60 W PoE Budget - - (GS1005P)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- GS1005P Ethernet Switch
- Power Cord
- Installation Guide
- Mounting Kit
Features: Plug and Play,Fanless
Total Number of Network Ports: 5
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port,1 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 uplink Port
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10Base-T,100Base-TX,1000Base-T
Maximum Data Transfer Rate: 128 MB/s
Layer Supported: 2
Networking Standards: IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.3i,IEEE 802.3
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 60 W
Input Voltage: 48 V DC,57 V DC
Power Source: Power Adapter,DC
Product Color: Gray
Product Material: Metal
Form Factor: Rack-mountable,Desktop,Wall Mountable
Height: 1.10" (28 mm)
Width: 4.69" (119 mm)
Depth: 3.35" (85 mm)
Weight (Approximate): 9.21 oz (261 g)
Package Contents:
- 4× GbE with 802.3at/af Mode A PoE
- 1× Uplink GbE
- 65W Power Supply
- Desktop, Wall-Mount
- 119×85×28 mm (4.69×3.35×1.1")
[custom-specifications]
| Specifications | |
| Manufacturer | Shenzhen Cudy Technology Co., Ltd |
| Manufacturer Part Number | GS1005P |
| Manufacturer Website Address | http://www.cudytech.com |
| Brand Name | Cudy |
| Product Model | GS1005P |
| Product Name | GS1005P Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Plug and Play,Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port,1 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 uplink Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10Base-T,100Base-TX,1000Base-T |
| Maximum Data Transfer Rate | 128 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.3i,IEEE 802.3 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 60 W |
| Input Voltage | 48 V DC,57 V DC |
| Power Source | Power Adapter,DC |
| Physical Characteristics | |
| Product Color | Gray |
| Product Material | Metal |
| Form Factor | Rack-mountable,Desktop,Wall Mountable |
| Height | 1.10" (28 mm) |
| Width | 4.69" (119 mm) |
| Depth | 3.35" (85 mm) |
| Weight (Approximate) | 9.21 oz (261 g) |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf3
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
