CyberPower PDU24005 Metered Auto Transfer Switch PDU - Single Phase 20A 200-240V - 10 Outlets - 1U Rackmount - LCD Display - 3YR Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This metered ATS PDU operates on single-phase power with input and output voltages rated at 230V AC, supporting a working range of 200-240V AC. The 20A input capacity provides substantial power distribution capability for rack-mounted equipment, with protection mechanisms including overload protection and circuit breakers to safeguard connected devices.
Network connectivity through the RJ-45 port enables remote monitoring and management capabilities, while the LCD display offers local visibility into power metrics and system status. The unit maintains stable operation across a temperature range of 32°F to 113°F (0°C to 45°C), ensuring reliability in controlled data center environments.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PDU24005 combines metered power monitoring with auto transfer switch functionality in a compact 1U rackmount form factor, providing both visibility and redundancy in power distribution. The LCD display delivers real-time power metrics without requiring network connectivity, while the RJ-45 port enables integration into broader management systems for centralized oversight.
Intelligent Power Monitoring
The integrated LCD display provides immediate visibility into current, voltage, and power consumption metrics, enabling proactive capacity planning and troubleshooting without external monitoring tools.
- Real-time power metrics
- Local display visibility
- No network dependency for basic monitoring
Enhanced Power Protection
Multiple protection layers including overload protection and circuit breakers safeguard connected equipment, while the auto transfer switch maintains power continuity during source transitions.
- Auto transfer switch for redundancy
- Overload protection
- Circuit breaker protection
Secure Installation
Cord retention trays and locking receptacles ensure power connections remain secure in vibration-prone environments, while the 1U horizontal design optimizes rack space utilization.
- Cord retention system
- Locking IEC receptacles
- Space-efficient 1U profile
Deployment / Use Cases
The CyberPower PDU24005 is engineered for deployment in data center racks and network closets where reliable power distribution with monitoring capabilities is essential. The auto transfer switch functionality makes it particularly valuable for environments with redundant power sources, ensuring continuous operation during power source transitions.
This PDU supports mixed equipment environments through its combination of eight IEC C13 outlets for standard servers and networking gear, plus two IEC C19 outlets for higher-power devices. The 10-foot power cord provides flexibility in rack placement, while the horizontal 1U form factor integrates seamlessly into standard 19-inch rack enclosures.
Data Center Rack Power Distribution
Ideal for server racks requiring both power distribution and monitoring, with the auto transfer switch providing redundancy for critical infrastructure.
- Server rack power management
- Redundant power source support
- Mixed equipment compatibility
Network Closet Infrastructure
Supports networking equipment with reliable power distribution and monitoring capabilities in space-constrained network closet environments.
- Networking gear power
- Space-efficient 1U design
- Remote management capability
Physical Profile

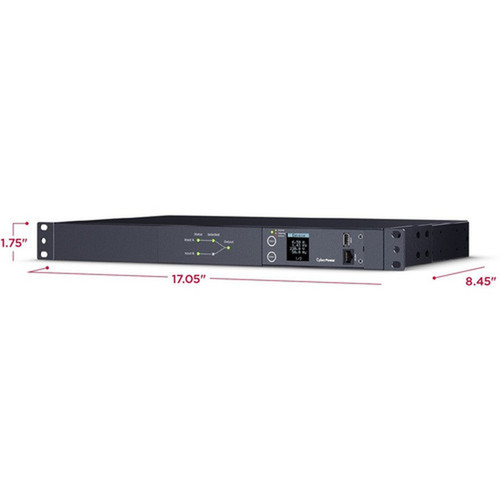

Constructed from durable metal with a black finish, this PDU features a horizontal 1U rackmount design measuring 17.05" wide, 8.46" deep, and 1.73" high (433 x 215 x 44 mm). The compact form factor maximizes rack space efficiency while providing ten outlets in a single unit. Weighing approximately 7.61 lb (3450 g), the unit includes mounting brackets and hardware for secure rack installation.
- Width
- 17.05" (433 mm)
- Depth
- 8.46" (215 mm)
- Height
- 1U
- Weight
- 7.61 lb (3450 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment and operation of the PDU24005 Metered Auto Transfer Switch.
Highlights
- Metered Auto Transfer Switch PDU with LCD display for real-time power monitoring
- Single-phase 20A input capacity with 200-240V AC operating range

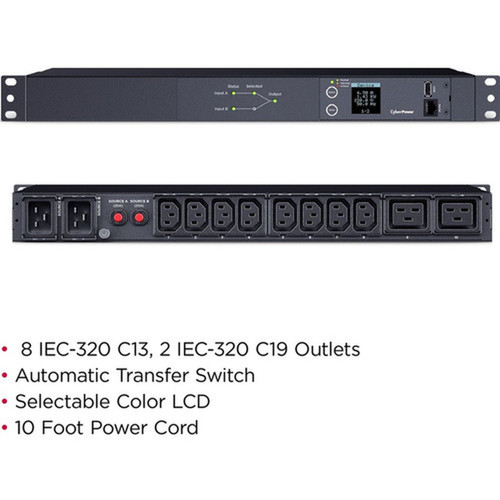

- Ten IEC outlets: eight C13 and two C19 for mixed equipment support
- 1U horizontal rackmount design with 17.05" width for standard 19" racks
- Auto transfer switch provides redundant power source support
- Overload protection and circuit breakers safeguard connected equipment
- Network RJ-45 port enables remote management capabilities
- Includes cord retention system and mounting hardware for secure installation
- UL listed and RoHS compliant for safety and environmental standards
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU24005 |
| Brand Name | CyberPower |
| Product Model | PDU24005 |
| Product Name | 24-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered Auto Transfer Switch |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Detail | 2 x IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13,2 x IEC 60320 C19 |
| Protection Type | Overload Protection,Circuit Breaker |
| Locking Receptacles | Cord Retention Tray,IEC 60320 C13,IEC 60320 C19 |
| Features | LCD Display,LED Status Indicator |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 20 A |
| Input Frequency | 60 Hz |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.73" (44 mm) |
| Width | 17.05" (433 mm) |
| Depth | 8.46" (215 mm) |
| Weight (Approximate) | 7.61 lb (3450 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| Miscellaneous | |
| Package Contents | ATS PDU24005 10-Outlets PDU User's Manual Cord Retention Tray Mounting Brackets Cable Ties Screw Kit Power Cord Serial Cable |
| Application/Usage | Data Center,Network Closet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UL Listed | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of PDU is the CyberPower PDU24005?
The PDU24005 is a Metered Auto Transfer Switch Power Distribution Unit. This means it provides both power distribution and monitoring capabilities through an integrated LCD display, plus automatic switching between primary and secondary power sources to maintain uptime during power source transitions.
What voltage range does this PDU support?
The PDU24005 operates at 230V AC nominal voltage with a working range of 200-240V AC for both input and output. This voltage range is standard for single-phase power distribution in data center and network closet environments, compatible with typical server and networking equipment power requirements.
How many outlets does this PDU provide and what types?
This PDU provides ten IEC outlets: eight IEC 60320 C13 outlets for standard equipment and two IEC 60320 C19 outlets for higher-power devices. The C13 outlets support typical servers and networking gear, while the C19 outlets accommodate equipment with higher power demands, offering flexibility for mixed equipment environments.
What rack space does the PDU24005 require?
The PDU24005 occupies 1U of rack height in a horizontal mounting orientation. Its dimensions are 17.05" wide, 8.46" deep, and 1.73" high (433 x 215 x 44 mm), designed to fit standard 19-inch rack enclosures. The compact 1U form factor maximizes rack space efficiency while providing ten outlets.
What protection features does this PDU include?
The PDU24005 includes multiple protection layers: overload protection to prevent damage from excessive current draw, circuit breakers for electrical safety, and cord retention trays with locking receptacles to secure power connections. These features work together to safeguard both the PDU and connected equipment in demanding environments.
What monitoring capabilities does the PDU24005 offer?
Monitoring capabilities include an integrated LCD display for local viewing of power metrics such as current, voltage, and consumption, plus an RJ-45 network port for remote management integration. The LCD provides real-time visibility without network dependency, while the network port enables centralized monitoring through management systems.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
