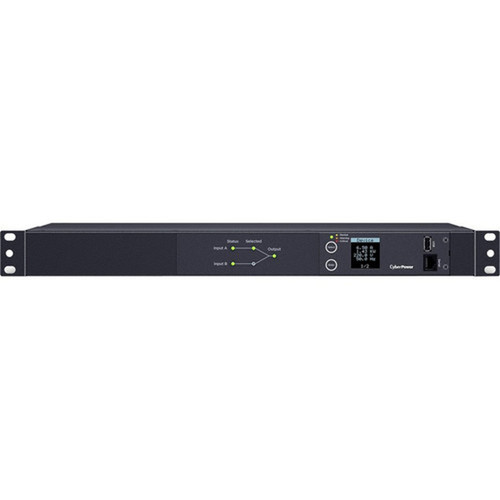

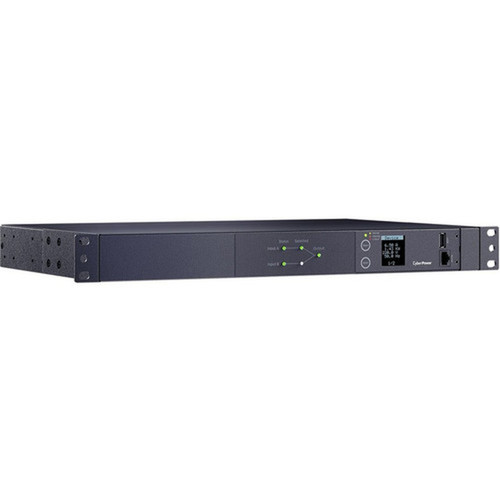

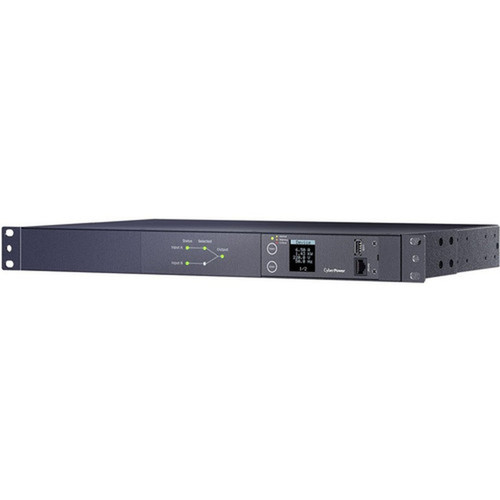

CyberPower PDU24006 Metered ATS PDU - Single Phase 200-240V 20A - 10 Outlets - 8 C13 + 2 C19 - 1U Rackmount - 10 ft Cord - LCD Display
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This metered ATS PDU operates on a single-phase power system with an input voltage range of 200-240V AC and a fixed 60 Hz frequency. The output maintains 230V AC across the same voltage range, ensuring consistent power delivery to connected equipment. The 20A input current supports robust power distribution, with derating to 16A for continuous operation under specific conditions.
The outlet array includes eight IEC 60320 C13 receptacles and two IEC 60320 C19 receptacles, catering to a mix of standard and high-power devices. The unit features a black metal housing with horizontal mounting orientation, designed for seamless integration into standard 19-inch racks. Environmental resilience is confirmed with an operating temperature range of 32°F to 113°F (0°C to 45°C) and compliance with RoHS environmental standards.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDU24006 combines reliable power distribution with advanced monitoring capabilities, making it an essential component for modern IT infrastructure. Its metered design allows administrators to track power usage at the outlet level, enabling proactive load balancing and capacity planning. The Automatic Transfer Switch functionality ensures uninterrupted power by seamlessly switching between sources during outages or maintenance.
Real-Time Power Monitoring
The integrated LCD display provides instant visibility into voltage, current, and power consumption, helping to prevent overloads and optimize energy efficiency.
- Voltage and current readouts
- Load percentage display
- Cumulative energy tracking
Secure Connectivity
Cord retention trays lock IEC connectors in place, preventing accidental disconnections in vibration-prone environments like data centers.
- Locking receptacle design
- Strain relief for cables
- Reduced downtime risk
Remote Management Ready
The built-in RJ-45 network port enables integration with power management software, allowing for centralized control and alerts from any location.
- SNMP compatibility
- Web interface access
- Email alert capabilities
Deployment / Use Cases
This PDU is purpose-built for environments where power reliability and monitoring are critical. Its 1U rackmount form factor and horizontal orientation make it ideal for standard server racks in data centers, where space is at a premium and efficient power distribution is mandatory. The combination of C13 and C19 outlets supports a wide range of equipment, from servers and switches to high-power storage arrays.
Network closets and telecom rooms benefit from the PDU24006's metered capabilities, allowing IT staff to monitor power draw without physical access. The unit's robust metal construction and wide operating temperature range ensure reliable performance in both climate-controlled and edge computing environments. The 10-foot power cord provides flexibility in rack placement, while the dual NEMA L6-20P plugs support redundant power source configurations for high-availability setups.
Data Center Power Distribution
Distribute and monitor power to rack-mounted servers, network switches, and storage devices with precise load management and remote oversight.
Network Infrastructure Support
Provide reliable power to networking equipment in closets or remote sites, with the ability to track consumption and receive alerts on power events.
Physical Profile
The PDU24006 features a compact black metal chassis measuring 1.75 inches in height, 17.05 inches in width, and 8.45 inches in depth, occupying a single rack unit (1U) of vertical space. Its horizontal mounting orientation and standard rack-mountable design ensure easy installation in 19-inch server racks. The unit weighs approximately 11 pounds, providing a solid, stable presence in the rack without excessive weight burden.
- Width
- 17.05" (433.10 mm)
- Depth
- 8.45" (214.60 mm)
- Height
- 1U
- Weight
- 11 lb (4990 g)
- Length
- 10 ft (3.05 m)
Highlights
- Metered ATS PDU with LCD display for real-time power monitoring
- Single-phase 200-240V AC input at 20A with 230V output
- 10 total outlets: 8 IEC C13 and 2 IEC C19 for versatile connectivity
- 1U rackmount design with horizontal orientation for space efficiency
- Network-enabled via RJ-45 port for remote management and alerts
- Cord retention tray secures IEC connections to prevent dislodging
- 10-foot power cord with dual NEMA L6-20P plugs for flexible deployment
- UL Listed and RoHS compliant with 3-year limited warranty
- Operating temperature range of 32°F to 113°F (0°C to 45°C)
- Black metal construction for durability in data center environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU24006 |
| Brand Name | CyberPower |
| Product Series | Metered ATS PDU |
| Product Model | PDU24006 |
| Product Name | PDU24006 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-20P |
| Plug/Connector Detail | 2 x NEMA L6-20P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13,2 x IEC 60320 C19 |
| Locking Receptacles | Cord Retention Tray |
| Features | LCD Display,LED Status Indicator |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 20 A |
| Input Frequency | 60 Hz |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.75" (44.50 mm) |
| Width | 17.05" (433.10 mm) |
| Depth | 8.45" (214.60 mm) |
| Weight (Approximate) | 11 lb (4990 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| Miscellaneous | |
| Application/Usage | Data Center,Network Closet |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UL Listed | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the purpose of the Automatic Transfer Switch (ATS) in this PDU?
The Automatic Transfer Switch allows the PDU24006 to seamlessly switch between two power sources if one fails or requires maintenance. This ensures continuous power delivery to connected equipment, minimizing downtime in critical environments like data centers. The ATS functionality is particularly valuable for high-availability setups where power redundancy is essential for operational continuity.
How many devices can I connect to this PDU, and what types of plugs does it support?
The PDU24006 provides ten outlets: eight IEC 60320 C13 receptacles and two IEC 60320 C19 receptacles. This configuration supports a mix of standard IT equipment (like servers and switches using C13 plugs) and higher-power devices (such as some UPS units or power supplies using C19 plugs). The total connected load must not exceed the PDU's 20A input capacity, with derating to 16A for continuous operation.
Can I monitor power usage remotely with this PDU?
Yes, the PDU24006 includes an RJ-45 network port that enables remote monitoring and management. When connected to your network, you can access power metrics like voltage, current, and consumption through a web interface or compatible power management software. This allows for centralized oversight, alert configuration, and historical data tracking without physical access to the rack.
What rack space does this PDU require, and how is it mounted?
This PDU occupies one rack unit (1U) of vertical space and is designed for horizontal mounting in standard 19-inch server racks. Its dimensions are 1.75 inches high, 17.05 inches wide, and 8.45 inches deep. The horizontal orientation ensures efficient use of rack depth, while the metal construction provides stability. Installation typically involves securing the unit with front or rear rack screws.
What input power connection does this PDU use, and how long is the cord?
The PDU24006 comes with a 10-foot (3.05-meter) power cord that terminates in two NEMA L6-20P plugs. These plugs are designed for 200-240V AC circuits and provide a secure, locking connection. The dual-plug configuration supports connection to redundant power sources or different circuits, enhancing reliability. The cord length offers flexibility in rack placement relative to power outlets.
What warranty and safety certifications apply to this PDU?
CyberPower backs the PDU24006 with a 3-year limited warranty, covering defects in materials and workmanship. The unit is UL Listed, indicating it meets rigorous safety standards for electrical equipment in North America. It also complies with the Restriction of Hazardous Substances (RoHS) directive, ensuring environmentally responsible manufacturing with reduced hazardous materials.
