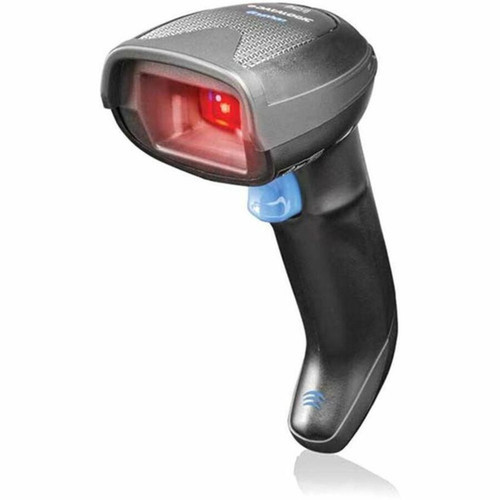

Datalogic Gryphon GBT4500 Barcode Scanner - Wireless Connectivity - 1D, 2D - Laser - Imager - Omni-directional - Bluetooth, Radio - - (GBT4500-BK-DGM-WLC)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Dot Code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Digimarc Barcodes
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D / Linear Codes:
2D Codes:
Postal Codes:
Stacked Codes:
Digital Watermarking:
Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 35 in/s (889 mm/s)
Image Formats: BMP,JPEG,TIFF
Maximum Ambient Light: 100000 lux
Drop Specification:
Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Bluetooth: Yes
Radio Frequency: Yes
Input Current: 330 mA
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3250 mAh
Operating Temperature: 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Handheld
Color Family: Black
Product Color: Black
Ingress Protection (IP) Rating: IP52
Application/Usage: Light/Clean Manufacturing,Retail,Healthcare,Transportation,Commercial Service
Limited Warranty: 3 Year
- With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GBT4500-BK-DGM-WLC |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Gryphon |
| Product Model | GBT4500 |
| Product Name | Gryphon GBT4500 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D / Linear Codes:
2D Codes:
Postal Codes:
Stacked Codes:
Digital Watermarking:
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | BMP,JPEG,TIFF |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | Red |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Power Description | |
| Input Current | 330 mA |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3250 mAh |
| Environmental Conditions | |
| Operating Temperature | 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Light/Clean Manufacturing,Retail,Healthcare,Transportation,Commercial Service |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf2
User-Manual
Additional-pdf1
[/custom-user-manual]
