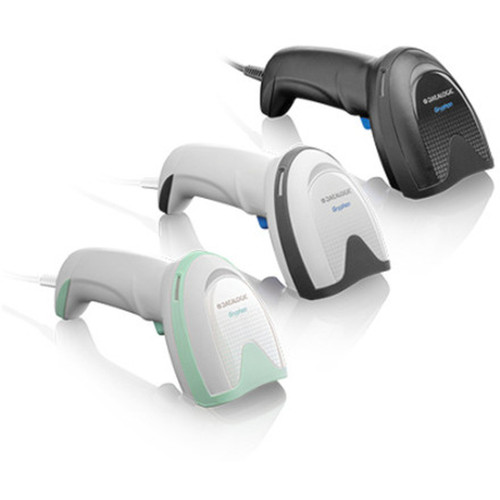

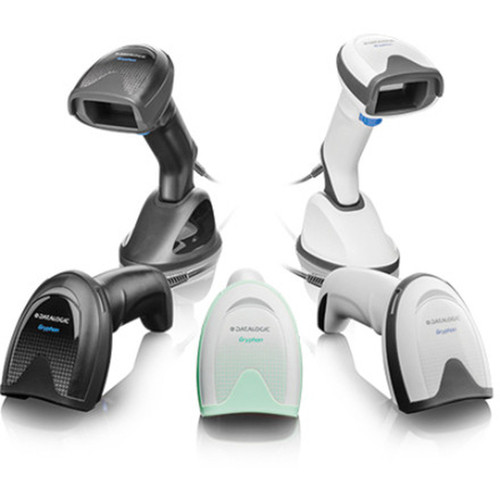

Datalogic GD4520-BK-USB Gryphon I Barcode Scanner - Cable USB - 1D/2D Laser Imager - Omni-directional - IP52 Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GD4520 employs a laser-based imager sensor that captures barcode data at 1280 x 800 resolution, supporting grayscale image capture in JPEG, TIFF, and BMP formats. Its omni-directional scan pattern provides 65° reading angles for skew and pitch, with full 360° roll capability, allowing flexible scanning orientations without precise alignment.
The scanner maintains reliable performance across challenging conditions, operating in temperatures from 32°F to 122°F (0°C to 50°C) and handling motion tolerance up to 35 inches per second (889 mm/s). With 16kV air electrostatic discharge protection and operation in ambient light up to 100,000 lux, the GD4520 maintains consistent scanning accuracy in diverse environmental settings.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Gryphon I GD4520 combines advanced scanning technology with practical durability features that deliver reliable performance in high-volume scanning environments. Its comprehensive symbology support and rugged construction make it a versatile solution for organizations requiring consistent barcode data capture across multiple applications.
Comprehensive Symbology Support
Automatically discriminates all standard 1D codes including GS1 DataBar linear codes, plus extensive 2D support for Aztec Code, Data Matrix, MaxiCode, QR Code, PDF417, and postal codes from multiple countries including Digimarc digital watermarking capabilities.
- Auto-discrimination of 1D codes
- Wide 2D code compatibility
- International postal code support
Rugged Industrial Design
Engineered to withstand repeated drops from 1.8 meters onto concrete surfaces with IP52 ingress protection against dust and water splashes. The ergonomic handheld form factor includes notification LED and audible beep feedback for operational confirmation.
- Drop-resistant construction
- IP52 environmental protection
- Ergonomic handheld design
Deployment / Use Cases
The GD4520's combination of scanning versatility, connectivity options, and environmental durability makes it suitable for numerous commercial and industrial applications. Its cable-connected USB interface provides reliable direct association with fixed workstations while maintaining scanning performance across diverse operating conditions.
In retail environments, the scanner handles high-volume item scanning at point-of-sale with quick omni-directional reading of both 1D and 2D barcodes. Healthcare facilities benefit from its ability to capture medication barcodes, patient wristbands, and inventory labels in clinical settings. Light manufacturing and transportation operations utilize its rugged design for scanning parts, shipments, and documentation in warehouse and logistics environments.
Physical Profile

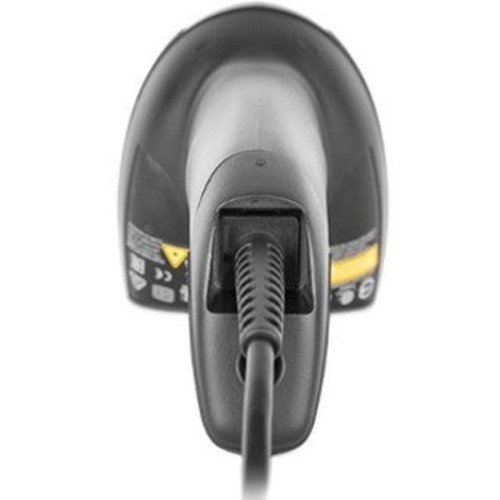

The GD4520 features a compact handheld form factor with black finish, weighing just 5.68 ounces (161 grams) for comfortable extended use. Its ergonomic design incorporates intuitive trigger placement and balanced weight distribution, while the integrated cable management ensures reliable USB connectivity without cable strain during scanning operations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.68 oz (161 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.68 oz (161 g)
Highlights
- Laser-based imager scanner for rapid 1D and 2D barcode reading
- Omni-directional scan pattern with 65° skew/pitch and 360° roll angles
- USB cable connectivity for direct workstation association
- Withstands repeated drops from 1.8 meters onto concrete surfaces
- IP52 rating for dust and water splash protection
- Comprehensive symbology support including GS1 DataBar and Digimarc
- Operates in temperatures from 32°F to 122°F (0°C to 50°C)
- Ergonomic handheld design with notification LED and audible feedback
- 1280 x 800 image sensor resolution for clear capture
- Suitable for healthcare, retail, manufacturing, and transportation applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GD4520-BK-USB |
| Brand Name | Datalogic |
| Product Line | Gryphon I |
| Product Series | GD4500 |
| Product Model | GD4520 |
| Product Name | Gryphon I GD4520 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes |
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | JPEG,TIFF,BMP |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Grayscale Image Capture,Beep,3GL,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Durability | Drop Resistant |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Retail,Light/Clean Manufacturing,Transportation,Commercial Service,Laboratory,Pharmacy |
User Manual
FAQ
What types of barcodes can the Datalogic GD4520 scanner read?
The GD4520 reads both 1D and 2D barcodes with comprehensive symbology support. For 1D codes, it automatically discriminates all standard linear codes including GS1 DataBar. 2D support includes Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code, various international postal codes, stacked codes like PDF417 and MacroPDF, and Digimarc digital watermarking barcodes.
How does the omni-directional scanning feature work?
The scanner's omni-directional scan pattern provides flexible reading angles without requiring precise alignment. It offers 65° reading angles for both skew and pitch, plus full 360° roll capability. This allows operators to scan barcodes from various orientations while maintaining accurate data capture, improving scanning efficiency in fast-paced environments.
What connectivity options does this barcode scanner support?
The GD4520 features cable connectivity with a USB host interface. This provides reliable direct connection to workstations, point-of-sale systems, or notebooks without wireless configuration requirements. The integrated cable ensures consistent data transmission suitable for fixed scanning stations in retail, healthcare, and industrial settings.
How durable is the GD4520 for industrial environments?
The scanner is built for rugged use with drop-resistant construction that withstands repeated drops from 1.8 meters (6 feet) onto concrete surfaces. It carries an IP52 ingress protection rating, providing protection against dust and water splashes. These durability features make it suitable for demanding environments like manufacturing, transportation, and healthcare facilities.
What environmental conditions can this scanner operate in?
The GD4520 operates in temperatures from 32°F to 122°F (0°C to 50°C) and stores safely from -40°F to 158°F (-40°C to 70°C). It handles humidity from 0% to 95% non-condensing and functions in ambient light up to 100,000 lux. These specifications ensure reliable performance across diverse commercial and industrial settings.
What applications is this barcode scanner best suited for?
The GD4520 is ideal for healthcare facilities scanning patient wristbands and medications, retail point-of-sale systems processing high volumes of items, light manufacturing operations tracking parts and inventory, transportation and logistics scanning shipments, commercial service environments, laboratory inventory management, and pharmacy prescription processing where reliable barcode capture is essential.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
