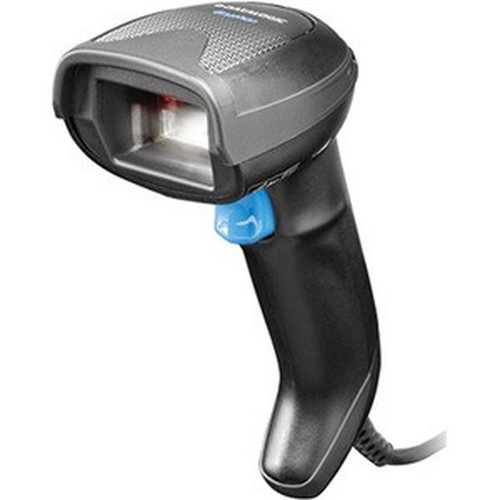

Datalogic GD4590-BK-HD Gryphon I Barcode Scanner - Cable Connectivity - 1D/2D Laser Imager - 15. 7" Scan Distance - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GD4590 utilizes laser imaging technology with a 1280 x 800 resolution sensor to capture detailed barcode data across multiple symbologies. This includes comprehensive 1D code support with auto-discrimination of standard linear codes including GS1 DataBar, plus extensive 2D support covering Aztec Code, Data Matrix, QR Code, PDF417, and specialized postal codes.
Performance specifications include a 15.7-inch scanning distance with 65° reading angles for skew and pitch, plus 360° roll capability. The scanner maintains functionality in challenging lighting conditions with a maximum ambient light tolerance of 100,000 lux and minimum print contrast requirement of 15%. Element resolution ranges from 3 mil for Code 39 to 10 mil for DataMatrix and PDF417 codes.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Gryphon I GD4590 offers distinct advantages for organizations requiring reliable scanning solutions. The cable connectivity ensures stable data transmission without wireless interference concerns, while multiple interface options including keyboard wedge, USB, and serial connections provide flexible integration with existing systems.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Durable Construction, Advanced Scanning Features.
Durable Construction
Built to withstand demanding environments with IP52 ingress protection and drop resistance from 1.8 meters onto concrete surfaces.
- Repeated drop protection
- IP52 rated
- Ruggedized housing
Advanced Scanning Features
Combines laser illumination with imager technology for reliable scanning across varied conditions and code types.
- Grayscale image capture
- White LED illumination
- Notification LED and audible beep
Deployment / Use Cases
This scanner excels in environments requiring direct workstation association, making it perfect for fixed scanning positions in retail, healthcare, and light manufacturing settings. The cable connectivity provides consistent performance without battery concerns or wireless setup complexity.
Applications extend to transportation logistics, commercial service operations, laboratory environments, and pharmacy settings where reliable barcode scanning supports inventory control, asset tracking, and process verification. The scanner's environmental specifications support operation across typical indoor conditions while maintaining performance consistency.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail Point of Sale
Ideal for checkout counters with its omni-directional scanning that handles products from any angle quickly and accurately.
Healthcare Applications
Suitable for patient identification, medication verification, and inventory management in clinical environments.
Physical Profile
The GD4590 features a handheld form factor with ergonomic design considerations for comfortable extended use. The black housing provides professional appearance while the 5.68-ounce weight minimizes user fatigue during repetitive scanning tasks. The compact design supports easy integration into workstation setups without excessive space requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.68 oz (161 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.68 oz (161 g)
Highlights
- Cable-connected barcode scanner with stable data transmission
- Laser imaging technology for 1D and 2D code scanning
- 15.7-inch scanning distance with high-density range
- Omni-directional scanning pattern with 65° reading angles
- Withstands drops from 1.8 meters onto concrete surfaces
- IP52 ingress protection against dust and water splashes
- Multiple interface options: Keyboard Wedge, USB, Serial
- Ergonomic handheld design weighing only 5.68 ounces
- Supports extensive symbology including postal and stacked codes
- Operating temperature range from 32°F to 122°F
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GD4590-BK-HD |
| Brand Name | Datalogic |
| Product Line | Gryphon I |
| Product Series | GD4500 |
| Product Model | GD4590 |
| Product Name | Gryphon I GD4590 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes |
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | High Density |
| Scanning Distance | 15.70" (398.78 mm) |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | BMP,JPEG,TIFF |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 4 mil (0.10 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Grayscale Image Capture,Beep,3GL,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | Keyboard Wedge,USB,Serial,Multi-interface |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Durability | Drop Resistant |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Retail,Light/Clean Manufacturing,Transportation,Commercial Service,Laboratory,Pharmacy |
User Manual
FAQ
What types of barcodes can the GD4590 scanner read?
The Datalogic GD4590 reads both 1D and 2D barcodes with comprehensive symbology support. For 1D codes, it auto-discriminates all standard linear codes including GS1 DataBar. 2D support includes Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code, various postal codes, stacked codes like PDF417 and MacroPDF, and digital watermarking through Digimarc technology.
What is the maximum scanning distance for this barcode scanner?
The GD4590 has a scanning distance of 15.70 inches (398.78 millimeters) with high-density range capability. This distance allows flexible positioning relative to scanned items while maintaining reliable code reading performance across the supported symbologies and resolution ranges.
How durable is the Gryphon I GD4590 scanner?
This scanner features robust durability with IP52 ingress protection against dust and water splashes. It withstands repeated drops from 1.8 meters (6.0 feet) onto concrete surfaces, making it suitable for demanding environments. The construction maintains reliable operation across temperature ranges from 32°F to 122°F during use.
What connectivity options does this scanner support?
The GD4590 uses cable connectivity with multiple host interface options including Keyboard Wedge, USB, Serial, and multi-interface configurations. This provides flexible integration with various point-of-sale systems, computers, and industrial equipment without requiring wireless setup or battery management.
What environments is this scanner suitable for?
The scanner is designed for healthcare, retail, light/clean manufacturing, transportation, commercial service, laboratory, and pharmacy applications. Its environmental specifications support operation in typical indoor conditions with humidity from 0% to 95% non-condensing and tolerance for ambient light up to 100,000 lux.
What are the key technical specifications for scanning performance?
Key performance specifications include 65° reading angles for skew and pitch, 360° roll capability, motion tolerance of 35 inches per second, and minimum print contrast of 15%. The scanner captures images in BMP, JPEG, and TIFF formats with element resolution ranging from 3 mil for Code 39 to 10 mil for DataMatrix and PDF417 codes.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
