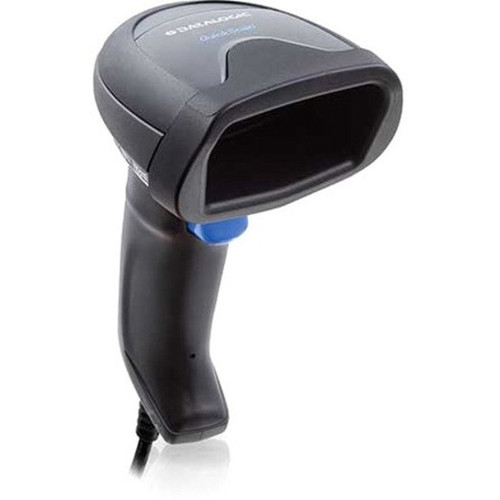

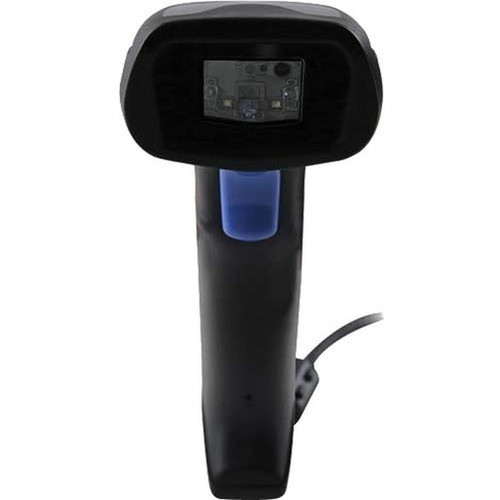

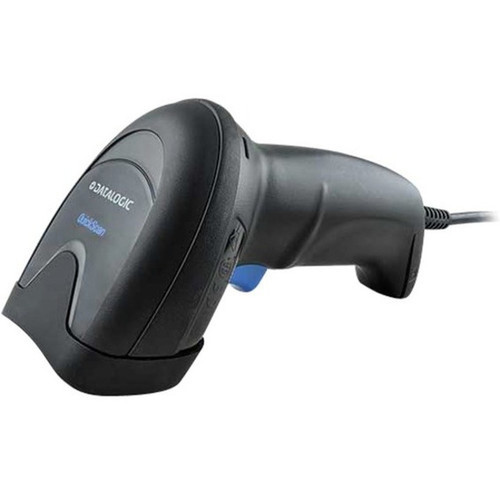

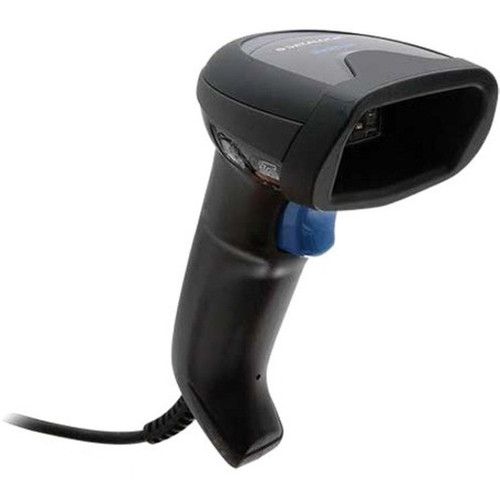

Datalogic QW2520-BKK1S QuickScan 2500 Barcode Scanner Kit - 1D/2D Imager - 20. 10" Scan Distance - Omni-directional - USB - Serial - Keyboard Wedge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The QuickScan 2500 features a sophisticated imager sensor that automatically discriminates all standard 1D codes including GS1 DataBar linear codes, plus comprehensive 2D symbology support including Aztec Code, Data Matrix, QR Code, PDF417, and postal codes from multiple countries. The scanner maintains reliable performance with a minimum print contrast of 15% and handles challenging lighting conditions with maximum ambient light tolerance up to 110,000 lux.
Reading flexibility is enhanced by 65° skew and pitch angles combined with 360° roll capability, allowing operators to scan from virtually any position. The scanner captures images in JPEG, BMP, and TIFF formats for documentation and verification purposes, while its 30 in/s motion tolerance accommodates rapid scanning workflows.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The QuickScan 2500 stands out with its combination of scanning versatility, durability, and connectivity options that streamline integration into existing point-of-sale and inventory management systems.
Comprehensive Code Support
Handles extensive 1D and 2D symbologies including specialized codes for retail, postal, and industrial applications, plus Digimarc barcodes for enhanced product authentication.
- Auto-discrimination of standard 1D codes
- Full 2D code support including QR and Data Matrix
- Postal codes from multiple countries
Enhanced Durability
Built to withstand demanding environments with IP52 protection against dust and water, plus proven drop resistance from 1.5 meters onto concrete.
- IP52 ingress protection rating
- 1.5m drop resistance
- Rugged handheld construction
Deployment / Use Cases
The QuickScan 2500 is engineered for diverse commercial and industrial scanning applications where reliability, speed, and code versatility are essential. Its combination of connectivity options and robust design makes it suitable for integration into both fixed and mobile scanning solutions.
In retail environments, the scanner efficiently processes product barcodes, loyalty cards, and mobile coupons at checkout counters. For commercial service and hospitality applications, it handles ticket scanning, inventory management, and asset tracking with equal proficiency. The scanner's industrial-grade durability makes it ideal for light manufacturing, healthcare equipment tracking, and government documentation systems where equipment must withstand daily operational demands.
Retail & Hospitality
Optimized for point-of-sale operations with rapid scanning of product barcodes, mobile coupons, and loyalty cards in busy retail and hospitality environments.
Industrial & Government
Provides reliable scanning for asset tracking, inventory management, and documentation systems in manufacturing, healthcare, and government applications.
Physical Profile
The QuickScan 2500 features a compact handheld design weighing just 5.11 ounces (145 grams), providing comfortable operation during extended scanning sessions. The black finish offers professional aesthetics suitable for various commercial environments, while the included stand enables convenient desktop placement when not in handheld use. The scanner's lightweight construction reduces operator fatigue without compromising the durable build quality needed for industrial applications.
- Weight
- 5.11 oz (145 g)
What's in the Box
The QuickScan 2500 barcode scanner kit includes the handheld scanner with integrated USB cable for immediate connectivity to host systems.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 1D and 2D barcode scanning capability with comprehensive symbology support
- 20.10" (510.54 mm) scanning distance for flexible positioning
- Omni-directional scan pattern with 65° skew/pitch and 360° roll angles
- USB, serial, and keyboard wedge connectivity options
- IP52 rating for protection against dust and water ingress
- Withstands repeated 1.5m drops onto concrete surfaces
- 30 in/s motion tolerance for rapid scanning workflows
- Suitable for retail, hospitality, industrial, and government applications
- Includes USB cable and stand for versatile deployment
- Lightweight 5.11 oz (145 g) handheld design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | QW2520-BKK1S |
| Brand Name | Datalogic |
| Product Line | QuickScan |
| Product Series | 2500 |
| Product Model | QW2520 |
| Product Name | QuickScan 2500 |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D : Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D : Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot code Postal Codes : Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes : EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking : Digimarc Barcodes (QD2500, QM2500, QBT2500 only) |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanning Distance | 20.10" (510.54 mm) |
| Cable Type Included | USB |
| Stand Included | Yes |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 30 in/s (762 mm/s) |
| Image Formats | JPEG,BMP,TIFF |
| Maximum Ambient Light | 110000 lux |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Keyboard Wedge |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 5.11 oz (145 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Commercial Service,Hospitality,Ticketing,Government,Healthcare,Light/Clean Manufacturing,Industrial |
User Manual
FAQ
What types of barcodes can the QuickScan 2500 read?
The QuickScan 2500 reads both 1D and 2D barcodes, including all standard 1D codes with auto-discrimination, plus comprehensive 2D symbologies such as Aztec Code, Data Matrix, QR Code, PDF417, and various postal codes. It also supports specialized codes like GS1 DataBar composites and Digimarc barcodes for enhanced functionality in retail and authentication applications.
What is the maximum scanning distance for this barcode scanner?
The QuickScan 2500 has a scanning distance of 20.10 inches (510.54 mm), providing flexible positioning relative to barcodes. This extended reach allows operators to scan items without needing direct contact, improving workflow efficiency in retail, warehouse, and industrial environments where items may be at varying distances.
What connectivity options does this scanner support?
The scanner offers multiple connectivity options including USB, serial, and keyboard wedge interfaces. This versatility allows integration with various point-of-sale systems, computers, and industrial equipment. The included USB cable provides plug-and-play connectivity, while serial and keyboard wedge options support legacy systems and specialized applications.
How durable is the QuickScan 2500 for industrial use?
The QuickScan 2500 is built for demanding environments with an IP52 ingress protection rating that guards against dust and water exposure. It withstands repeated drops from 1.5 meters (5 feet) onto concrete surfaces, making it suitable for active work environments where equipment may be subjected to accidental impacts during daily operations.
What is the motion tolerance for scanning moving barcodes?
The scanner has a motion tolerance of 30 inches per second (762 mm/s), allowing it to accurately read barcodes on moving items or during rapid scanning operations. This capability is particularly valuable in retail checkout, warehouse sorting, and manufacturing lines where items move quickly through scanning zones.
What applications is this barcode scanner best suited for?
The QuickScan 2500 is designed for diverse commercial and industrial applications including retail point-of-sale, commercial service counters, hospitality ticketing, government documentation, healthcare equipment tracking, and light manufacturing. Its combination of code support, durability, and connectivity makes it versatile across sectors requiring reliable barcode scanning in active environments.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
