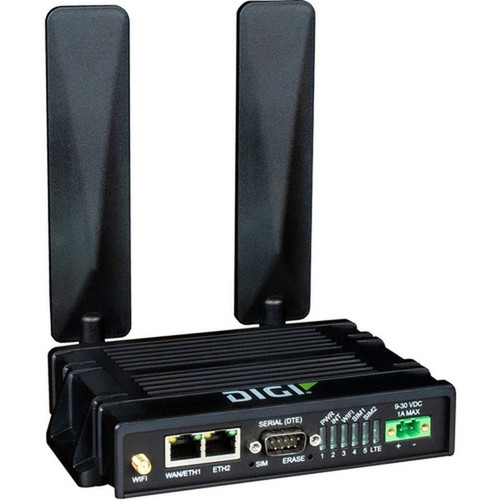

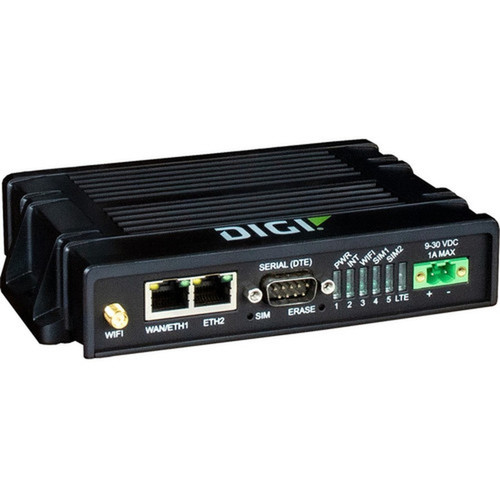

Digi IX20-WAG4 Rugged LTE Router - Wi-Fi 5 (802.11ac) Dual SIM Cellular Modem - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The IX20-WAG4 operates on Wi-Fi 5 (IEEE 802.11ac) standards, utilizing both ISM (2.40 GHz) and UNII (5 GHz) bands for flexible wireless communication. Its cellular component supports 4G LTE, EDGE, and GPRS data connectivity technologies, enabling seamless fallback and redundancy. The device includes three external antennas—two for cellular and one for Wi-Fi—optimizing signal strength and range.
Connectivity is managed through two network RJ-45 ports and one broadband RJ-45 port, facilitating wired Ethernet integration alongside wireless and cellular links. The dual SIM capability allows for carrier diversity or failover, with support for mini SIM cards. VPN encryption ensures secure data transmission, while the rugged design withstands harsh industrial conditions.
Relevant factors for this section include Wi-Fi Generation, Broadband Transmission Technology, Wireless LAN Standard, ISM Band. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Digi IX20-WAG4 excels in providing resilient, high-speed connectivity for demanding applications. Its rugged construction and DIN rail mounting make it suitable for industrial automation, transportation, and remote site deployments where reliability is paramount.
Dual SIM Redundancy
Support for two mini SIM cards enables carrier redundancy or load balancing, ensuring uninterrupted cellular connectivity even if one network fails.
- Multi-SIM supported
- Carrier failover capability
- Mini SIM size
Industrial Durability
Designed with a rugged, DIN rail mountable form factor, the router withstands vibrations, temperature fluctuations, and harsh environments common in industrial settings.
- DIN rail mountable
- RoHS 3 compliant
- Compact footprint
Secure Networking
Integrated VPN support encrypts data transmissions, protecting sensitive information across cellular, Wi-Fi, and Ethernet connections.
- VPN encryption
- Secure remote access
- Data privacy
Deployment / Use Cases
The IX20-WAG4 is ideal for scenarios requiring robust, wireless connectivity in challenging conditions. Its combination of cellular, Wi-Fi, and Ethernet makes it versatile for various industrial and commercial applications.
In industrial automation, it connects PLCs, sensors, and control systems to central networks, enabling real-time monitoring and control. For transportation, it provides reliable internet access in vehicles, trains, or maritime vessels, supporting GPS, telematics, and passenger Wi-Fi. In remote sites like oil fields, construction zones, or agricultural areas, it ensures connectivity where traditional broadband is unavailable.
Industrial IoT Connectivity
Deploy in manufacturing plants or utilities to link IoT devices, machines, and SCADA systems over secure cellular or Wi-Fi networks.
Mobile and Remote Operations
Use in vehicles, vessels, or temporary sites to maintain internet access for communications, data logging, and remote management.
Physical Profile
The IX20-WAG4 has a compact, rugged design with dimensions of 1.38" (35.05 mm) height, 6.38" (162.05 mm) width, and 4.21" (106.93 mm) depth, weighing approximately 1.40 lb (635.03 g). Its DIN rail mountable form factor allows easy installation in standard industrial enclosures, saving space and simplifying maintenance. The sturdy construction ensures durability in environments with dust, moisture, or temperature extremes.
- Width
- 6.38" (162.05 mm)
- Depth
- 4.21" (106.93 mm)
- Height
- 1.38" (35.05 mm)
- Weight
- 1.40 lb (635.03 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- Wi-Fi 5 (IEEE 802.11ac) with dual-band support (2.4 GHz and 5 GHz)
- Dual SIM cellular modem for 4G LTE, EDGE, and GPRS connectivity
- Rugged, DIN rail mountable design for industrial environments
- VPN support for secure data transmission
- Three external antennas (two cellular, one Wi-Fi) for optimal signal
- Two network RJ-45 ports and one broadband RJ-45 port
- Supports GSM 850, 900, 1800, and 1900 MHz cellular networks
- 3-year limited warranty and RoHS 3 environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digi International |
| Manufacturer Part Number | IX20-WAG4 |
| Brand Name | Digi |
| Product Model | IX20 |
| Product Name | Rugged, Secure LTE Router |
| Product Type | Modem/Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 5 |
| Wireless Specifications | |
| Broadband Transmission Technology | Cellular,Ethernet |
| Wireless LAN Standard | IEEE 802.11ac |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Cellular Generation | 4G |
| Cellular Network Supported | GSM 850,GSM 900,GSM 1800,GSM 1900 |
| Cellular Data Connectivity Technology | EDGE,GPRS,LTE |
| Total Number of Antennas | 3 |
| Number of External Antennas | 3 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Mini |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.38" (35.05 mm) |
| Width | 6.38" (162.05 mm) |
| Depth | 4.21" (106.93 mm) |
| Weight (Approximate) | 1.40 lb (635.03 g) |
| Miscellaneous | |
| Package Contents | Rugged, Secure LTE Router DIN Rail Clip Power Supply 2 x Cellular antenna Wi-Fi Antenna Ethernet Cable |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What Wi-Fi standard does the Digi IX20-WAG4 support?
The Digi IX20-WAG4 supports Wi-Fi 5, based on the IEEE 802.11ac wireless LAN standard. This provides dual-band operation with ISM (2.40 GHz) and UNII (5 GHz) frequencies, offering faster speeds and better performance compared to older Wi-Fi 4 (802.11n) routers, ideal for industrial and remote connectivity applications.
How many SIM cards can the IX20-WAG4 router accommodate?
The IX20-WAG4 supports two mini SIM cards, enabling dual SIM functionality. This allows for carrier redundancy, load balancing, or failover scenarios, ensuring continuous cellular connectivity even if one network experiences issues, which is critical for mission-critical deployments in remote or mobile environments.
What cellular networks is this router compatible with?
This router is compatible with 4G LTE networks, specifically supporting GSM 850, GSM 900, GSM 1800, and GSM 1900 MHz bands. It also includes backward compatibility with EDGE and GPRS data connectivity technologies, providing broad coverage and reliable cellular access in various geographic regions.
Can the IX20-WAG4 be mounted in industrial settings?
Yes, the IX20-WAG4 features a DIN rail mountable form factor, making it suitable for installation in industrial control panels, cabinets, and enclosures. Its rugged design withstands harsh conditions like vibrations and temperature extremes, and the included DIN rail clip simplifies secure mounting in standard industrial setups.
Does this router support VPN for secure connections?
Yes, the IX20-WAG4 includes VPN support, allowing for encrypted data transmissions over cellular, Wi-Fi, and Ethernet connections. This ensures secure remote access and data privacy, which is essential for protecting sensitive information in industrial, transportation, or remote site deployments.
What is included in the package with the IX20-WAG4?
The package includes the rugged, secure LTE router itself, a DIN rail clip for mounting, a power supply, two cellular antennas, one Wi-Fi antenna, and an Ethernet cable. These components provide everything needed for immediate deployment and operation in various connectivity scenarios.
