Digital Watchdog DWC-VSBD04BI MEGAPIX 4MP 2K Bullet Network Camera - White - 164 ft IR Night Vision - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 2560 x 1440 pixels, providing 2K clarity that enhances identification of subjects and details. The 1/3" CMOS sensor delivers efficient power consumption and high-definition video output, supporting real-time surveillance with minimal latency. Video is encoded in H.265, H.264, or MJPEG formats, allowing administrators to balance quality and bandwidth based on network constraints.
Exposure control ranges from 1/100,000 second to 1/2 second, accommodating both bright daylight and low-light environments. The camera includes advanced imaging features such as Back Light Compensation (BLC), Highlight Compensation (HLC), 3D Digital Noise Reduction, and Wide Dynamic Range (WDR) to maintain image integrity across challenging lighting conditions. Smart IR technology automatically adjusts infrared intensity to prevent overexposure during night vision operation.
Key Product Advantages
The DWC-VSBD04BI stands out with its combination of high-resolution imaging, extended night vision, and industrial-grade durability. It supports dual power options—12V DC or Power over Ethernet (PoE)—for flexible installation in locations with or without direct power access. Remote management capabilities enable administrators to configure settings, review footage, and receive alerts from any network-connected device.
Superior Night Vision
Infrared illumination reaches up to 164 feet (49.99 meters), ensuring reliable monitoring in complete darkness. Smart IR prevents overexposure for balanced night imagery.
- 164 ft IR range
- Smart IR adjustment
- Clear low-light performance
Rugged Environmental Design
Rated IP67 for dust and water resistance and IK10 for impact protection, this camera withstands harsh weather, vandalism, and outdoor elements.
- IP67 waterproof
- IK10 impact-resistant
- Weather-resistant construction
Advanced Detection Features
Integrated human detection, motion detection, tamper detection, and cross-line detection reduce false alarms and focus alerts on relevant security events.
- Human detection
- Motion detection
- Tamper and cross-line detection
Deployment / Use Cases
This bullet camera is ideal for perimeter security, parking lots, building exteriors, and other outdoor areas requiring continuous surveillance. Its 94° field of view and 4MP resolution make it effective for monitoring entrances, driveways, and open spaces where detail capture is critical. The white finish blends with light-colored surfaces for discreet installation.
In commercial settings, the camera supports retail loss prevention, warehouse monitoring, and facility management. Its PoE capability simplifies deployment in networked security systems, reducing wiring complexity. For residential applications, it provides reliable home security with professional-grade durability and night vision. The memory card storage option allows for local recording without immediate network video recorder (NVR) dependency, suitable for temporary or standalone setups.

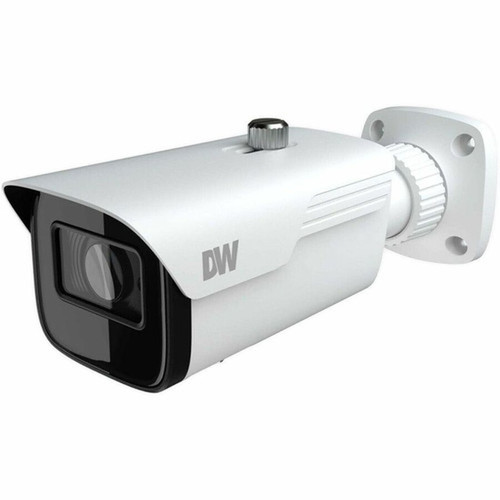

Physical Profile
The camera features a bullet form factor with dimensions of 8.69" (220.73 mm) in height, 3.16" (80.26 mm) in width, and 2.77" (70.36 mm) in depth, weighing approximately 1.52 lb (689.46 g). Its compact design facilitates mounting on walls, eaves, or poles using standard brackets. The white color provides a neutral appearance that suits most architectural styles.
- Width
- 3.16" (80.26 mm)
- Depth
- 2.77" (70.36 mm)
- Height
- 8.69" (220.73 mm)
- Weight
- 1.52 lb (689.46 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution delivers 2K video at 2560 x 1440 for detailed surveillance.
- Infrared night vision covers distances up to 164 ft (49.99 m) with Smart IR control.
- IP67 and IK10 ratings ensure dust, water, and impact resistance for outdoor durability.
- Supports H.265 and H.264 video compression for efficient bandwidth and storage use.
- Power over Ethernet (PoE) and 12V DC options provide flexible installation power choices.
- 94° horizontal field of view with a fixed 2.8 mm lens for broad area coverage.
- Includes human detection, motion detection, and tamper detection for intelligent alerts.
- Operates in temperatures from -22°F to 140°F (-30°C to 60°C) for all-season reliability.
- Remote management enables configuration and monitoring from networked devices.
- Backed by a 5-year limited warranty for long-term peace of mind.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-VSBD04BI |
| Brand Name | Digital Watchdog |
| Product Line | MEGAPIX |
| Product Model | DWC-VSBD04Bi |
| Product Name | MEGApix 4MP bullet IP camera with fixed lens and IR |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 164 ft (49.99 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | Horizontal Field of View (HFOV) 94° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Bullet |
| Durability | Dust Resistant,Water Proof,Impact Resistant,Weather Resistant |
| Height | 8.69" (220.73 mm) |
| Width | 3.16" (80.26 mm) |
| Depth | 2.77" (70.36 mm) |
| Weight (Approximate) | 1.52 lb (689.46 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,Digital Watermark,Privacy Masking,Human Detection,Motion Detection,Wide Dynamic Range,Smart IR,Tamper Detection,Cross Line Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum video resolution of the Digital Watchdog DWC-VSBD04BI camera?
The camera records at a maximum resolution of 2560 x 1440 pixels, which is 4 megapixels or 2K. This resolution provides clear, detailed video suitable for identifying faces, license plates, and other critical details in surveillance footage.
How far does the night vision reach on this camera?
The infrared night vision effectively illuminates objects up to 164 feet (49.99 meters) in complete darkness. It uses Smart IR technology to automatically adjust the intensity of the infrared LEDs, preventing overexposure and ensuring balanced nighttime imagery.
Is this camera suitable for outdoor use in harsh weather conditions?
Yes, the camera is built for outdoor durability with an IP67 rating for dust and water resistance and an IK10 rating for impact protection. It operates reliably in temperatures ranging from -22°F to 140°F (-30°C to 60°C) and withstands rain, snow, and vandalism.
What power options are available for this network camera?
The camera supports both 12V DC power and Power over Ethernet (PoE). PoE allows you to deliver power and data over a single Ethernet cable, simplifying installation in locations without direct power access and reducing wiring clutter.
Does this camera include advanced detection features?
Yes, it includes human detection, motion detection, tamper detection, and cross-line detection. These features help reduce false alarms by focusing alerts on relevant security events, such as person movement or unauthorized camera interference.
What video compression formats does the camera support?
It supports H.265, H.264, and MJPEG video formats. H.265 offers high compression efficiency for reduced bandwidth and storage needs, while H.264 provides broad compatibility with existing systems. MJPEG is available for simpler streaming applications.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
