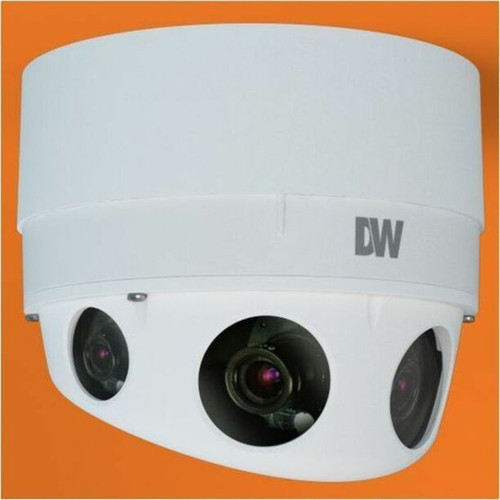

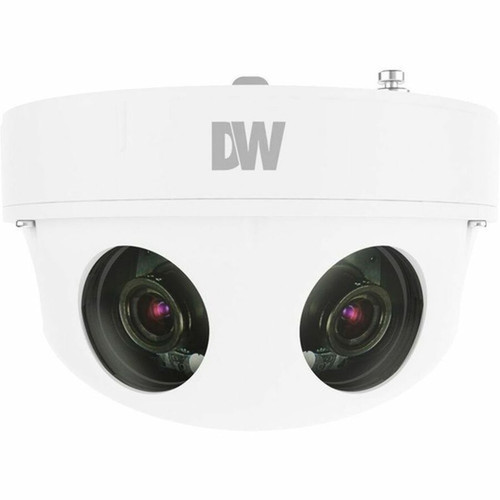

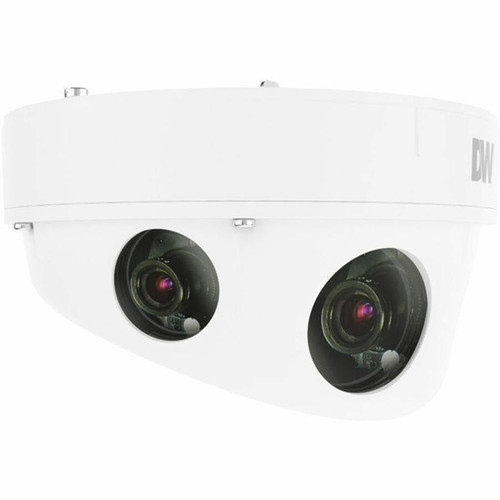

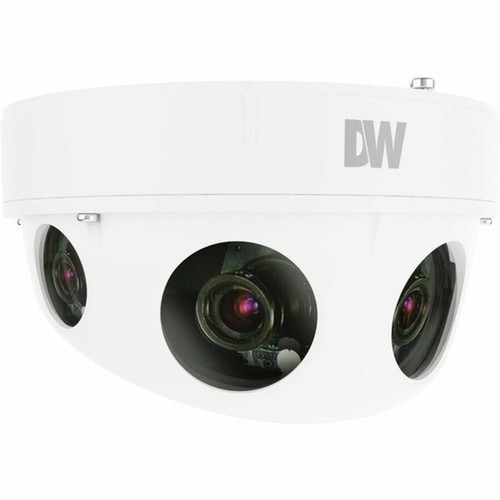

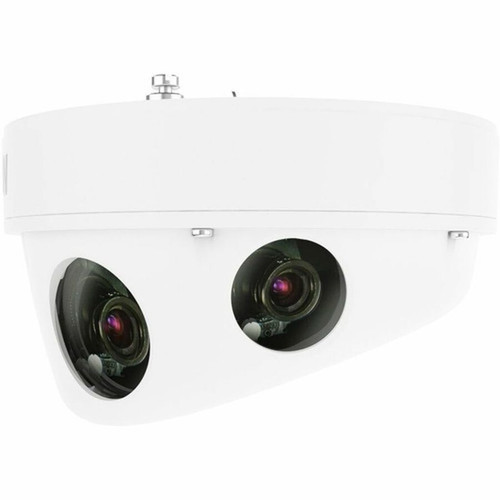

Digital Watchdog DWC-PZ21M69TW MEGApix PANO 5. 3MP Network Camera - White - 3096 x 2080 - 4-Sensor - Fixed 8mm Lens - H. 264/MJPEG - IP66 - PoE+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/1.8" CMOS image sensor that delivers color video with efficient power consumption. The imaging system supports H.264 and MJPEG video formats, providing flexibility for different recording and streaming requirements. With a maximum aperture of f/1.6 and shutter speeds ranging from 1/32000 to 1/15 second, the camera maintains image quality across varying lighting conditions.
Advanced video processing features include 3D digital noise reduction, back light compensation, highlight compensation, and defog functionality. The camera also incorporates intelligent detection capabilities for humans and vehicles, along with motion detection and auto-flip orientation for versatile deployment scenarios.
This section brings together practical product details such as HD Recording, Image Sensor Type, Image Sensor Size, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The MEGApix PANO camera delivers superior surveillance capabilities through its combination of high-resolution imaging, multi-sensor design, and industrial-grade construction. The 5.3-megapixel resolution provides exceptional detail capture, while the four-sensor configuration enables comprehensive coverage without blind spots.
Comprehensive Detection
Advanced analytics include human detection, vehicle detection, and motion detection with configurable zones for precise monitoring and reduced false alerts.
- Human Detection
- Vehicle Detection
- Motion Detection
- Configurable Zones
Environmental Resilience
IP66 rating ensures protection against dust and powerful water jets, while the operating temperature range of -4°F to 122°F maintains performance in extreme conditions.
- IP66 Rated
- Wide Temperature Range
- Weather Resistant
- Vandal Resistant
Deployment / Use Cases
This network camera is engineered for professional surveillance applications where high-resolution monitoring and environmental durability are essential. The 180° horizontal field of view makes it particularly effective for covering large areas such as parking lots, building perimeters, and public spaces where panoramic coverage reduces the number of cameras required.
The PoE+ support simplifies installation by delivering both power and data over a single Ethernet cable, reducing wiring complexity and costs. This makes the camera ideal for new installations or retrofits where minimizing infrastructure changes is important. The memory card storage option provides local recording capability as a backup or primary storage solution in distributed surveillance networks.
Perimeter Security
The vandal-resistant construction and wide field of view make this camera suitable for perimeter monitoring of commercial properties, industrial facilities, and government installations.
Public Space Monitoring
With human and vehicle detection capabilities, the camera effectively monitors public areas, transportation hubs, and retail environments while filtering irrelevant motion events.
Physical Profile
The camera features a white housing designed for both aesthetic integration and functional durability. The 4.40-pound weight reflects the robust construction with reinforced mounting points for secure installation. The fixed 8mm lens provides consistent focal length without adjustment requirements, simplifying setup and maintenance. The design accommodates standard surveillance mounting hardware for ceiling, wall, or pole installations in various orientations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.40 lb (1995.81 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 4.40 lb (1995.81 g)
- Length
- 8 mm (0.31")
Highlights
- 5.3-megapixel resolution with 3096x2080 maximum video output
- Four CMOS sensors for comprehensive coverage without blind spots
- Fixed 8mm lens with f/1.6 maximum aperture for low-light performance
- IP66-rated vandal-resistant housing for outdoor and high-security applications
- PoE+ support for simplified installation with single-cable power and data
- Advanced video features including 3D noise reduction and defog functionality
- Human and vehicle detection with configurable motion zones
- Operating temperature range from -4°F to 122°F (-20°C to 50°C)
- TAA compliant for government and institutional procurement
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-PZ21M69TW |
| Brand Name | Digital Watchdog |
| Product Line | MEGApix PANO |
| Product Model | DWC-PZ21M69TW |
| Product Name | MEGApix Pano 21MP multi-sensor vandal IP camera with fixed lenses |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | (HFOV)180° (VFOV)30° |
| Effective Camera Resolution | 5.3 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | H.264,MJPEG |
| Maximum Video Resolution | 3096 x 2080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 8 mm (0.31") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/15 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE+ |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Durability | Vandal Resistant,Weather Resistant,Tamper Resistant |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,Human Detection,Vehicle Detection,Dual Stream,Gain Control,White Balance,Motion Detection,Defog,Auto Flip |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution of this Digital Watchdog network camera?
The Digital Watchdog MEGApix PANO DWC-PZ21M69TW delivers 5.3-megapixel resolution with a maximum video output of 3096x2080 pixels. This high resolution provides detailed imagery suitable for identification and forensic review in surveillance applications, capturing fine details that lower-resolution cameras might miss.
How many sensors does this camera have and why is this important?
This camera incorporates four CMOS sensors, which work together to provide comprehensive coverage without blind spots. Multiple sensors enable the camera to capture a wider effective field of view while maintaining high resolution across the entire scene, reducing the number of cameras needed to monitor large areas effectively.
What power options are available for this network camera?
The camera supports both 12V DC power input and PoE+ (Power over Ethernet Plus) delivery. PoE+ simplifies installation by allowing power and data transmission over a single Ethernet cable, reducing wiring complexity and costs. This flexibility makes the camera suitable for both new installations and retrofits in existing infrastructure.
Is this camera suitable for outdoor installation?
Yes, this camera is designed for outdoor use with an IP66 ingress protection rating that ensures resistance against dust and powerful water jets. The vandal-resistant construction, weather-resistant housing, and operating temperature range of -4°F to 122°F (-20°C to 50°C) make it suitable for challenging environmental conditions in both indoor and outdoor surveillance applications.
What video compression formats does this camera support?
The camera supports both H.264 and MJPEG video compression formats. H.264 provides efficient bandwidth utilization with high compression ratios, ideal for network transmission and storage optimization. MJPEG offers simpler decoding and frame-by-frame access, useful for applications requiring individual frame analysis or compatibility with legacy systems.
What intelligent detection features are included with this camera?
The camera includes human detection, vehicle detection, and configurable motion detection capabilities. These intelligent analytics help reduce false alerts by distinguishing between relevant events and irrelevant motion, allowing security personnel to focus on genuine threats. The system also features auto-flip orientation for flexible mounting positions and defog processing for maintaining visibility in challenging weather conditions.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
