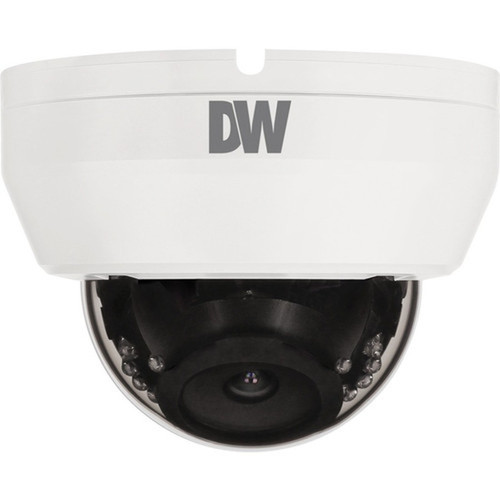

Digital Watchdog DWC-D3853WTIRW Star-Light Plus 8MP 4K Dome Surveillance Camera - 3840 x 2160100ft Night Vision - 2. 8mm Lens - Weather/Vandal
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DWC-D3853WTIRW features advanced imaging technology with an 8-megapixel CMOS sensor that captures high-definition video at 30 frames per second. The camera supports multiple analog video signal formats including HD-TVI, HDCVI, and CVBS, providing compatibility with various surveillance systems.
With a 2.8mm fixed lens offering a 106.5° field of view, this camera provides wide coverage for monitoring larger areas. The imaging system includes sophisticated features like 3D digital noise reduction, wide dynamic range, back light compensation, and automatic white balance for optimal image quality in varying lighting conditions.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This surveillance camera offers several distinct advantages for security installations, combining high-resolution imaging with durable construction and intelligent features.
Enhanced Low-Light Performance
The Star-Light Plus technology enables effective night vision up to 100 feet (30.48 meters), ensuring reliable monitoring around the clock. The camera maintains image quality in low-light conditions with its advanced sensor and processing capabilities.
- 100 ft night vision range
- Effective low-light imaging
- Consistent 24/7 monitoring
Intelligent Image Processing
Multiple built-in image enhancement features optimize video quality in challenging conditions. Defog technology improves visibility in hazy environments, while 3D digital noise reduction minimizes graininess for clearer footage.
- Defog technology
- 3D digital noise reduction
- Wide dynamic range
- Back light compensation
Durable Construction
Built to withstand demanding indoor environments, the camera features weather-resistant and vandal-resistant construction. The dome housing provides protection while maintaining a professional appearance.
- Weather resistant
- Vandal resistant
- Durable dome housing
- Indoor rated
Deployment / Use Cases
The DWC-D3853WTIRW is designed for various indoor surveillance applications where high-resolution monitoring and reliable performance are essential. Its universal compatibility with multiple video formats makes it suitable for integration with existing and new surveillance systems.
This camera excels in commercial environments such as retail stores, offices, and hospitality venues where discreet monitoring is required. The dome form factor blends with ceiling installations while providing comprehensive coverage of entry points, cash handling areas, and high-traffic zones.
Small Business Security
Ideal for small to medium businesses requiring cost-effective surveillance with professional features. The camera's 4K resolution provides clear identification of individuals and activities while the TAA compliance ensures government contract eligibility.
- SMB security installations
- Cost-effective monitoring
- Government contract ready
Indoor Facility Monitoring
Suited for monitoring indoor facilities where environmental factors may be present. The weather-resistant construction handles humidity up to 90% and temperature variations from -4°F to 122°F (-20°C to 50°C).
- Warehouse monitoring
- Manufacturing facilities
- Storage areas
- Utility rooms
Physical Profile
The dome-style housing measures compactly for ceiling or wall mounting with multiple installation options including wall mount and plane mount configurations. Weighing approximately 10.56 ounces (299.37 grams), the camera installs easily without requiring heavy-duty support structures.
The fixed 2.8mm lens provides consistent coverage without requiring adjustment, while the built-in OSD function allows for configuration without external tools. The camera operates on wired connectivity for reliable power and video transmission.
- Weight
- 10.56 oz (299.37 g)
- Length
- 2.8 mm (0.11")
Highlights
- 8-megapixel CMOS sensor delivers 3840 x 2160 4K resolution video
- 100-foot (30.48-meter) night vision range for 24/7 monitoring
- Fixed 2.8mm lens with 106.5° wide field of view
- Weather-resistant and vandal-resistant dome construction
- Supports HD-TVI, HDCVI, and CVBS video formats for universal compatibility
- 30 frames per second capture rate for smooth video playback
- TAA compliant for government and educational procurement
- 5-year limited warranty for long-term reliability
- Built-in image enhancements including defog and 3D noise reduction
- Indoor rated with operating temperature range of -4°F to 122°F (-20°C to 50°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-D3853WTIRW |
| Brand Name | Digital Watchdog |
| Product Line | Star-Light Plus |
| Product Model | DWC-D3853WTIRW |
| Product Name | 4K Universal HD Over Coax indoor Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 100 ft (30.48 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 106.5 |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | HD-TVI,HDCVI,CVBS |
| Lens | |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Exposure | |
| Shortest Shutter Speed | 1/30000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Mount Type | Wall Mount,Plane Mount |
| Form Factor | Dome |
| Durability | Weather Resistant,Vandal Resistant |
| Weight (Approximate) | 10.56 oz (299.37 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Automatic White Balance,Back Light Compensation (BLC),Defog,3D Digital Noise Reduction,Built-in OSD Function,Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Country of Origin | Vietnam |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does this surveillance camera provide?
The Digital Watchdog DWC-D3853WTIRW delivers 8-megapixel resolution with a maximum video resolution of 3840 x 2160 (4K UHD). This high resolution provides clear, detailed footage that enables identification of individuals and objects at greater distances, making it suitable for applications where detail capture is critical for security monitoring.
How far does the night vision reach on this camera?
This camera features infrared night vision with an effective range of 100 feet (30.48 meters). The Star-Light Plus technology enhances low-light performance, allowing the camera to capture usable footage in complete darkness. This extended range ensures comprehensive coverage of monitored areas during nighttime hours.
What video formats does this camera support?
The camera supports multiple analog video signal formats including HD-TVI, HDCVI, and CVBS. This universal compatibility allows integration with various surveillance systems and recorders, providing flexibility for upgrades or expansions of existing security infrastructure without requiring complete system replacement.
Is this camera suitable for outdoor installation?
No, this camera is rated for indoor use only. While it features weather-resistant and vandal-resistant construction, it is designed specifically for indoor environments. The camera operates within a temperature range of -4°F to 122°F (-20°C to 50°C) and handles humidity up to 90%, making it suitable for various indoor conditions.
What mounting options are available for this dome camera?
The camera supports both wall mount and plane mount installations. The dome form factor allows for discreet ceiling mounting in commercial environments, while the included mounting hardware facilitates secure installation. The compact design and approximately 10.56-ounce weight make installation straightforward in various indoor locations.
What warranty coverage does this product include?
Digital Watchdog provides a 5-year limited warranty for the DWC-D3853WTIRW surveillance camera. This extended warranty period reflects the product's durability and reliability for continuous surveillance applications. The camera is also TAA compliant and meets RoHS environmental standards for responsible manufacturing.
