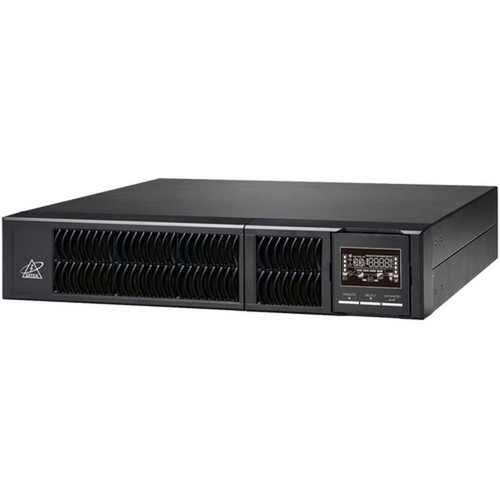

DITEK DTK-UPS3000R+ 3000VA Rack/Tower UPS - 3 kVA/3 kW - 4 Outlets - Pure Sine Wave - 3 Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates with an input voltage of 120 V AC and delivers output voltages adjustable between 100 V AC and 127 V AC, accommodating various regional power standards. The input power factor of 0.99 enhances energy efficiency, while the pure sine wave waveform ensures compatibility with active PFC power supplies and sensitive loads.
The unit features an LCD display that provides real-time status information, including UPS status, load level, battery level, input/output details, and discharge time. Network management is enabled via Smart RS-232/USB interfaces, allowing for remote monitoring and control.
This section brings together practical product details such as Receptacle Type, Number of Critical Load Outlets, Application/Usage, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DTK-UPS+ 3000VA combines high power capacity with advanced management features, making it a robust solution for protecting critical IT and industrial systems. Its double conversion online topology ensures zero transfer time during power events, maintaining uninterrupted operation.
Reliable Power Protection
With 3 kVA/3 kW capacity and pure sine wave output, this UPS safeguards equipment from power anomalies, ensuring data integrity and system uptime.
- 4 critical load outlets (NEMA L5-30R)
- Adjustable output voltage
- High input power factor (0.99)
Advanced Battery Management
The hot-swappable battery design allows for maintenance without downtime, supported by six 12V batteries with 9000 mAh capacity each.
- 3-hour typical recharge time
- Full-load runtime of 2.93 minutes
- Half-load runtime of 9.83 minutes
Deployment / Use Cases
This UPS is engineered for environments where power continuity is critical, such as data centers, network operations, and industrial control systems. Its application versatility supports a wide range of loads, from servers and storage arrays to surveillance cameras and point-of-sale terminals.
In rack-mounted deployments, the compact 3.46" height optimizes space in standard server racks, while the tower configuration suits office or retail settings. The unit's management capabilities enable integration into existing network monitoring systems, providing alerts for battery mode, low battery, overload, and fault conditions.
Network & Server Protection
Ideal for safeguarding network switches, routers, and servers in small to medium-sized data centers, ensuring uninterrupted connectivity and data access.
Surveillance & POS Systems
Provides reliable backup for video surveillance systems and point-of-sale terminals, preventing data loss and maintaining operational continuity during power outages.
Physical Profile
Designed for flexible installation, the UPS measures 3.46" in height and 17.24" in width, fitting standard 19-inch rack enclosures while also functioning as a standalone tower. The approximate weight of 27.50 kg reflects its robust construction and internal battery complement.
The unit operates with a sound emission of 50 dB(A), making it suitable for office environments where noise control is a consideration. Mounting rails are included for secure rack installation, ensuring stability and ease of deployment.
- Width
- 17.24" (437.90 mm)
- Height
- 3.46" (87.88 mm)
- Weight
- 50 dB(A)
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution.
Package contents include DTK-UPS+ 3000VA Rack/Tower UPS Mounting Rails, DTK-UPS+ 3000VA Rack/Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 3 kVA/3 kW load capacity for robust power protection
- Pure sine wave output ensures compatibility with sensitive electronics
- 4 critical load outlets (NEMA L5-30R) for multiple device connections
- Hot-swappable batteries enable maintenance without downtime
- LCD display provides real-time status and diagnostics
- Smart RS-232/USB interfaces for network management
- Rack/tower form factor offers flexible installation options
- 3-year limited warranty for added reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | DITEK Corporation |
| Manufacturer Part Number | DTK-UPS3000R+ |
| Brand Name | DITEK |
| Product Series | DTK-UPS+ |
| Product Name | DTK-UPS+ 3000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA L5-30R |
| Number of Critical Load Outlets | 4 |
| Application/Usage | Network,Server,Video Surveillance,Computer,PC-based Phone System,POS |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC,127 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 63 Hz |
| Waveform Type | Pure Sine Wave |
| Input Power Factor | 0.99 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Smart RS-232/USB |
| Alarm | Battery Mode,Low Battery,Overload,Fault,Bypass Mode |
| Controls/Indicators | |
| Status Indicators | LCD Display: UPS Status Load Level Battery Level Battery Info Input Info Output Info Discharge Time Fault Indicators |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Number of Batteries | 6 |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 2.93 Minute |
| Backup/Run Time (Half Load) | 9.83 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Physical Characteristics | |
| Height | 3.46" (87.88 mm) |
| Width | 17.24" (437.90 mm) |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 27.50 kg |
| Miscellaneous | |
| Package Contents | DTK-UPS+ 3000VA Rack/Tower UPS Mounting Rails |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The DITEK DTK-UPS+ 3000VA UPS provides a load capacity of 3 kVA (3000 VA) and 3 kW (3000 watts). This capacity supports critical loads such as servers, network equipment, and surveillance systems, ensuring continuous operation during power interruptions.
How long does the battery backup last at full load?
At full load, the UPS delivers a backup runtime of 2.93 minutes. This provides sufficient time for graceful shutdown of connected equipment or transition to alternative power sources, minimizing data loss and system downtime.
What type of outlets does this UPS have?
The unit includes 4 critical load outlets with NEMA L5-30R receptacles. These outlets are designed to support high-power devices, making the UPS suitable for server racks, network cabinets, and industrial applications requiring reliable power distribution.
Can this UPS be mounted in a server rack?
Yes, the UPS features a rack/tower form factor with a height of 3.46" (87.88 mm) and width of 17.24" (437.90 mm), allowing installation in standard 19-inch server racks. Mounting rails are included for secure rack deployment, while the tower configuration supports standalone use.
What management interfaces are available?
The UPS includes Smart RS-232 and USB interfaces for network management. These enable remote monitoring, configuration, and alerts for conditions such as battery mode, low battery, overload, and faults, integrating with existing IT management systems.
How long does it take to recharge the batteries?
The typical battery recharge time is 3 hours. This ensures the UPS is quickly ready for subsequent power events, maintaining readiness for continuous protection of connected critical loads.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 4, which helps buyers understand how many connected devices it can support in its intended deployment.
