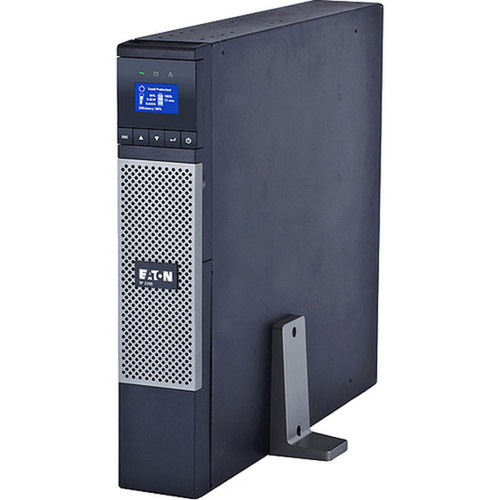

Eaton 5P2200 1950 VA/1920W Tower UPS - Line-Interactive - 8x NEMA 5-20R Outlets - 110V Input - 132V Output - 3 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with 110V AC input and delivers regulated 132V AC output, maintaining stable power to connected devices. The 4ms transfer time ensures seamless switching to battery power during outages.
Battery performance is enhanced with Eaton's exclusive ABM technology, which uses a 3-stage charging process to increase internal battery life by up to 50%. The maintenance-free lead-acid batteries are hot-swappable, allowing replacement without powering down connected equipment.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
Beyond basic power protection, this UPS includes features designed for business continuity. The optional NETWORK-M2 Gigabit network card slot enables full remote access and control, while the intelligent battery management extends service life and reduces maintenance costs.
Enhanced Runtime Management
The 5-button graphical LCD provides immediate visibility into UPS status, load levels, and battery health, enabling quick decision-making during power events.
- Real-time load percentage display
- Battery runtime remaining indicator
- Input/output voltage monitoring
Intelligent Power Software Suite
Included software enables automated safe shutdown of connected systems, event logging, and remote monitoring capabilities to protect data and equipment integrity.
- Automatic system shutdown
- Event notification and logging
- Remote management via USB/serial
Deployment / Use Cases
The Eaton 5P2200 is well-suited for environments where uptime is critical but space is limited. Its tower design fits easily under desks, in closets, or in small equipment rooms without requiring rack mounting.
For point-of-sale systems, medical equipment, or security systems, this UPS provides the clean, regulated power needed for sensitive electronics while offering sufficient runtime for proper shutdown procedures or continued operation during short outages.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Room Protection
Ideal for small to medium server installations, providing enough runtime for graceful shutdowns or continued operation during brief outages.
Network Infrastructure Support
Protects switches, routers, and communication equipment to maintain network availability during power disturbances.
Physical Profile
The tower design measures 3.39" H × 17.36" W × 20.55" D (86 × 441 × 522 mm) with an approximate weight of 65 lb (29.5 kg). This compact footprint allows flexible placement in office environments while providing substantial power capacity.
The unit includes tower pedestals for stability, and its form factor is optimized for standalone deployment where rack mounting isn't required or available.
- Width
- 17.36" (441 mm)
- Depth
- 20.55" (522 mm)
- Height
- 3.39" (86 mm)
- Weight
- 65 lb (29483.50 g)
What's in the Box
The package includes everything needed for immediate deployment and management of your UPS system.
Highlights
- 1.95 kVA/1.92 kW line-interactive UPS with tower form factor
- 8 NEMA 5-20R outlets for connecting multiple devices
- 3-minute runtime at full load, 9 minutes at half load
- 110V AC input with regulated 132V AC output
- USB and serial connectivity for monitoring and management
- Hot-swappable, maintenance-free lead-acid batteries
- 5-button graphical LCD for status monitoring
- Includes Eaton Intelligent Power Software Suite
- Optional NETWORK-M2 Gigabit network card support
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5P2200 |
| Brand Name | Eaton |
| Product Series | 5P |
| Product Name | 5P 1950 VA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 1.95 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 110 V AC |
| Output Voltage | 132 V AC |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.39" (86 mm) |
| Width | 17.36" (441 mm) |
| Depth | 20.55" (522 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 65 lb (29483.50 g) |
| Miscellaneous | |
| Package Contents | 5P 1950 VA Tower UPS User Manual CD Tower Pedestals Intelligent Power Software Suite CD Quick Start Guide RS-232 Serial Cable USB Cable Phillips Head Screw Driver |
| Software Included | Eaton Intelligent Power Software Suite |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 5P2200 provides 1.95 kVA (1950 VA) and 1.92 kW (1920 watts) of power capacity. This represents approximately 20% more usable wattage than traditional UPS systems, allowing you to protect more equipment or extend runtime for connected devices.
How long will this UPS run on battery power?
At full load (1920 watts), the UPS provides approximately 3 minutes of runtime. At half load (960 watts), runtime extends to approximately 9 minutes. These times allow for safe shutdown of connected systems or continued operation during brief power interruptions.
What types of outlets does this UPS have?
This unit features eight NEMA 5-20R outlets, which are standard 20-amp receptacles commonly used for office equipment, servers, and networking gear. The plug type is NEMA 5-20P, matching standard 20-amp power cords.
Can I monitor and manage this UPS remotely?
Yes, the UPS includes both USB and serial ports for local management using the included Intelligent Power Software Suite. For full remote access, an optional NETWORK-M2 Gigabit network card can be installed, enabling web-based monitoring, configuration, and control from anywhere on your network.
What is the transfer time of this line-interactive UPS?
The transfer time is 4 milliseconds, which is fast enough to prevent most connected equipment from noticing the switch to battery power. This rapid switching ensures continuous operation of sensitive electronics during power disturbances or outages.
Are the batteries user-replaceable?
Yes, the maintenance-free lead-acid batteries are hot-swappable, meaning they can be replaced without powering down connected equipment. Eaton's ABM technology with 3-stage charging helps extend battery life by up to 50% compared to conventional charging methods.
What power capacity is listed for this UPS?
The listed power specification is 1.95 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 110 V AC, which helps position the unit for the right load level and installation role.
