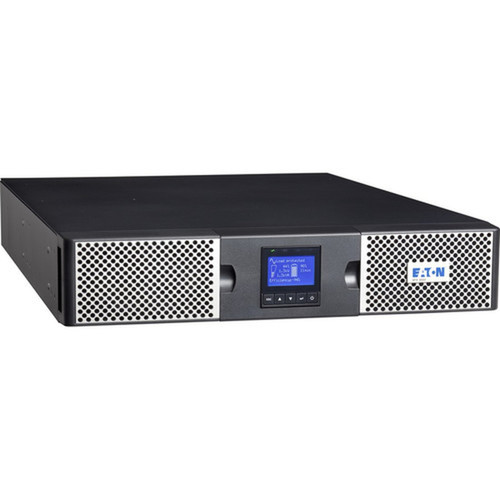

Eaton 9PX3000GLRT 9PX 3000VA/3000W Double Conversion Online UPS - 2U Rack/Tower Mountable with NEMA L6-30R & L6-20R Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously conditions incoming power, providing isolation from grid disturbances and delivering pure sine wave output. The 3 kVA/3000W capacity supports substantial loads, and the NEMA L6-30R and dual L6-20R outlets are organized into separately switched banks for managed load shedding.
The interactive LCD interface displays real-time status, load information, and battery health. Communication options include RS-232 and USB ports for integration with power management software, while an optional NETWORK-M2 Gigabit network card enables full remote monitoring and control.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Eaton 9PX series combines robust power protection with flexible deployment options. Its dual rack/tower design allows installation in standard 19-inch racks or as a standalone tower using included pedestals, adapting to evolving infrastructure needs.
Managed Power Distribution
NEMA L6-20R outlets are split into separate switched banks, enabling prioritized shutdown of non-critical loads during extended outages to maximize runtime for essential equipment.
- Load shedding capability
- Outlet group control
Expandable Runtime
Optional extended battery modules can be added to increase backup duration, providing flexibility for applications requiring longer runtime beyond standard battery capacity.
- Modular battery expansion
- Scalable protection
Deployment / Use Cases
This UPS is engineered for environments where power quality and availability are critical. Its 3 kVA capacity and robust outlet configuration make it suitable for protecting server racks, network switches, storage arrays, and other IT infrastructure.
In data centers, the 2U rack-mount form factor optimizes space while providing enterprise-grade power protection. For smaller server rooms or edge locations, the tower configuration with included pedestals offers a stable standalone solution without requiring rack infrastructure.
Server Room Protection
Provides clean power and backup for critical servers, preventing data loss and hardware damage during power disturbances. The 0 ns transfer time ensures uninterrupted operation.
- Server rack compatibility
- Zero transfer gap
Network Infrastructure Support
Protects networking equipment, switches, and routers to maintain connectivity during outages. Remote management capabilities allow monitoring from network operations centers.
- Network gear protection
- Remote management ready
Physical Profile
The UPS measures 3.40" H × 17.30" W × 23.80" D (86.36 × 439.42 × 604.52 mm) and weighs 60.41 lb (27.4 kg). The 2U rack height fits standard server cabinets, while the included 4-post rail kit and tower pedestals support both installation methods. The compact depth accommodates most rack configurations without protruding beyond standard cabinet depths.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.40" (86.36 mm), 17.30" (439.42 mm), 23.80" (604.52 mm), 60.41 lb (27400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 23.80" (604.52 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 60.41 lb (27400 g)
What's in the Box
The package includes all necessary components for both rack and tower deployment:
Highlights
- 3000VA/3000W double conversion online UPS with 0 ns transfer time
- 2U rack/tower convertible form factor with included rail kit and pedestals
- Wide input voltage range: 200-240 V AC with matching clean output
- Outlet configuration: 1× NEMA L6-30R and 2× NEMA L6-20R in switched banks
- Interactive LCD display for real-time status and load information
- RS-232 and USB connectivity with optional NETWORK-M2 Gigabit card support
- Extended battery modules available for increased runtime
- RoHS compliant with 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX3000GLRT |
| Brand Name | Eaton |
| Product Model | 9PX |
| Product Name | 9PX 3000VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA L6-30R,NEMA L6-20R |
| Receptacle Detail | 1 x NEMA L6-30R,2 x NEMA L6-20R |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 23.80" (604.52 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 60.41 lb (27400 g) |
| Miscellaneous | |
| Package Contents | 9PX 3000VA Tower/Rack Mountable UPS Safety Manual User Manual Output Cables (for G models) Input Cables (for G models) Cable Lockers (for G models) 4-Post Rail Kit Tower Pedestals RS-232 Serial Cable USB Cable Intelligent Power Software Suite CD |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
This Eaton 9PX UPS provides 3000VA/3000W of power capacity, suitable for protecting substantial IT loads including servers, network equipment, and storage systems. The 3 kVA rating indicates its apparent power handling capability, while the 3 kW rating represents its real power output capacity.
Can this UPS be used in both rack and tower configurations?
Yes, the Eaton 9PX3000GLRT is designed for dual rack/tower deployment. It includes a 4-post rail kit for standard 19-inch rack mounting at 2U height, plus tower pedestals for standalone use. This flexibility allows installation in data center racks, server rooms, or as a standalone unit where rack infrastructure isn't available.
What types of outlets does this UPS have?
The UPS features one NEMA L6-30R outlet and two NEMA L6-20R outlets. The L6-20R outlets are organized into separately switched banks, enabling managed load shedding where non-critical equipment can be powered down during extended outages to conserve battery for essential systems.
What is the transfer time of this double conversion online UPS?
This Eaton 9PX UPS has a 0 nanosecond transfer time because it operates as a true double conversion online system. It continuously converts AC input to DC and back to AC, providing complete isolation from utility power disturbances without any switching delay during outages or voltage fluctuations.
What communication options are available for monitoring and control?
The UPS includes RS-232 serial and USB ports for local management with included Intelligent Power Software. For remote monitoring, an optional NETWORK-M2 Gigabit network card can be added, providing web-based access, SNMP support, and integration with network management systems for complete remote control capabilities.
What is included in the package for installation?
The package contains the 9PX 3000VA UPS unit, 4-post rail kit for rack mounting, tower pedestals for standalone use, output cables, input cables, cable lockers, RS-232 serial cable, USB cable, Intelligent Power Software Suite CD, safety manual, and user manual. This comprehensive kit supports both rack and tower deployment without requiring additional parts.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
200 V AC,208 V AC,220 V AC,230 V AC,240 V AC.
