Eaton 9PX3K3UNP1G2 9PX G2 3000VA/3kW Rack/Tower UPS - 6U - 230V AC Input - Pure Sine Wave - 7. 5 Min Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

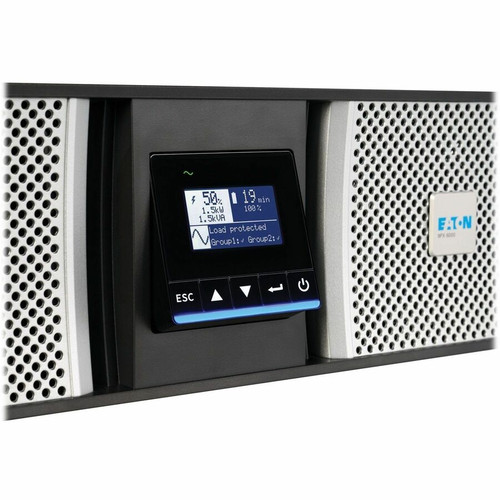

This double conversion online UPS continuously conditions power, isolating connected equipment from surges, sags, and frequency variations. The LCD display provides real-time status monitoring, while LED indicators and audible alarms alert to utility failure, low battery, overload, and fault conditions.
Connectivity includes serial and USB ports for local management, plus an EPO (Emergency Power Off) port for safety. The EMI/RFI noise filter and surge suppression protect against electrical interference. Efficiency reaches 98.3% in Eco Mode, reducing operational costs and heat output.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Power Quality
Pure sine wave output ensures compatibility with active PFC power supplies and sensitive electronics, preventing equipment damage and data corruption.
- Waveform Type: Pure Sine Wave
- Efficiency: 96.1% (AC Mode), 98.3% (Eco Mode)
- Surge Suppression: Yes
Key Product Advantages
The Eaton 9PX G2 combines robust power protection with flexible deployment and intelligent management. Its 3 kVA capacity supports high-density racks, while the rack/tower convertible design adapts to space constraints. The included NETWORK-M3 Gigabit Network Card enables remote monitoring and management via network interfaces.
High Availability Design
Hot-swappable batteries and a built-in bypass switch allow maintenance and battery replacement without interrupting connected loads, maximizing uptime.
- Hot Swappable: Yes
- Built-in Bypass Switch
- Replaceable Battery: Yes
Comprehensive Outlet Configuration

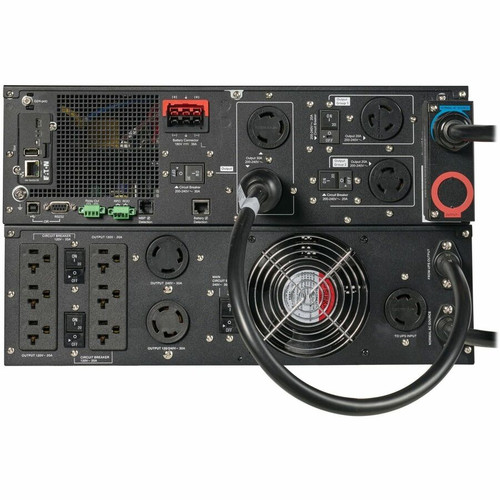

Eight outlets include six NEMA 5-20R and two locking receptacles (NEMA L6-30R, NEMA L14-30R), accommodating mixed IT and server loads.
- Receptacle Detail: 6 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R

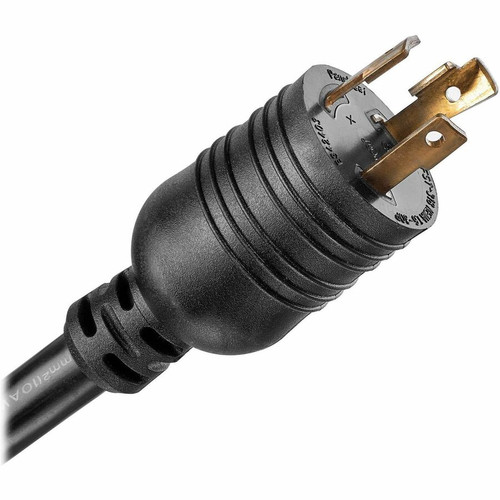

- Plug Type: NEMA L6-30P
- Cord Length: 10 ft (3.05 m)
Deployment / Use Cases
This UPS is tailored for environments where power continuity is non-negotiable. Its 3000VA capacity and pure sine wave output make it ideal for protecting server racks, network switches, storage arrays, and edge computing nodes in data centers, corporate IT closets, and industrial settings.
Applications extend to healthcare, education, government, and retail sectors, where it safeguards electronic equipment against data loss and hardware damage during outages. The 6U rack-mount footprint optimizes space in standard server racks, while tower stands offer flexibility for standalone installations.
Data Center & Network Closet
Provides runtime for graceful shutdown of virtualized servers and core networking gear, with network management for integration into existing monitoring systems.
- Application: Data Center, Network Equipment
- Network Management: Network-M3 Card, INDGW-M2 Card, Relay-MS Card
Edge & Industrial Computing
Operates reliably in temperatures from 32°F to 104°F, supporting IT equipment in remote or harsh environments with stable power delivery.
- Application: Edge Computing, Electronic
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Physical Profile

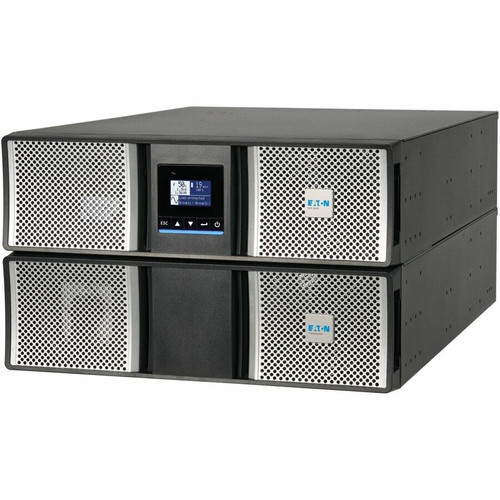

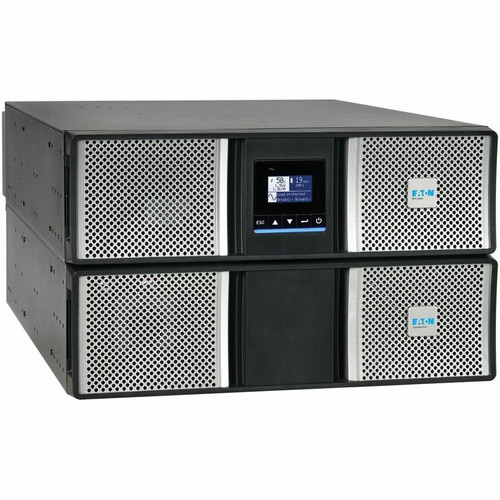

The UPS occupies 6U of rack space, with a weight of 203 pounds. Its robust construction includes integrated rack-mounting hardware and tower support stands for versatile installation. The design facilitates front-access maintenance, with clear status indicators and controls for operational ease.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6U, 203 lb (92079.25 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 6U
- Weight
- 203 lb (92079.25 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 3000VA/3kW double conversion online UPS for mission-critical IT equipment
- 6U rack/tower convertible form factor with included mounting hardware
- Pure sine wave output ensures compatibility with sensitive electronics
- Up to 7.5 minutes runtime at full load, 18.5 minutes at half load
- Hot-swappable batteries enable maintenance without downtime
- Includes NETWORK-M3 Gigabit Network Card for remote management
- Eight outlets: six NEMA 5-20R, one L6-30R, one L14-30R
- 230V AC input with wide output voltage compatibility (100-240V AC)
- 3-year limited warranty and Energy Star certified
- RoHS compliant, manufactured in the Philippines
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX3K3UNP1G2 |
| Brand Name | Eaton |
| Product Series | 9PX G2 |
| Product Model | 9PX3K3UNP1G2 |
| Product Name | 9PX G2 9PX3K3UNP1G2 3000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA 5-20R,NEMA L6-30R,NEMA L14-30R |
| Receptacle Detail | 6 x NEMA 5-20R,1 x NEMA L6-30R,1 x NEMA L14-30R |
| Cord Length | 10 ft (3.05 m) |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 96.1% (AC Mode),98.3% (Eco Mode) |
| Application/Usage | Mission Critical Equipment,Network,IT Equipment,Data Center,Electronic,Edge Computing,Education,Government,Healthcare,Retail,Server,Switch,Network Equipment |
| Surge Suppression | Yes |
| Features | Built-in Bypass Switch,Audible Alarm,Advanced Battery Management (ABM+) |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 230 V AC |
| Input Current | 15.30 A |
| Output Voltage | 240 V AC,230 V AC,220 V AC,208 V AC,200 V AC,100 V AC,110 V AC,120 V AC |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network-M3 Card,INDGW-M2 Card,Relay-MS Card |
| Alarm | Utility Power Failure,Low Battery,Overload,UPS Fault,Battery Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | LED Indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7.50 Minute |
| Backup/Run Time (Half Load) | 18.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 471 BTU/h |
| Physical Characteristics | |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 203 lb (92079.25 g) |
| Miscellaneous | |
| Package Contents | 9PX G2 9PX3K3UNP1G2 3000VA Rack/tower UPS 9PXPPDM1G2 PowerPass Distribution Module with Maintenance Bypass NETWORK-M3 Gigabit Network Card USB Cable RS-232 Cable Rack-mounting Hardware Tower Support Stands Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9PX G2 9PX3K3UNP1G2 has a load capacity of 3 kVA (3000VA) and 3 kW. This double conversion online UPS can support high-density server racks, network switches, and storage equipment, providing clean, stable power during outages or fluctuations.
How long does the battery last during a power outage?
At full load (3 kW), the battery provides 7.5 minutes of runtime. At half load (1.5 kW), runtime extends to 18.5 minutes. This allows sufficient time for connected equipment to perform graceful shutdowns or ride through short interruptions, protecting data and hardware.
What type of outlets are included on this UPS?
The UPS features eight outlets: six standard NEMA 5-20R receptacles, one NEMA L6-30R locking receptacle, and one NEMA L14-30R locking receptacle. This mix accommodates various IT devices and servers, with the locking outlets securing higher-power equipment connections.
Can this UPS be mounted in a server rack?
Yes, this is a 6U rack-mount UPS that also includes tower support stands for flexible deployment. It comes with all necessary rack-mounting hardware, making it suitable for standard 19-inch server racks in data centers or network closets.
What management capabilities does this UPS offer?
The UPS includes a NETWORK-M3 Gigabit Network Card for remote monitoring and management over a network. It also has serial and USB ports for local management, an LCD display for status, and supports alarms for utility failure, low battery, overload, and faults.
How long does it take to recharge the batteries?
The typical battery recharge time is 3 hours. This fast recovery ensures the UPS is ready for subsequent outages quickly. The Advanced Battery Management (ABM+) system optimizes charging to extend overall battery life and maintain reliability.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
