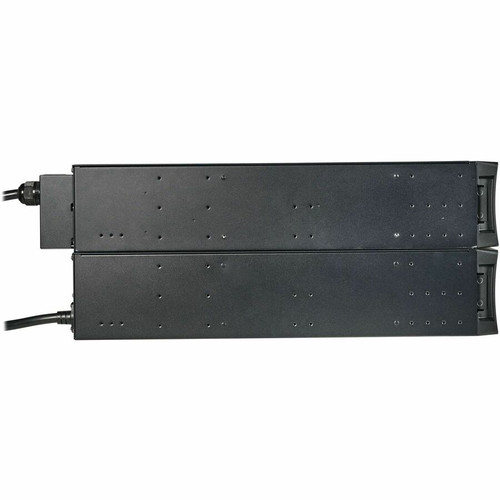

Eaton 9PX3K3UNTF5G2 9PX G2 3000VA Rack/Tower UPS - 3 kVA/3 kW - 230V AC Input - 6U - 7. 5 Min Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS accepts 230V AC single-phase input and provides output voltages ranging from 100V to 240V AC, supporting both 50 Hz and 60 Hz frequencies. The unit achieves high efficiency with 96.1% in AC mode and 98.3% in Eco mode, reducing operational costs and heat generation.
Advanced Battery Management (ABM+) extends battery life through intelligent charging, while hot-swappable, valve-regulated lead-acid batteries allow for maintenance without downtime. The system includes comprehensive alarms for utility power failure, low battery, overload, UPS fault, battery fault, and remote shutdown.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Eaton 9PX G2 UPS combines robust power protection with flexible deployment options, offering both rack-mount and tower configurations. Its 6U rack height optimizes space in standard server cabinets, while the included tower support stands enable standalone installation where rack space is unavailable.
High-Efficiency Operation
With efficiency up to 98.3% in Eco mode, this UPS minimizes energy loss and reduces cooling requirements, contributing to lower total cost of ownership.
- 96.1% efficiency in AC mode
- 98.3% efficiency in Eco mode
- Reduced thermal dissipation
Comprehensive Management

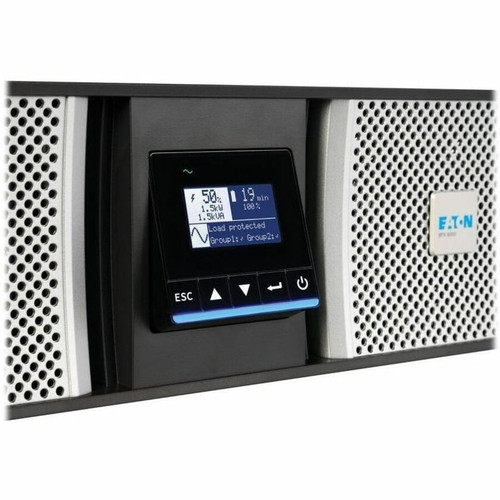

Integrated network management cards provide remote monitoring and control, while the LCD display offers local status visibility and configuration.
- Supports Network-M3, INDGW-M2, and Relay-MS cards
- LCD display for real-time metrics
- USB and serial connectivity
Flexible Power Distribution
The unit includes 18 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R receptacles, plus a hardwired option, accommodating diverse equipment connections.
- Multiple receptacle types
- Hardwired connection capability
- 10 ft input cord
Deployment / Use Cases
This UPS is engineered for environments where power continuity is non-negotiable. Its 7.5-minute runtime at full load provides sufficient time for graceful shutdowns or transition to backup generators, protecting data integrity and preventing hardware damage.
Ideal for server rooms, network switches, storage arrays, and edge computing nodes, the unit safeguards against data loss and operational disruption. Applications span education, government, healthcare, retail, and industrial sectors, supporting critical infrastructure during power outages.
Data Center & Server Room
Provides backup power for servers, storage, and networking equipment, ensuring uninterrupted operation during utility failures.
- Supports mission-critical equipment
- Compatible with IT and network gear
- Rack-optimized 6U design
Edge Computing & Remote Sites
Delivers reliable power protection for distributed IT assets, maintaining connectivity and processing capabilities in off-site locations.
- Suitable for edge deployments
- Wide operating temperature range
- Remote management capable
Physical Profile
The UPS measures 10.20" (259.08 mm) in height, 17.30" (439.42 mm) in width, and 27" (685.80 mm) in depth, with a 6U rack height. Its 203 lb weight reflects robust construction and substantial battery capacity. The rack/tower form factor includes mounting hardware and tower stands for versatile installation in server cabinets or as a standalone unit.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 10.20" (259.08 mm), 17.30" (439.42 mm), 27" (685.80 mm), 203 lb (92079.25 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 27" (685.80 mm)
- Height
- 10.20" (259.08 mm)
- Weight
- 203 lb (92079.25 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the Eaton 9PX G2 3000VA rack/tower UPS, a 9PXTFMR5G2 120V step-down transformer, a NETWORK-M3 gigabit network card, USB cable, RS-232 cable, cable gland for hardwire connection, rack-mounting hardware, tower support stands, and a quick start guide.
Highlights
- 3000VA/3000W double-conversion online UPS for mission-critical power protection
- 7.5-minute runtime at full load and 18.5-minute runtime at half load
- Rack/tower convertible design with 6U rack height and included tower stands
- 230V AC input with wide output voltage range (100V-240V AC)
- Includes Network-M3, INDGW-M2, and Relay-MS network management card support
- Hot-swappable, valve-regulated lead-acid batteries with 3-hour recharge time
- Pure sine wave output ensures compatibility with sensitive electronics
- Energy Star certified and RoHS compliant for environmental responsibility
- 3-year limited warranty backed by Eaton reliability
- Multiple receptacle types: 18 NEMA 5-20R, 2 NEMA L6-20R, 1 NEMA L6-30R
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX3K3UNTF5G2 |
| Brand Name | Eaton |
| Product Series | 9PX G2 |
| Product Model | 9PX3K3UNTF5G2 |
| Product Name | 9PX G2 9PX3K3UNTF5G2 3000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P,Hardwired |
| Receptacle Type | NEMA 5-20R,NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 18 x NEMA 5-20R,2 x NEMA L6-20R,1 x NEMA L6-30R,1 x Hardwired |
| Cord Length | 10 ft (3.05 m) |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 96.1% (AC Mode),98.3% (Eco Mode) |
| Application/Usage | Mission Critical Equipment,Network,IT Equipment,Data Center,Electronic,Edge Computing,Education,Government,Healthcare,Retail,Server,Switch,Network Equipment |
| Surge Suppression | Yes |
| Features | Audible Alarm,Advanced Battery Management (ABM+) |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 230 V AC |
| Input Current | 15.30 A |
| Output Voltage | 240 V AC,230 V AC,220 V AC,208 V AC,200 V AC,100 V AC,110 V AC,120 V AC |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network-M3 Card,INDGW-M2 Card,Relay-MS Card |
| Alarm | Utility Power Failure,Low Battery,Overload,UPS Fault,Battery Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | LED Indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7.50 Minute |
| Backup/Run Time (Half Load) | 18.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 471 BTU/h |
| Physical Characteristics | |
| Height | 10.20" (259.08 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 27" (685.80 mm) |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 203 lb (92079.25 g) |
| Miscellaneous | |
| Package Contents | 9PX G2 9PX3K3UNTF5G2 3000VA Rack/tower UPS 9PXTFMR5G2 120V Step-down Transformer NETWORK-M3 Gigabit Network Card USB Cable RS-232 Cable Cable Gland for Hardwire Connection Rack-mounting Hardware Tower Support Stands Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9PX G2 UPS has a load capacity of 3 kVA (3000 VA) and 3 kW (3000 watts). This capacity supports critical equipment like servers, network switches, and storage arrays during power outages, providing sufficient runtime for graceful shutdowns or backup power activation.
How long does the battery last during a power outage?
At full load, the UPS provides 7.5 minutes of runtime. At half load, runtime extends to 18.5 minutes. These durations allow time to save data, initiate shutdown procedures, or switch to an alternate power source, minimizing disruption and data loss.
Can this UPS be installed in a server rack?
Yes, this UPS features a rack/tower convertible design. It occupies 6U of rack space and includes rack-mounting hardware. Tower support stands are also included for standalone deployment, offering flexibility for data centers, server rooms, or office environments.
What input voltage does the UPS require?
The UPS requires a 230V AC single-phase input. It accepts this input through a NEMA L6-30P plug or hardwired connection, with a 10-foot cord provided. This voltage is common in commercial and industrial settings for powering IT infrastructure.
What types of outlets are available on this UPS?
The unit includes 18 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R receptacles, plus a hardwired option. This variety accommodates different plug types for servers, networking equipment, and other devices, supporting flexible power distribution.
How is the UPS managed and monitored?
Management options include an LCD display for local status, and support for Network-M3, INDGW-M2, and Relay-MS network cards for remote monitoring. The UPS also features USB, serial, and EPO ports, along with audible alarms and LED indicators for comprehensive control.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
