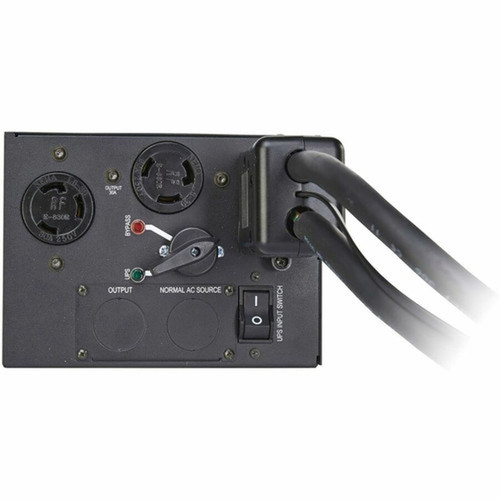

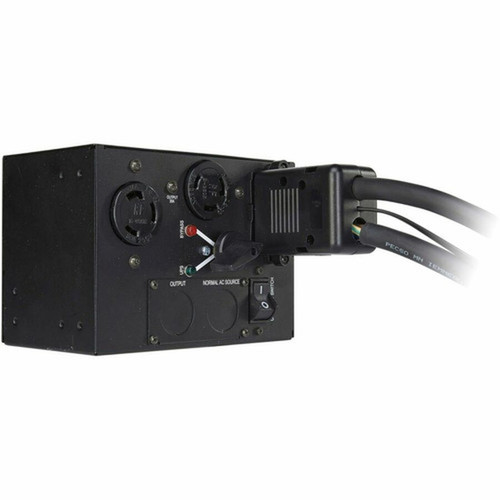

Eaton MBP6K208 Bypass Switch - 208 V AC - 3U Rack-Mountable for 9PX UPS Systems
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Eaton MBP6K208 is a maintenance bypass switch that operates at 208 V AC input, matching the voltage requirements of compatible Eaton UPS systems. It is specifically validated for use with Eaton 9PX5K, 9PX6K, and 9PX3K3UN UPS models, ensuring electrical compatibility and safe operation within the 5kVA to 6kVA power range.
This switch supports multiple installation methods, including 3U rack mounting, tower placement, or wall mounting using the included hardware. The 3U rack height optimizes space efficiency in standard server racks, while the approximate weight of 8.40 lb (3810.18 g) ensures manageable handling during deployment.
Relevant factors for this section include Input Voltage, Form Factor, Rack Height, Weight (Approximate). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Eaton MBP6K208 Bypass Switch delivers essential advantages for maintaining power continuity and simplifying UPS service procedures. Its design focuses on safety, flexibility, and compatibility to support uninterrupted operations in critical IT environments.
Zero-Downtime Maintenance
Enables safe isolation of the UPS from connected loads during maintenance, allowing work on the UPS without powering down protected equipment.
- Prevents service interruptions
- Supports firmware updates
- Facilitates battery replacement
Versatile Installation Options
Designed for 3U rack mounting, tower placement, or wall mounting, providing flexibility to fit various space constraints and deployment preferences.
- Includes installation hardware
- Optimizes rack space
- Adapts to room layout
Validated Compatibility
Specifically compatible with Eaton 9PX5K, 9PX6K, and 9PX3K3UN UPS systems, ensuring reliable performance and electrical safety within the 5kVA to 6kVA range.
- Engineered for Eaton UPS
- Ensures safe operation
- Supports 208 V AC input
Deployment / Use Cases
The Eaton MBP6K208 Bypass Switch is ideal for data centers, server rooms, network closets, and other environments where Eaton 9PX UPS systems are deployed to protect critical IT infrastructure. It addresses the need for non-disruptive maintenance and enhances the overall reliability of power protection setups.
Common use cases include scheduled UPS maintenance, battery replacement cycles, firmware upgrades, and diagnostic testing. By integrating this bypass switch, organizations can perform these tasks without risking downtime for servers, storage arrays, networking equipment, or other connected devices.
Data Center UPS Maintenance
Deploy in data centers to safely bypass Eaton 9PX UPS systems during routine service, ensuring continuous power to servers and storage without interruption.
Server Room Power Management
Use in server rooms to isolate UPS units for firmware updates or battery swaps, maintaining uptime for critical business applications and network infrastructure.
Physical Profile
The Eaton MBP6K208 Bypass Switch features a compact and durable design with a 3U rack height, making it suitable for standard 19-inch server racks. Its form factor supports rack-mountable, tower, or wall-mount installations, providing flexibility for various space configurations. The switch weighs approximately 8.40 lb (3810.18 g), ensuring it is lightweight enough for easy handling while robust enough for stable deployment in professional environments.
- Height
- 3U
- Weight
- 8.40 lb (3810.18 g)
Highlights
- Enables safe UPS maintenance without powering down connected equipment
- Designed for 208 V AC input, compatible with Eaton 9PX5K/6K/3K3UN UPS systems
- Supports 3U rack mounting, tower placement, or wall mounting
- Includes installation hardware for versatile deployment
- 3U rack height optimizes space in standard server racks
- Weighs approximately 8.40 lb (3810.18 g) for manageable installation
- Backed by a 3-year limited warranty for reliability assurance
- Manufactured in Morocco with Eaton quality standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | MBP6K208 |
| Brand Name | Eaton |
| Product Name | Bypass Switch |
| Product Type | Bypass Switch |
| Power Description | |
| Input Voltage | 208 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Weight (Approximate) | 8.40 lb (3810.18 g) |
| Miscellaneous | |
| Compatibility | Eaton 5kVA and 6kVA 9PX UPS |
| Country of Origin | Morocco |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the input voltage of the Eaton MBP6K208 Bypass Switch?
The Eaton MBP6K208 Bypass Switch operates at 208 V AC input. This voltage matches the requirements of compatible Eaton 9PX UPS systems, ensuring safe and effective integration into power protection setups for data centers and server rooms.
Which Eaton UPS models are compatible with this bypass switch?
This bypass switch is compatible with Eaton 9PX5K, 9PX6K, and 9PX3K3UN UPS systems. It is validated for use within the 5kVA to 6kVA power range, providing a reliable maintenance solution for these specific UPS models in critical IT environments.
How is the Eaton MBP6K208 installed?
The Eaton MBP6K208 supports multiple installation methods: 3U rack mounting, tower placement, or wall mounting. It includes the necessary installation hardware, allowing flexibility to fit various space constraints and deployment preferences in data centers or server rooms.
What is the rack height of this bypass switch?
The Eaton MBP6K208 has a rack height of 3U, making it suitable for standard 19-inch server racks. This compact design optimizes space efficiency while providing the functionality needed for safe UPS maintenance without disrupting connected equipment.
What warranty covers the Eaton MBP6K208 Bypass Switch?
The Eaton MBP6K208 Bypass Switch is backed by a 3-year limited warranty. This warranty provides assurance of reliability and support, reflecting Eaton's commitment to quality in power management accessories for business IT infrastructure.
Why is a bypass switch important for UPS maintenance?
A bypass switch like the Eaton MBP6K208 is crucial because it allows IT staff to safely isolate the UPS from connected loads during maintenance, battery replacement, or firmware updates. This prevents power interruptions to critical equipment, ensuring continuous operations and enhancing overall system reliability in data centers and server rooms.
