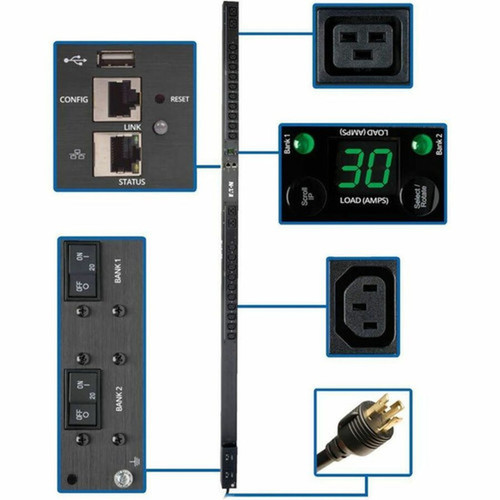

Tripp Lite by Eaton PDUMNV30HVLX Eaton 5. 8kW Single-Phase Monitored PDU - 20x C13 & 4x C19 Outlets - NEMA L6-30P - 230V AC - 0U Rack-Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates on single-phase power with a 230V AC input voltage that accepts a range from 200V to 240V AC. The unit delivers output voltages of 200V, 208V, or 240V AC through its combination of 20 IEC C13 and 4 IEC C19 receptacles, supporting both standard and high-power equipment connections.
The PDUMNV30HVLX features a 30A input current capacity and utilizes a NEMA L6-30P plug for secure power connection. Its comprehensive management suite includes industry-standard protocols for flexible integration into diverse IT environments, from small server rooms to enterprise data centers.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDUMNV30HVLX combines high-density power distribution with advanced monitoring capabilities in a space-saving 0U form factor. Its vertical mounting orientation and slim 2.2-inch width make it ideal for crowded rack environments where horizontal space is at a premium.
Comprehensive Monitoring
Monitor voltage, frequency, and load levels remotely through multiple protocols including SNMPv1/v2/v3, HTTP/HTTPS, and SSH for complete visibility into power conditions.
- Real-time load monitoring
- Multi-protocol support
- Network integration
High-Density Power Distribution
Distribute 5.8kW of power across 24 outlets with mixed IEC C13 and C19 connectors to accommodate both standard and high-power equipment in the same rack.
- 20 x C13 outlets
- 4 x C19 outlets
- 5.8kW capacity
Space-Efficient Design
The 0U vertical mounting requires no rack units, preserving valuable horizontal space for servers and networking equipment while providing full power distribution capabilities.
- Zero rack units
- Vertical orientation
- Slim profile
Deployment / Use Cases
This monitored PDU is specifically designed for data center environments where precise power management and space optimization are critical. Its 0U vertical mounting makes it ideal for full-height server racks where every horizontal rack unit needs to be preserved for compute or storage equipment.
The PDUMNV30HVLX serves effectively in server rooms supporting mixed equipment types, from standard 1U servers using C13 connections to high-power storage arrays or networking gear requiring C19 connections. The monitoring capabilities make it particularly valuable for environments requiring compliance reporting, capacity planning, or proactive power management.
Data Center Power Distribution
Provide monitored power to server racks with mixed equipment types while maintaining complete visibility into power consumption and conditions.
High-Density Server Environments
Maximize rack space utilization by using vertical 0U mounting for power distribution, freeing horizontal rack units for additional servers or storage.
Physical Profile
The PDUMNV30HVLX features a vertical mounting design with dimensions of 70 inches in height, 2.20 inches in width, and 2.65 inches in depth. This slim profile allows installation in standard 19-inch racks without consuming horizontal rack units. The unit weighs approximately 11.50 pounds and includes all necessary mounting hardware for secure rack installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.20" (55.88 mm), 2.65" (67.31 mm), 11.50 lb (5216.31 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.20" (55.88 mm)
- Depth
- 2.65" (67.31 mm)
- Height
- 0U
- Weight
- 11.50 lb (5216.31 g)
What's in the Box
The PDUMNV30HVLX ships complete with all components needed for installation and operation.
Highlights
- 5.8kW single-phase monitored PDU with comprehensive remote management capabilities
- 24 total outlets: 20 IEC C13 and 4 IEC C19 receptacles for mixed equipment support
- NEMA L6-30P input plug with 230V AC input voltage (200-240V AC range)
- 0U vertical rack mounting preserves horizontal rack space for servers and equipment
- Remote monitoring via HTTP, HTTPS, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, and NTP
- Dimensions: 70" H x 2.20" W x 2.65" D with vertical mounting orientation
- 2-year limited warranty with RoHS compliance and TAA compliance
- Includes mounting hardware, cable ties, cord retention brackets, and configuration cable
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNV30HVLX |
| Brand Name | Eaton |
| Product Name | PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 20 x IEC 60320 C13,4 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC,240 V AC |
| Power Rating (Watt) | 5.80 kW |
| Input Current | 30 A |
| Management | |
| Management | HTTP HTTPS SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.65" (67.31 mm) |
| Weight (Approximate) | 11.50 lb (5216.31 g) |
| Miscellaneous | |
| Package Contents | PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU Configuration cable 24 x Cable ties 2 x Cord retention brackets Rack-mounting hardware PDUMVROTATEBRKT mounting bracket accessory Owner's manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the Eaton PDUMNV30HVLX PDU?
The Eaton PDUMNV30HVLX has a power rating of 5.80 kW (5,800 watts). This capacity is delivered through a 30A input current at 230V AC input voltage, making it suitable for powering multiple servers and networking equipment in a rack environment.
How many outlets does this PDU have and what types are they?
This PDU provides 24 total outlets consisting of 20 IEC 60320 C13 receptacles and 4 IEC 60320 C19 receptacles. The C13 outlets are standard for most server and networking equipment, while the C19 outlets support higher-power devices such as storage arrays or high-performance servers.
What rack mounting configuration does this PDU support?
The PDUMNV30HVLX is designed for vertical 0U rack mounting. This means it mounts vertically on the side or rear of a standard 19-inch rack without consuming any horizontal rack units, preserving all rack space for servers, switches, and other equipment while still providing full power distribution.
What management protocols are supported for remote monitoring?
This monitored PDU supports HTTP, HTTPS, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, and NTP protocols. This comprehensive protocol support allows integration with existing network management systems for real-time monitoring of voltage, frequency, and load levels.
What input voltage does this PDU require and what is the acceptable range?
The PDUMNV30HVLX requires a 230V AC input but accepts a range from 200V to 240V AC. It uses a NEMA L6-30P plug for connection and delivers output voltages of 200V, 208V, or 240V AC to connected equipment, providing flexibility for different power configurations.
What is included in the package with this PDU?
The package includes the PDUMNV30HVLX PDU unit, a configuration cable, 24 cable ties, 2 cord retention brackets, complete rack-mounting hardware, a PDUMVROTATEBRKT mounting bracket accessory, and an owner's manual. All necessary components for installation and operation are provided.
What power capacity is listed for this UPS?
The listed power specification is 5.80 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
