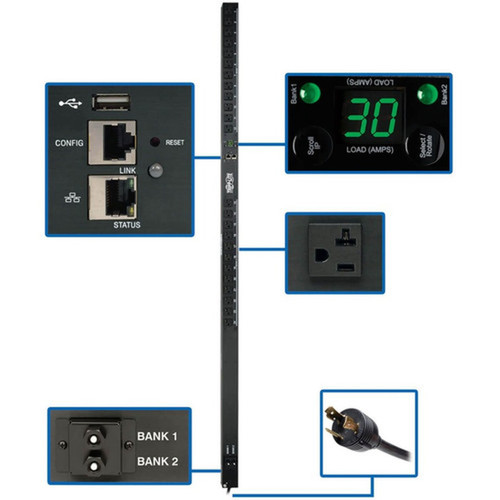

Tripp Lite by Eaton PDUMNV30LX 2. 9kW Single-Phase Monitored PDU - 24 NEMA 5-15/20R Outlets - NEMA L5-30P Input - 120V AC - 0U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates at 120V AC input and output, with a power rating of 2.88 kW. It features overload protection to safeguard connected equipment and ensure stable power distribution across all 24 outlets.
The unit supports a wide range of management protocols including IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, and NTP, enabling seamless integration into existing network management systems. Remote outlet switching allows for individual outlet control, facilitating power cycling of specific devices without physical access.
Relevant factors for this section include PDU Type, Design, Phase, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDUMNV30LX provides centralized power visibility and control, helping prevent overloads before they impact critical infrastructure. Its monitored design delivers real-time power metrics and alerts, enabling proactive capacity planning and reducing unplanned downtime.
Network-Enabled Management
Full remote management via Ethernet supports granular outlet control, power monitoring, and integration with data center infrastructure management (DCIM) tools.
- IPv4/IPv6 support
- SNMP v1/v2/v3
- SSH and HTTPS for secure access
Space-Efficient Rack Design
The 0U vertical mounting orientation conserves rack space by mounting on the rear rails, leaving U-space free for servers and other equipment.
- 70" height
- 2.19" width
- Vertical mounting only
Comprehensive Safety Features
Built-in overload protection and cord retention brackets help prevent electrical hazards and ensure secure cable management in high-density environments.
- Overload protection
- Cord retention brackets included
- RoHS compliant
Deployment / Use Cases
This PDU is ideal for server rooms, data centers, and network closets where multiple devices require reliable, monitored power distribution. Its 24 outlets support a mix of servers, switches, and other rack-mounted equipment while providing individual outlet control and power monitoring.
The vertical 0U mounting makes it particularly valuable in full-height racks where maximizing U-space for active equipment is essential. IT teams can deploy it in environments requiring compliance reporting, power usage effectiveness (PUE) tracking, or remote management capabilities.
Data Center Power Distribution
Distribute power to server racks while monitoring consumption at the outlet level for accurate chargeback and capacity planning.
Network Equipment Support
Power multiple switches, routers, and security appliances with the ability to remotely reboot individual devices as needed.
Physical Profile
The PDUMNV30LX features a slim vertical design measuring 70" (1778 mm) in height, 2.19" (55.63 mm) in width, and 1.75" (44.45 mm) in depth. Its 0U rack-mountable configuration mounts vertically on rack rear rails without consuming usable U-space. The unit weighs approximately 11.50 lb (5216.31 g) and includes all necessary mounting hardware for secure installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.19" (55.63 mm), 1.75" (44.45 mm), 11.50 lb (5216.31 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.19" (55.63 mm)
- Depth
- 1.75" (44.45 mm)
- Height
- 0U
- Weight
- 11.50 lb (5216.31 g)
What's in the Box
The package includes everything needed for immediate deployment and proper installation.
Highlights
- 2.9kW single-phase monitored PDU with 24 NEMA 5-15/20R outlets
- NEMA L5-30P input connector supports 30A at 120V AC
- Network-enabled via RJ-45 with comprehensive protocol support
- Remote outlet switching for individual device control
- 0U vertical rack-mountable design conserves rack space
- Overload protection safeguards connected equipment
- Modular design with built-in LX platform interface
- Includes cord retention brackets and mounting hardware
- RoHS compliant and environmentally friendly
- 2-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNV30LX |
| Brand Name | Eaton |
| Product Model | PDUMNV30LX |
| Product Name | PDUMNV30LX 2.9kW Single-Phase Monitored PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Design | Modular |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 2.88 kW |
| Input Current | 30 A |
| Management | |
| Management | IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.19" (55.63 mm) |
| Depth | 1.75" (44.45 mm) |
| Weight (Approximate) | 11.50 lb (5216.31 g) |
| Miscellaneous | |
| Package Contents | PDUMNV30LX 2.9kW Single-Phase Monitored PDU Built-in LX Platform Interface Configuration Cable 24 x Cable ties 2 x Cord retention brackets Rack-mounting hardware PDUMVROTATEBRKT Mounting Bracket Accessory Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Eaton PDUMNV30LX has a power rating of 2.88 kW (2880 watts) at 120V AC. It supports up to 30A input current through its NEMA L5-30P connector, distributing power across 24 outlets while providing overload protection to prevent circuit overloading.
How many outlets does this PDU have and what type are they?
This PDU features 24 NEMA 5-15/20R outlets. These combination outlets accept both NEMA 5-15P (15A) and NEMA 5-20P (20A) plugs, providing flexibility for connecting various server, network, and storage devices commonly found in rack environments.
What management capabilities does this monitored PDU offer?
The PDUMNV30LX offers comprehensive network management through its built-in LX platform interface. It supports multiple protocols including SNMP v1/v2/v3, HTTP/HTTPS, SSH, and telnet for secure remote access. Administrators can monitor real-time power metrics, set alert thresholds, and control individual outlets remotely for power cycling or scheduled shutdowns.
How is this PDU mounted in a rack?
This PDU uses a 0U vertical mounting configuration that installs on the rear rails of standard 19-inch racks. The vertical orientation and slim 2.19" width conserve valuable U-space for active equipment. The package includes all necessary mounting hardware and the PDUMVROTATEBRKT bracket accessory for secure installation.
What safety features are included with this power distribution unit?
The PDU incorporates overload protection to prevent circuit overloading and potential damage to connected equipment. It also includes cord retention brackets to secure power cables and prevent accidental disconnection. The unit is RoHS compliant and meets environmental standards for hazardous substance restriction.
What is included in the package with this PDU?
The complete package includes the PDUMNV30LX PDU unit, a configuration cable for the built-in LX platform interface, 24 cable ties for organized cable management, 2 cord retention brackets, all necessary rack-mounting hardware, the PDUMVROTATEBRKT mounting bracket accessory, and a comprehensive owner's manual for installation and operation guidance.
