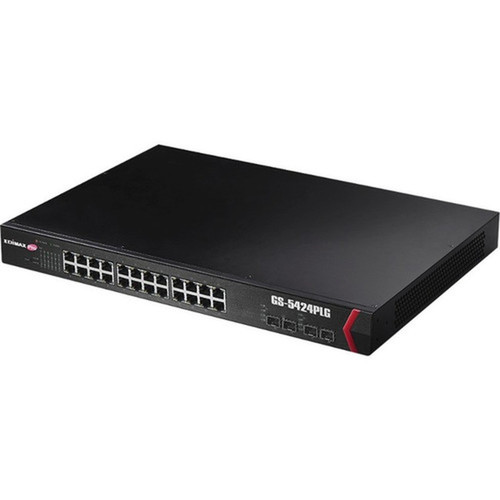

Edimax GS-5424PLG 24-Port Gigabit PoE+ Web Smart Switch with 4 SFP Slots - Layer 2 Managed - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers Gigabit Ethernet performance across all 24 ports, supporting 1000Base-T for twisted pair cabling and 1000Base-X for fiber connections via the SFP slots. The four dedicated SFP slots allow for fiber uplinks or long-distance connections without sharing bandwidth with the copper ports.
Layer 2 switching features include support for essential protocols like IGMP snooping, port mirroring, and spanning tree, providing a robust foundation for network segmentation and traffic management. The built-in power supply ensures stable operation, while the manageable design enables administrators to configure VLANs, QoS, and security settings through a web interface.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS-5424PLG offers a balanced mix of port density, PoE+ support, and management capabilities at an accessible price point for growing networks.
High-Density PoE+ Connectivity
With 24 Gigabit PoE+ ports, this switch can power devices like IP cameras, wireless access points, and VoIP phones while delivering data, reducing cable clutter and installation costs.
- Supports PoE+ for higher power devices
- Eliminates separate power adapters
Flexible Uplink Options
The four SFP slots provide fiber connectivity options for uplinks to core switches or connections between buildings, offering greater distance and noise immunity compared to copper.
- Dedicated SFP slots for fiber expansion
- Compatible with various SFP modules
Professional Rack Deployment
The 1U rack-mountable design fits standard 19-inch racks, with dimensions optimized for data center or wiring closet installations where space efficiency matters.
- Standard 1U height
- Rack ears included for mounting
Deployment / Use Cases
This switch is ideal for environments requiring multiple connected devices with power and data over a single cable. Its web smart management makes it suitable for networks where basic configuration control is needed without the complexity of full CLI management.
Common deployment scenarios include small business offices with IP phones and security cameras, retail locations with point-of-sale systems and wireless access points, and educational settings with classroom technology. The SFP slots enable connections to fiber backbones in larger installations or links between buildings in campus environments.
Small Business Network Core
Serve as the main switch for offices with 20-30 devices, providing PoE+ for phones and access points while offering management for network segmentation.
Surveillance System Backbone
Power and connect multiple IP cameras in security installations, with fiber uplinks for long-distance connections to recording servers.
Physical Profile
The switch measures 1.73 inches in height (44 mm), 12.20 inches in width (310 mm), and 17.36 inches in length (441 mm), with a weight of approximately 8.91 pounds (4040 g). The compact 1U design maximizes rack space efficiency while providing adequate cooling for sustained operation. The rack-mountable form factor includes mounting hardware for secure installation in standard server racks or network cabinets.
- Width
- 12.20" (310 mm)
- Height
- 1.73" (44 mm)
- Weight
- 8.91 lb (4040 g)
- Length
- 17.36" (441 mm)
Highlights
- 24 Gigabit Ethernet ports with PoE+ support for powered devices
- 4 dedicated SFP slots for fiber uplink expansion
- Layer 2 web smart management with VLAN and QoS capabilities
- 1U rack-mountable form factor for standard server racks
- Supports both twisted pair and optical fiber media types
- Built-in power supply for stable operation
- Gigabit Ethernet performance across all ports
- Web-based configuration interface for easy management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Edimax Technology |
| Manufacturer Part Number | GS-5424PLG |
| Brand Name | Edimax |
| Product Model | GS-5424PLG |
| Product Name | 24-Port Gigabit PoE+ with 4 SFP Slots Web Smart Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 12.20" (310 mm) |
| Length | 17.36" (441 mm) |
| Weight (Approximate) | 8.91 lb (4040 g) |
FAQ
How many devices can this switch power with PoE+?
The Edimax GS-5424PLG has 24 Gigabit Ethernet ports that all support PoE+. The exact number of devices that can be powered simultaneously depends on the total PoE budget, which should be checked against the power requirements of connected devices like IP cameras, wireless access points, or VoIP phones. Each port can deliver PoE+ power following IEEE 802.3at standards.
What types of SFP modules are compatible with this switch?
This switch has four dedicated SFP slots that support standard SFP modules for Gigabit Ethernet fiber connections. Compatible modules include 1000BASE-SX for multimode fiber, 1000BASE-LX for single-mode fiber, and 1000BASE-T for copper connections. The slots are not shared with the Ethernet ports, providing dedicated expansion without affecting copper port availability.
Is this switch manageable, and what features does it support?
Yes, the GS-5424PLG is a web smart managed switch with Layer 2 capabilities. Management features include VLAN support for network segmentation, QoS for traffic prioritization, port mirroring for monitoring, IGMP snooping for multicast optimization, and spanning tree protocol for loop prevention. Configuration is accessed through a web browser interface rather than a command-line interface.
What are the rack mounting requirements for this switch?
This switch has a 1U form factor designed for standard 19-inch server racks. It includes rack ears for mounting and measures 1.73 inches in height, fitting precisely in one rack unit. The dimensions are 12.20 inches wide and 17.36 inches deep, requiring adequate depth in the rack for proper installation and cable management.
Does this switch support stacking or uplink ports?
The GS-5424PLG does not have dedicated stacking ports or uplink ports. However, the four SFP slots can be used for uplink connections to other switches or network infrastructure. Any of the 24 Gigabit Ethernet ports can also serve as uplinks, though the SFP slots are typically preferred for fiber connections to core switches or between buildings.
What is the difference between web smart and fully managed switches?
Web smart switches like the GS-5424PLG offer management through a web browser interface with essential Layer 2 features, making them suitable for networks needing basic configuration without CLI complexity. Fully managed switches typically include more advanced features, CLI access, and deeper protocol support. This switch provides a balance of manageability and simplicity for small to medium deployments.
