Elo E413396 PoE Module - Black - Surge & ESD Protection for Android I-Series 4.0 Devices
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PoE Module supports IEEE802.3at Power over Ethernet, delivering up to 25.5W of power to compatible devices. It adheres to Ethernet standards including 10BASE-T, 100BASE-TX, and 1000BASE-T, ensuring compatibility with modern network infrastructures. The module's protection circuitry includes surge and ESD safeguards, which help prevent damage from voltage spikes and static discharge.
Certifications include UL/cUL, FCC, IC, CE, CB, VCCI/MIC, and RCM, meeting regulatory requirements across North America, Europe, Japan, and Australia. This broad compliance supports deployment in global markets without additional modifications.
Relevant factors for this section include Protection Type, Product Color, Height, Width. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Elo E413396 simplifies deployments by consolidating power and data into one cable, reducing installation time and material costs. Its integrated electrical protection enhances device longevity, particularly in environments prone to power fluctuations.
Streamlined Installation
Eliminates the need for separate power adapters and outlets near each device, enabling cleaner cable management and more flexible placement options.
- Single-cable power and data
- Reduced cable clutter
- Flexible mounting locations
Enhanced Reliability
Surge and ESD protection circuits help shield connected Elo displays from electrical damage, supporting continuous operation in retail, hospitality, and industrial applications.
- Protects against voltage spikes
- Minimizes downtime risk
- Suitable for harsh environments
Deployment / Use Cases
This PoE Module is ideal for deploying Elo Android I-Series 4.0 touch displays in settings where centralized power management and clean installations are priorities. It supports both wall-mounted and freestanding configurations, adapting to various spatial constraints.
Common applications include digital signage in retail stores, interactive kiosks in hospitality venues, and point-of-sale systems in restaurants. By leveraging PoE, installations can leverage existing network infrastructure for power, avoiding the cost and complexity of adding electrical outlets.
Relevant factors for this section include Protection Type, Product Color, Height, Width. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail Digital Signage
Power Elo touch displays from network switches in back rooms, enabling sleek, cable-free installations on shop floors or in window displays.
Hospitality Kiosks
Deploy interactive kiosks in lobbies or conference areas without visible power cables, maintaining aesthetic appeal while ensuring reliable operation.
Physical Profile

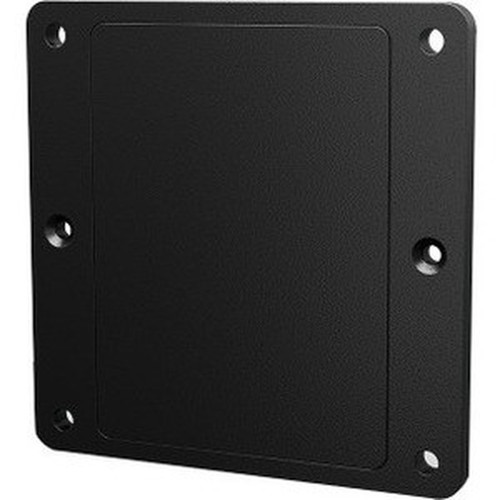

The module features a compact black enclosure measuring 3.46 inches square and 0.74 inches deep, with a weight of just 3.49 ounces. This small form factor allows discreet placement behind displays or within cable management channels. The black finish blends with most Elo device aesthetics, supporting cohesive visual integration.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.46" (87.88 mm), 3.46" (87.88 mm), 0.74" (18.80 mm), 3.49 oz (98.88 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.46" (87.88 mm)
- Depth
- 0.74" (18.80 mm)
- Height
- 3.46" (87.88 mm)
- Weight
- 3.49 oz (98.88 g)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- Adds Power over Ethernet to compatible Elo Android I-Series 4.0 devices
- Supports IEEE802.3at PoE for up to 25.5W power delivery
- Includes surge and ESD protection for enhanced reliability
- Compact black design measures 3.46" x 3.46" x 0.74"
- Weighs only 3.49 oz for easy integration
- Compliant with global certifications (UL/cUL, FCC, CE, etc.)
- Includes installation screws, spacer, and warning label
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E413396 |
| Brand Name | Elo |
| Product Name | PoE Module |
| Packaged Quantity | 1 |
| Product Type | PoE Module |
| Technical Information | |
| Protection Type | Surge Protection,ESD Protection |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.46" (87.88 mm) |
| Width | 3.46" (87.88 mm) |
| Depth | 0.74" (18.80 mm) |
| Weight (Approximate) | 3.49 oz (98.88 g) |
| Miscellaneous | |
| Package Contents | PoE Module Quick Install Guide 2 x M3x8mm Screws (flat head, in a ziplock bag, labeled) 4 x M4x12mm Screws (flat head, in a ziplock bag, labeled) 4 x M4x12mm Screws (pan head, in a ziplock bag, labeled) 1 x POE Spacer Hot Plug Warning Label |
| Compatibility | Elo Android I-Series 4.0 Devices |
| Certifications & Standards | Support Standards IEEE802.3, 10BASE T/1000BASE-T IEEE802.3u,100BASE-TX IEEE802.3at, Power over Ethernet Regulatory approvals and declarations (Google CTS versions) UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What devices are compatible with this PoE Module?
This module is specifically designed for Elo Android I-Series 4.0 touch displays and devices. It adds Power over Ethernet capability to these compatible units, allowing them to receive both data and power over a single Ethernet cable. Verify your Elo device model supports PoE or consult Elo documentation for compatibility details.
What PoE standard does this module support?
The Elo E413396 supports IEEE802.3at Power over Ethernet, which delivers up to 25.5W of power. This standard is commonly used for powering devices like touch displays, access points, and IP phones, ensuring sufficient power for Elo Android I-Series 4.0 devices while maintaining compatibility with PoE switches and injectors.
Does this module include any electrical protection?
Yes, it features both surge protection and ESD (electrostatic discharge) protection. These safeguards help protect connected Elo displays from voltage spikes and static electricity, which can be particularly beneficial in environments with unstable power or where devices are frequently touched, such as retail or public kiosk settings.
What certifications does this PoE Module have?
The module holds multiple regulatory certifications, including UL/cUL for the US and Canada, FCC for the US, IC for Canada, CE for Europe, CB for international markets, VCCI/MIC for Japan, and RCM for Australia. These certifications ensure compliance with safety and electromagnetic standards across major global regions, facilitating deployment in diverse markets.
What is included in the package?
The package contains the PoE Module, a Quick Install Guide, two M3x8mm flat-head screws, four M4x12mm flat-head screws, four M4x12mm pan-head screws, one POE spacer, and a hot plug warning label. These components support straightforward mounting and installation, with screws provided for various mounting scenarios.
What is the warranty period for this product?
Elo provides a 2-year limited warranty for this PoE Module. This warranty covers defects in materials and workmanship under normal use, offering assurance for long-term reliability in commercial deployments. Retain your proof of purchase to facilitate any warranty claims through authorized Elo support channels.
