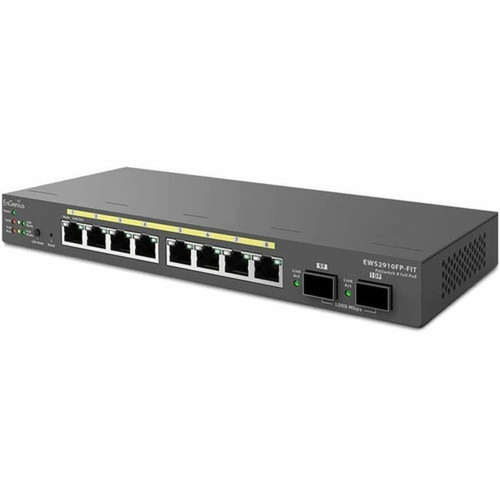

EnGenius EWS2910FP-FIT 8-Port Gigabit PoE+ Managed Switch - 110W PoE Budget - 2 SFP Slots - Layer 2 - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a full-featured Layer 2 device with comprehensive support for essential networking standards including IEEE 802.1Q VLANs, 802.1D Spanning Tree, 802.3ad Link Aggregation, and 802.1x port-based authentication. The 20 Gbps switching capacity ensures non-blocking performance across all ports simultaneously.
Network connectivity extends beyond copper with two SFP (mini-GBIC) slots that support 1000Base-X fiber optic connections, providing flexibility for longer distance uplinks or connections to fiber-based network infrastructure. The switch supports both 10/100/1000Base-T copper Ethernet and 1000Base-X fiber standards.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The EWS2910FP-FIT combines enterprise-grade switching features with simplified deployment and management, making professional networking accessible for smaller environments. The switch's design prioritizes both performance and operational efficiency.
Unified PoE Power
All eight Gigabit ports deliver PoE power with a total budget of 110W, eliminating the need for separate power supplies for connected devices and simplifying cable management.
- Power up to 8 PoE devices simultaneously
- Supports both 802.3af and 802.3at standards
- Automatic device detection and power allocation
Flexible Management Options
Choose between cloud-based management with no recurring fees, local web interface, or mobile app control to match your operational preferences and technical expertise.
- Monitor multiple sites from single dashboard
- Real-time analytics and remote configuration
- Step-by-step setup guidance
Compact Deployment Ready
The wall-mountable design and compact footprint make this switch ideal for space-constrained environments like retail stores, small offices, or classroom installations.
- Includes wall mount kit in package
- Low power consumption design
- Fanless operation for quiet deployment
Deployment / Use Cases
This switch serves as an ideal foundation for small business networks requiring both data connectivity and device power in a single compact unit. Its combination of PoE capabilities, management flexibility, and physical design suits several specific deployment scenarios.
For retail environments, the switch can power POS systems, security cameras, and wireless access points while providing reliable network connectivity. The wall-mount capability allows for discreet installation behind counters or in storage areas where rack space isn't available.
In educational settings, the switch supports classroom technology deployments by powering IP phones, wireless access points, and interactive displays. The cloud management features enable IT staff to monitor and configure multiple classroom switches from a central location without visiting each site.
Small Office Networking
Deploy as the core switch for offices with 8 or fewer wired devices, providing both connectivity and power to IP phones, access points, and surveillance systems with professional management capabilities.
Branch Office Connectivity
Use as an edge switch in branch locations with fiber uplink capability through SFP ports for reliable connection back to headquarters while powering local devices.
Physical Profile
The switch features a compact wall-mountable design measuring 9.44 inches in length, 4.13 inches in width, and just 1.06 inches in height. This slim profile allows for installation in tight spaces where traditional rack-mounted switches wouldn't fit.
Weighing only 1.36 pounds, the switch can be easily mounted to walls, under desks, or in network enclosures. The included wall mount kit provides all necessary hardware for secure installation, and the fanless design ensures silent operation in office environments.
- Width
- 4.13" (104.90 mm)
- Height
- 1.06" (26.92 mm)
- Weight
- 1.36 lb (616.89 g)
- Length
- 9.44" (239.78 mm)
What's in the Box
The package includes everything needed for immediate deployment and operation of the switch in your network environment.
Highlights
- 8 Gigabit Ethernet ports with PoE+ support on all ports
- 110W total PoE budget for powering multiple devices
- 2 SFP slots for fiber optic uplink connections
- Full Layer 2 switching with VLAN, QoS, and link aggregation
- Cloud management with no recurring licensing fees
- 20 Gbps non-blocking switching capacity
- Wall-mountable compact design (9.44" × 4.13" × 1.06")
- Hybrid management: cloud, web, or mobile app
- Supports IEEE 802.3af/at PoE standards
- Includes wall mount kit for flexible installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | EWS2910FP-FIT |
| Brand Name | EnGenius |
| Product Line | Fit |
| Product Model | EWS2910FP-FIT |
| Product Name | EWS2910FP-FIT Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3af,IEEE 802.1Q,IEEE 802.1D,IEEE 802.3ad,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 110 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.06" (26.92 mm) |
| Width | 4.13" (104.90 mm) |
| Length | 9.44" (239.78 mm) |
| Weight (Approximate) | 1.36 lb (616.89 g) |
| Miscellaneous | |
| Package Contents | EWS2910FP-FIT Ethernet Switch 1 x Power Adapter Product Card Wall Mount Kit |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
How many devices can this switch power simultaneously?
All eight Gigabit Ethernet ports support PoE, so you can theoretically power up to eight PoE devices at once. The actual number depends on the power requirements of each connected device, as the switch has a total PoE budget of 110W. The switch automatically allocates power based on device needs and can support a mix of 802.3af (15.4W) and 802.3at (30W) devices within the total power budget.
What management options are available for this switch?
The EWS2910FP-FIT offers three management approaches: cloud-based management through EnGenius's cloud platform with no recurring fees, local web interface for on-premise configuration, and mobile app control for setup and monitoring. This hybrid approach allows network administrators to choose the method that best fits their workflow, whether they prefer centralized multi-site cloud management or traditional local administration.
Can I use fiber optic connections with this switch?
Yes, the switch includes two SFP (mini-GBIC) slots that support 1000Base-X fiber optic connections. These slots allow you to add SFP transceivers for connecting to fiber optic network infrastructure, providing options for longer distance uplinks or connections to fiber-based network equipment. The switch maintains compatibility with both copper and fiber media types.
What Layer 2 features does this switch support?
This is a full-featured Layer 2 switch supporting essential enterprise networking protocols including IEEE 802.1Q VLANs for network segmentation, 802.1D Spanning Tree Protocol for loop prevention, 802.3ad Link Aggregation for port bundling, 802.1x port-based authentication for network security, and comprehensive Quality of Service (QoS) features for traffic prioritization. These capabilities provide professional-grade network management in a compact form factor.
Is this switch suitable for wall mounting?
Yes, the switch is specifically designed for wall mounting and includes a complete wall mount kit in the package. With dimensions of 9.44" × 4.13" × 1.06" and weighing only 1.36 pounds, it's ideal for installations where rack space isn't available. The compact design and included mounting hardware make it easy to install in retail environments, classrooms, small offices, or any space-constrained location.
What is the switching capacity of this device?
The switch provides 20 Gbps of non-blocking switching capacity, which ensures full wire-speed performance across all ports simultaneously. This capacity supports the aggregate bandwidth requirements of eight Gigabit Ethernet ports plus the two SFP uplink ports, preventing bottlenecks during high-traffic periods and maintaining optimal network performance for connected devices.
