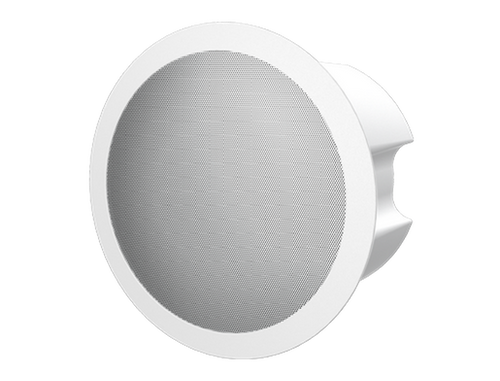

Fanvil FH-S01 SIP Ceiling Speaker - 20W RMS - White - 100Hz-20kHz - 8 Ohm - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FH-S01 combines robust audio specifications with flexible power options to support diverse installation scenarios. Its 20W RMS power rating ensures sufficient volume for medium-sized rooms, while the 89 dB sensitivity allows it to produce audible sound with moderate input power. The 8-ohm impedance is standard for commercial speakers, ensuring compatibility with most amplifiers and VoIP systems.
Power can be supplied via Power over Ethernet (PoE) or direct DC input, simplifying installation by reducing cable clutter. The speaker's circular design measures 9.39 inches in diameter and 5.84 inches in depth, fitting standard ceiling cutouts. Technical highlights include a built-in microphone for voice pickup and an LED status indicator for operational feedback.
Relevant factors for this section include RMS Output Power, Minimum Frequency Response, Maximum Frequency Response, Power Source. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FH-S01 offers distinct advantages for business audio deployments, starting with its dual power flexibility. PoE support allows single-cable installation for both data and power, reducing wiring complexity and costs. The ceiling-mountable form factor saves desk space and provides optimal sound dispersion from an overhead position.
Clear Audio Performance
Delivers 20W RMS power with a wide 100Hz-20kHz frequency range, ensuring crisp vocals and balanced background audio for paging and music.
- 8-ohm impedance for amplifier compatibility
- 89 dB sensitivity for efficient sound output
Simplified Installation
PoE and DC power options eliminate the need for separate power adapters in many setups, while the standard circular cutout fits common ceiling tiles.
- Reduces cable clutter
- Easy integration with existing systems
Deployment / Use Cases
The Fanvil FH-S01 is designed for environments where reliable audio distribution is critical. In office settings, it serves as a paging speaker for announcements and emergency alerts, integrating with VoIP phone systems for unified communications. Schools use it for class change bells, public address announcements, and intercom functionality between offices and classrooms.
Retail stores deploy the FH-S01 for background music and promotional announcements, enhancing customer experience without occupying floor space. Factories and warehouses benefit from its robust construction for safety alerts and operational instructions across noisy environments. The speaker's white color and low-profile design ensure it remains unobtrusive while delivering consistent audio coverage.
Office & Corporate
Ideal for paging systems, intercoms, and background music in open-plan offices, meeting rooms, and reception areas.
Education & Retail
Supports school bell systems, public address, and retail audio for announcements and ambient music.
Physical Profile
The FH-S01 features a circular white enclosure designed for flush ceiling mounting. Its dimensions of 9.39 inches in diameter and 5.84 inches in depth allow it to fit standard ceiling cutouts, making installation straightforward in drop-ceiling grids or solid surfaces. The white finish matches common office and commercial interiors, maintaining a clean, professional appearance. The built-in LED indicator provides visual status feedback, while the integrated microphone supports voice input for intercom applications.
- Width
- 9.39" (238.50 mm)
- Depth
- 5.84" (148.30 mm)
- Height
- 9.39" (238.50 mm)
Highlights
- 20W RMS power output for clear audio in medium-sized rooms
- 100 Hz to 20 kHz frequency response covers vocal and music ranges
- 8-ohm impedance ensures compatibility with standard amplifiers
- Power over Ethernet (PoE) support simplifies installation
- Ceiling-mountable white design blends into commercial interiors
- Built-in microphone and LED indicator for enhanced functionality
- Ideal for paging, intercom, and background music applications
- Suitable for offices, schools, retail stores, and factories
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fanvil Technology Co., Ltd |
| Manufacturer Part Number | FH-S01 |
| Brand Name | Fanvil |
| Product Model | FH-S01 |
| Product Name | FH-S01 SIP Ceiling Speaker |
| Product Type | Speaker |
| Technical Information | |
| RMS Output Power | 20 W |
| Minimum Frequency Response | 100 Hz |
| Maximum Frequency Response | 20 kHz |
| Sensitivity | 89 dB |
| Impedance | 8 Ohm |
| Features | LED Indicator,Microphone |
| Power Description | |
| Power Source | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Ceiling Mountable |
| Height | 9.39" (238.50 mm) |
| Width | 9.39" (238.50 mm) |
| Depth | 5.84" (148.30 mm) |
| Miscellaneous | |
| Application/Usage | Paging,School,Office,Retail Store,Factory |
FAQ
What is the power output of the Fanvil FH-S01 speaker?
The Fanvil FH-S01 delivers 20 watts of RMS power, providing sufficient volume for paging and background audio in typical office, retail, or classroom environments. This power rating ensures clear sound projection without distortion, making it suitable for announcements and music playback.
Can this speaker be powered using Power over Ethernet (PoE)?
Yes, the FH-S01 supports both PoE and DC power sources. PoE compatibility allows you to use a single Ethernet cable for both data and power, reducing installation complexity and eliminating the need for a separate power adapter in many setups.
What is the frequency response range of this speaker?
The speaker has a frequency response from 100 Hz to 20 kHz, covering the essential range for clear vocal reproduction and balanced background music. This ensures that paging announcements are intelligible and music sounds natural without missing highs or lows.
Is the Fanvil FH-S01 suitable for ceiling installation?
Yes, the FH-S01 is designed specifically for ceiling mounting. Its circular form factor and dimensions of 9.39 inches in diameter fit standard ceiling cutouts, making it easy to install in drop ceilings or solid surfaces. The white finish helps it blend discreetly into commercial interiors.
What applications is this speaker designed for?
The FH-S01 is ideal for paging systems, intercoms, background music, and public address in environments like offices, schools, retail stores, and factories. Its built-in microphone supports two-way communication, while the robust construction handles continuous use in commercial settings.
What are the key features of the FH-S01 speaker?
Key features include 20W RMS power, 8-ohm impedance, 100Hz-20kHz frequency response, PoE/DC power options, a built-in microphone, an LED indicator, and a ceiling-mountable white design. These features make it a versatile choice for business audio distribution and communication systems.
