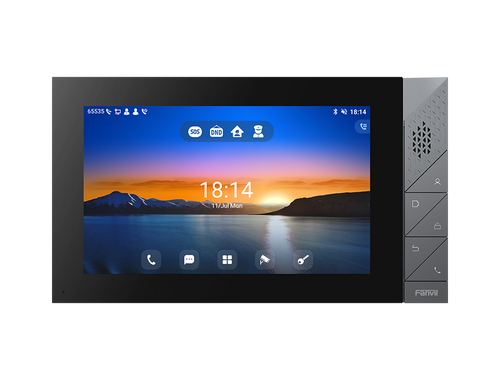

Fanvil i55A SIP Indoor Station - 7" Touchscreen LCD - Android 9.0 - PoE - Wi-Fi/Bluetooth - RS-485 - Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The i55A delivers high-definition video and audio communication with support for H.264 video codec at 1080P resolution, ensuring clear real-time video feeds from compatible door phones. Its built-in 2W speaker and Acoustic Echo Canceller provide HD voice quality, minimizing background noise for crisp conversations.
For integration and expansion, the station includes an RS-485 interface, eight alarm input interfaces, and two embedded relays, allowing it to connect with various security and automation systems. The 7-inch LCD display with 1024 x 600 resolution offers a responsive touch experience, while the Android 9.0 OS enables app-based customizations and updates.
Relevant factors for this section include Maximum Number of Buttons, Display Screen Type, Screen Resolution, Touchscreen. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Fanvil i55A stands out with its Android-based platform, which allows for extensive customization and integration with third-party applications, making it ideal for tailored security and communication solutions. Its combination of touchscreen and physical buttons ensures usability across different user preferences and environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Definition Communication, Versatile Connectivity.
High-Definition Communication
Supports 1080P video with H.264 codec and HD audio with echo cancellation for clear, reliable interactions.
- 1080P Video Resolution
- 2W Speaker
- Acoustic Echo Canceller
Versatile Connectivity
Includes built-in Wi-Fi, Bluetooth, and RS-485 interfaces for flexible network and system integration.
- Dual-Band Wi-Fi
- Bluetooth 5.0
- RS-485 Support
Deployment / Use Cases
The i55A is engineered for deployment in environments requiring secure and efficient communication, such as gated communities where it can serve as a central indoor station for video door phone systems. Its wall-mount design and PoE support simplify installation in entryways, lobbies, or security desks.
In office settings, this station can function as an intercom or access control point, integrating with alarm systems via its eight input interfaces. For villas or large residences, it provides a reliable interface for monitoring entrances and communicating with visitors, enhanced by its customizable Android OS for added functionality like app notifications or smart home controls.
Gated Community Security
Acts as a substation for video door phones, enabling residents to see and speak with visitors at entry points.
Office Intercom & Access
Integrates with security systems to manage door access and internal communication in commercial buildings.
Physical Profile
The i55A features a slim profile with dimensions of 8.54" (217 mm) wide, 4.88" (124 mm) high, and 0.83" (21 mm) deep, making it discreet and space-efficient for wall mounting. Its construction from ABS and aluminum alloy ensures durability and a modern aesthetic, suitable for both residential and commercial interiors.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.88" (124 mm), 8.54" (217 mm), 0.83" (21 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.54" (217 mm)
- Depth
- 0.83" (21 mm)
- Height
- 4.88" (124 mm)
What's in the Box
This package includes all necessary components for installation and operation.
Highlights
- 7-inch capacitive color touchscreen with 1024 x 600 resolution
- Android 9.0 operating system for customization and secondary development
- Five physical buttons for reliable, durable operation
- 1080P high-resolution video with H.264 codec for clear door phone feeds
- HD voice quality with built-in 2W speaker and Acoustic Echo Canceller
- Built-in Bluetooth 5.0 and dual-band 2.4G/5G Wi-Fi
- RS-485 interface, 8 alarm inputs, and 2 embedded relays for expansion
- Power over Ethernet support and wall-mount installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fanvil Technology Co., Ltd |
| Manufacturer Part Number | i55A |
| Brand Name | Fanvil |
| Product Model | i55A |
| Product Name | i55A SIP Indoor Station |
| Product Type | Video Door Phone Sub Station |
| Technical Information | |
| Maximum Number of Buttons | 5 |
| Display & Graphics | |
| Display Screen Type | LCD |
| Screen Resolution | 1024 x 600 |
| Touchscreen | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Product Material | ABS,Aluminum Alloy |
| Height | 4.88" (124 mm) |
| Width | 8.54" (217 mm) |
| Depth | 0.83" (21 mm) |
| Miscellaneous | |
| Package Contents | i55A SIP Indoor Station 1 x 10 Pin Cable 1 x 2Pin Cable 1 x Wall-mount Bracket 1 x Screws Kit |
| Application/Usage | Gated Community,Villa,Office |
User Manual
FAQ
What is the screen size and resolution of the Fanvil i55A?
The Fanvil i55A features a 7-inch capacitive touchscreen with a resolution of 1024 x 600 pixels. This provides a clear and responsive interface for video calls and menu navigation, suitable for indoor communication stations in various settings.
Does the i55A support Power over Ethernet (PoE)?
Yes, the i55A supports Power over Ethernet, allowing it to receive both power and data over a single Ethernet cable. This simplifies installation by reducing the need for separate power outlets, making it ideal for wall-mounted deployments in offices or residential areas.
How many alarm inputs does the i55A have, and what are they used for?
The i55A includes eight alarm input interfaces, which can connect to external sensors or security devices like motion detectors or door contacts. These inputs allow the station to trigger alerts or actions based on security events, enhancing its role in integrated alarm and access control systems.
What connectivity options are available on the i55A?
The i55A offers versatile connectivity with built-in dual-band 2.4G/5G Wi-Fi, Bluetooth 5.0, and an RS-485 interface. This supports wireless network integration, peripheral connections, and communication with industrial or automation systems, providing flexibility for different deployment scenarios.
Is the i55A suitable for wall mounting, and what's included for installation?
Yes, the i55A is designed for wall-mount installation and comes with a wall-mount bracket and screws kit in the package. Its slim depth of 0.83 inches and durable ABS/aluminum alloy construction make it easy to install securely in entryways, lobbies, or security desks for reliable long-term use.
How many SIP lines or accounts does this phone support?
Fanvil i55A SIP Indoor Station - 7" Touchscreen LCDABS, Aluminum Alloy - Gated Community, Villa, Office (i55A) is best understood through its communication features, deployment fit, and connectivity profile, which help buyers confirm desk-phone suitability before rollout.
