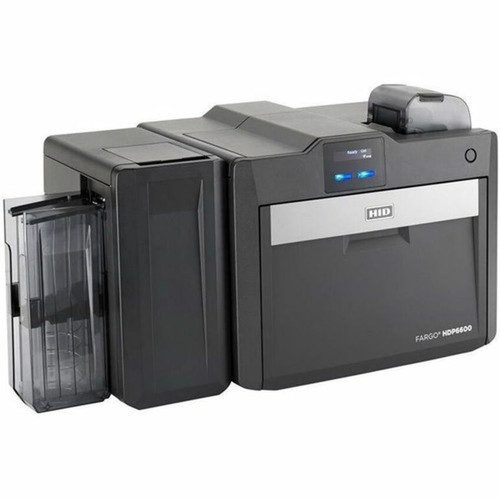

Fargo 094740 HDP6600 Dye Sublimation/Thermal Transfer Card Printer - Double-Sided Color - 16 in/s Speed - OLED Display - USB/Ethernet - 1GB Memory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HDP6600 employs advanced dye sublimation and thermal transfer technology to produce vibrant, durable color prints on both sides of standard CR-80 cards. With a maximum print speed of 16 inches per second (406.40 mm/s), this printer maintains high throughput without compromising image quality or encoding reliability.
The printer's encoding capabilities are comprehensive, featuring magnetic stripe encoding, contact smart card encoding, and contactless smart card encoding in a single unit. An integrated card flattener module ensures consistent card handling and prevents warping during the printing and encoding process. The printer's 1GB memory supports complex print jobs, while USB and Ethernet connectivity provide flexible deployment options for both standalone and networked environments.
This section brings together practical product details such as Recommended Use, Print Color Capability, Printing Capability, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Fargo HDP6600 combines multiple credential production functions into a single, reliable platform, reducing equipment footprint and streamlining card issuance workflows. Its versatile media compatibility spans smart cards, ABS, PVC, PET, PETG, proximity cards, magnetic stripe cards, and polycarbonate cards, accommodating diverse security and durability requirements.
Comprehensive Encoding Suite
Integrates magnetic stripe, contact smart card, and contactless smart card encoding capabilities, eliminating the need for separate encoding devices and simplifying card personalization workflows.
- Magnetic Stripe Encoder
- Contact Smart Card Encoder
- Contactless Smart Card Encoder
Network-Ready Deployment
Ethernet connectivity enables shared printer resources across workgroups, optimizing workflow efficiency and supporting centralized card production management in multi-user environments.
Professional Color Output
Produces high-quality color credentials with precise registration on both card sides, utilizing yellow, magenta, and cyan printing colors for accurate color reproduction and professional appearance.
Deployment / Use Cases
The Fargo HDP6600 is ideally suited for organizations requiring secure, high-volume card production with integrated encoding capabilities. Its robust construction and comprehensive feature set make it a reliable choice for continuous operation in corporate, educational, healthcare, and government environments.
Typical deployment scenarios include corporate ID badge systems, university student identification, healthcare facility access control, government credential issuance, and membership card production for associations and clubs. The printer's network connectivity supports shared use across departments, while its encoding versatility accommodates various security protocols and card technologies.
Corporate Security
Produces employee identification badges with photo, name, department, and access level information, integrated with magnetic stripe or smart card encoding for door access systems.
Educational Institutions
Creates student ID cards with library access, meal plan information, and building entry permissions, supporting both contact and contactless smart card technologies for campus-wide systems.
Physical Profile
The HDP6600 features a substantial industrial design with dimensions of 12.99" (330 mm) in height, 19.76" (502 mm) in width, and 12.01" (305 mm) in depth. Weighing approximately 24.69 lb (11,200 g), this printer offers stable operation during high-speed printing and encoding tasks. The robust construction ensures reliable performance in office and production environments, with operating conditions optimized for temperatures between 65°F (18.3°C) and 90°F (32.2°C) at 20% to 80% relative humidity.
- Width
- 19.76" (502 mm)
- Depth
- 12.01" (305 mm)
- Height
- 12.99" (330 mm)
- Weight
- 24.69 lb (11200 g)
Highlights
- Double-sided color printing at 16 in/s (406.40 mm/s) speed
- 600 dpi maximum print resolution for crisp, professional credentials
- Integrated magnetic stripe, contact smart card, and contactless smart card encoding
- OLED display for clear status monitoring and configuration
- USB and Ethernet connectivity for flexible deployment options
- 1 GB standard memory for handling complex print jobs
- Supports multiple card types including smart cards, PVC, PET, and polycarbonate
- Card flattener module prevents warping during printing and encoding
- Network-ready for shared resource utilization across workgroups
- 3-year limited warranty with comprehensive certifications (UL, CE, FCC, BSMI, MIC, EAC, RCM, CCC, KCC, S-Mark)
Specifications
| Specifications | |
|---|---|
| Manufacturer | HID Global Corporation |
| Manufacturer Part Number | 094740 |
| Brand Name | Fargo |
| Product Model | HDP6600 |
| Product Name | HDP6600 Card Printer & Encoder |
| Product Type | Dye Sublimation/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Card Print |
| Print Color Capability | Color |
| Printing Capability | Double Sided |
| Maximum Color Print Speed | 16 in/s (406.40 mm/s) |
| Maximum Print Resolution (dpi) | 600 |
| Printing Color | Yellow,Magenta,Cyan |
| Features | Magnetic Stripe Encoder,Contact Smart Card Encoder,Contactless Smart Card Encoder,Card Flattener Module |
| Memory | |
| Standard Memory | 1 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Network Ready | Yes |
| Ethernet | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | OLED |
| Media Types & Handling | |
| Media Type | Smart Card,ABS Card,PVC Card,PET Card,PETG Card,Proximity Card,Magnetic Stripe Card,Polycarbonate Card |
| Media Size | 3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card |
| Media Thickness | 40 mil (1.016000 mm) |
| Power Description | |
| Power Source | AC Supply |
| Power Consumption | 2.50 A |
| Environmental Conditions | |
| Operating Temperature | 65°F (18.3°C) - 90°F (32.2°C) |
| Operating Relative Humidity | 20% - 80% |
| Physical Characteristics | |
| Height | 12.99" (330 mm) |
| Width | 19.76" (502 mm) |
| Depth | 12.01" (305 mm) |
| Weight (Approximate) | 24.69 lb (11200 g) |
| Miscellaneous | |
| Certifications & Standards | UL CE FCC BSMI MIC EAC RCM CCC KCC S-Mark |
| Environmentally Friendly | Yes |
| Environmental Certification | GreenCircle |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What print, scan, copy, or multifunction capability is listed?
The HDP6600 employs advanced dye sublimation and thermal transfer technology to produce vibrant, durable color prints on both sides of standard CR-80 cards. With a maximum print speed of 16 inches per second (406.40 mm/s), this printer maintains high throughput without compromising image quality or encoding reliability. The printer's encoding capabilities are comprehensive, featuring magnetic stripe encoding, contact smart card encoding, and contactless smart card encoding in a single unit. An integrated card flattener module ensures consistent card handling and prevents warping during the printing and encoding process. The printer's 1GB memory supports complex print jobs, while USB and Ethernet connectivity provide flexible deployment options for both standalone and networked environments.
What sheet capacity, media size, or paper handling detail is listed?
3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card.
What duplex or duty-cycle detail is listed?
The HDP6600 employs advanced dye sublimation and thermal transfer technology to produce vibrant, durable color prints on both sides of standard CR-80 cards. With a maximum print speed of 16 inches per second (406.40 mm/s), this printer maintains high throughput without compromising image quality or encoding reliability. The printer's encoding capabilities are comprehensive, featuring magnetic stripe encoding, contact smart card encoding, and contactless smart card encoding in a single unit. An integrated card flattener module ensures consistent card handling and prevents warping during the printing and encoding process. The printer's 1GB memory supports complex print jobs, while USB and Ethernet connectivity provide flexible deployment options for both standalone and networked environments.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What label, receipt, or business-print workflow detail is listed?
The HDP6600 employs advanced dye sublimation and thermal transfer technology to produce vibrant, durable color prints on both sides of standard CR-80 cards. With a maximum print speed of 16 inches per second (406.40 mm/s), this printer maintains high throughput without compromising image quality or encoding reliability. The printer's encoding capabilities are comprehensive, featuring magnetic stripe encoding, contact smart card encoding, and contactless smart card encoding in a single unit. An integrated card flattener module ensures consistent card handling and prevents warping during the printing and encoding process. The printer's 1GB memory supports complex print jobs, while USB and Ethernet connectivity provide flexible deployment options for both standalone and networked environments.
What deployment or installation detail is listed?
The Fargo HDP6600 is ideally suited for organizations requiring secure, high-volume card production with integrated encoding capabilities. Its robust construction and comprehensive feature set make it a reliable choice for continuous operation in corporate, educational, healthcare, and government environments. Typical deployment scenarios include corporate ID badge systems, university student identification, healthcare facility access control, government credential issuance, and membership card production for associations and clubs. The printer's network connectivity supports shared use across departments, while its encoding versatility accommodates various security protocols and card technologies.
What performance, throughput, or capacity detail stands out?
The listed power specification is 16 in/s (406.40 mm/s), which helps position the unit for the right load level and installation role.
