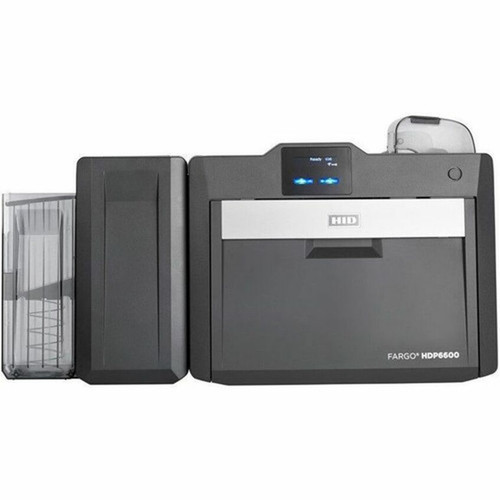

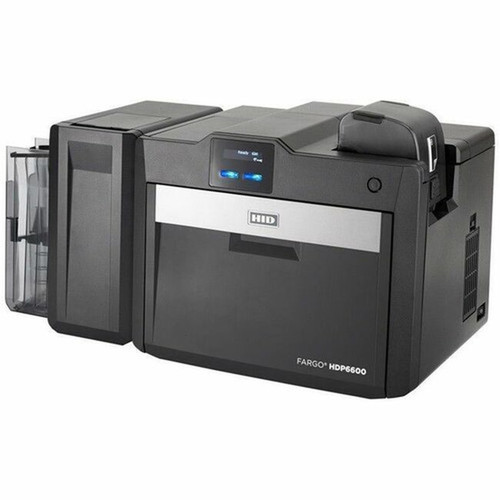

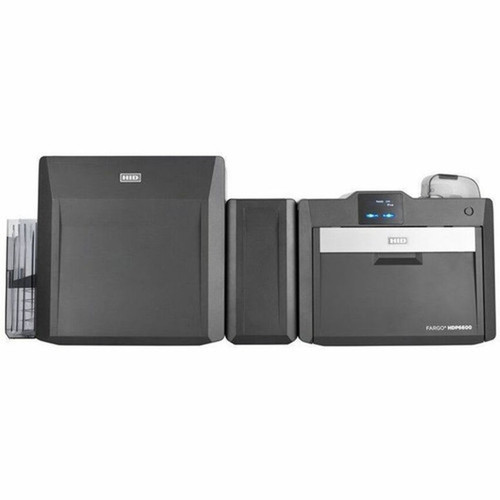

Fargo 094661 HDP6600 Desktop Card Printer & Encoder - Dye Sublimation/Thermal Transfer - Color - Single Sided - 600 dpi - USB/Ethernet - OLED Display
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HDP6600 delivers precise card printing with a maximum color print speed of 406.40 mm/s, balancing throughput with image quality. Its 600 dpi resolution ensures sharp text, detailed graphics, and accurate color reproduction using the CMYK (Yellow, Magenta, Cyan) color system. The printer's 1 GB of standard memory supports complex card designs and batch processing without compromising performance.
Connectivity is provided through USB 2.0 for direct computer attachment and Ethernet for network sharing, allowing multiple users to access the printer resources. The integrated OLED display offers clear status information and menu navigation, while the card flattener module ensures finished cards emerge flat and professional. Power consumption is rated at 2.50 A from an AC supply, and the printer operates reliably within a 20% to 80% humidity range.
This section brings together practical product details such as Recommended Use, Print Color Capability, Printing Capability, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Fargo HDP6600 stands out with its dual-technology printing approach, combining dye sublimation for vibrant color images and thermal transfer for durable monochrome elements. This flexibility allows organizations to produce both visually appealing and long-lasting credentials tailored to specific security and aesthetic requirements.
Comprehensive Encoding Suite
Integrated magnetic stripe, contact smart card, and contactless smart card encoders enable multi-technology card personalization in a single pass, streamlining credential issuance and reducing equipment footprint.
- Magnetic Stripe Encoding
- Contact Smart Card Encoding
- Contactless Smart Card Encoding
Broad Media Compatibility
Supports eight card material types including PVC, PET, polycarbonate, and proximity cards, accommodating diverse security standards and durability needs across applications.
- PVC & PET Cards
- Polycarbonate Cards
- Proximity & Smart Cards
Deployment / Use Cases
The HDP6600 is ideally deployed in environments requiring secure, on-demand card production with encoding capabilities. Its desktop form factor and network connectivity make it suitable for centralized credential issuance in medium to large organizations where multiple departments share printer resources.
Common applications include employee ID badges for corporate campuses, student identification for educational institutions, membership cards for fitness centers and associations, and access control credentials for government facilities. The printer's support for magnetic stripe and smart card technologies allows integration with time attendance systems, secure building access, and logical security applications. The card flattener module ensures finished cards meet professional standards for corporate branding and long-term durability.
Corporate Security
Issue employee ID badges with photo, name, and department information, encoded with magnetic stripe or smart chip for building access and system authentication.
Education & Campus
Produce student identification cards that serve as library access, meal plan payment, and dormitory entry credentials with contactless technology for convenience.
Physical Profile
Designed for desktop placement, the HDP6600 measures 14.49 inches wide, 12.99 inches high, and 12.01 inches deep, with a weight of approximately 9.50 kg. This compact footprint fits comfortably on standard office workstations or dedicated credential issuance counters without requiring excessive space.
The printer's construction supports reliable operation in typical office environments, with operating temperature tolerance from 65°F to 90°F (18.3°C to 32.2°C). The front-facing OLED display provides clear status visibility, while the integrated card output tray ensures finished cards are easily accessible. The sturdy build quality accommodates continuous operation during peak issuance periods while maintaining consistent print and encode performance.
- Width
- 14.49" (368 mm)
- Depth
- 12.01" (305 mm)
- Height
- 12.99" (330 mm)
- Weight
- 9.50 kg
Highlights
- Dye sublimation and thermal transfer printing technologies for flexible card production
- Color printing capability with Yellow, Magenta, Cyan color system at 600 dpi resolution
- Integrated magnetic stripe, contact smart card, and contactless smart card encoders
- USB 2.0 and Ethernet connectivity for both direct and network printing
- 1 GB standard memory for complex card designs and batch processing
- Supports CR-80 card size (3.38" x 2.12") with 40 mil thickness
- Compatible with eight card material types including PVC, PET, and polycarbonate
- OLED display for clear status information and menu navigation
- Card flattener module ensures professional, flat finished cards
- 3-year limited warranty with UL, CE, FCC, and other global certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | HID Global Corporation |
| Manufacturer Part Number | 094661 |
| Brand Name | Fargo |
| Product Model | HDP6600 |
| Product Name | HDP6600 Card Printer & Encoder |
| Product Type | Dye Sublimation/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Card Print |
| Print Color Capability | Color |
| Printing Capability | Single Sided |
| Maximum Color Print Speed | 406.40 mm/s |
| Maximum Print Resolution (dpi) | 600 |
| Connectivity Technology | Wired |
| Printing Color | Yellow,Magenta,Cyan |
| Duplex Printing | Yes |
| Application/Usage | Desktop |
| Features | Magnetic Stripe Encoder,Contact Smart Card Encoder,Contactless Smart Card Encoder,Card Flattener Module |
| Memory | |
| Standard Memory | 1 GB |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Network Ready | Yes |
| Ethernet | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | OLED |
| Media Types & Handling | |
| Media Type | Smart Card,ABS Card,PVC Card,PET Card,PETG Card,Proximity Card,Magnetic Stripe Card,Polycarbonate Card |
| Media Size | 3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card |
| Media Thickness | 40 mil |
| Software | |
| Operating System Supported | Microsoft: Windows 10 Windows 8.1 Windows 8 Windows 7 Windows Server 2016 Windows Server 2012 Windows Server 2012 R2 Windows Server 2008 Windows Server 2008 R2 |
| Power Description | |
| Power Source | AC Supply |
| Power Consumption | 2.50 A |
| Environmental Conditions | |
| Operating Temperature | 65°F (18.3°C) - 90°F (32.2°C) |
| Operating Relative Humidity | 20% - 80% |
| Physical Characteristics | |
| Height | 12.99" (330 mm) |
| Width | 14.49" (368 mm) |
| Depth | 12.01" (305 mm) |
| Weight (Approximate) | 9.50 kg |
| Miscellaneous | |
| Platform Supported | PC |
| Certifications & Standards | UL CE FCC BSMI MIC EAC RCM CCC KCC S-Mark |
| Environmentally Friendly | Yes |
| Environmental Certification | GreenCircle |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What printing technologies does the Fargo HDP6600 use?
The HDP6600 utilizes both dye sublimation and thermal transfer printing technologies. Dye sublimation produces vibrant color images by transferring dye onto card surfaces, while thermal transfer applies durable monochrome elements using heat-activated ribbon. This dual-technology approach allows for flexible card production with both aesthetic appeal and long-lasting durability.
What types of cards can the HDP6600 print and encode?
This printer supports eight card material types: Smart Cards, ABS Cards, PVC Cards, PET Cards, PETG Cards, Proximity Cards, Magnetic Stripe Cards, and Polycarbonate Cards. It handles standard CR-80 card size (3.38" x 2.12") with 40 mil thickness. The integrated encoders can personalize magnetic stripe, contact smart card, and contactless smart card technologies during the printing process.
How does the HDP6600 connect to computers and networks?
The printer offers both USB 2.0 and Ethernet connectivity. USB 2.0 allows direct connection to a single computer, while Ethernet enables network sharing so multiple users can access the printer resources. This dual-connectivity approach supports flexible deployment in both standalone and shared office environments.
What operating systems are supported by this card printer?
The HDP6600 is compatible with Microsoft Windows 10, 8.1, 8, and 7 for desktop environments, along with Windows Server 2016, 2012, 2012 R2, 2008, and 2008 R2 for server-based deployments. This broad OS support ensures reliable integration into both current and legacy Windows IT infrastructure.
What is the print resolution and speed of the HDP6600?
This printer delivers a maximum print resolution of 600 dpi, ensuring sharp text, detailed graphics, and accurate color reproduction. The maximum color print speed is 406.40 mm/s, balancing throughput with image quality for efficient card production in medium-volume environments.
What warranty and certifications come with the Fargo HDP6600?
The HDP6600 includes a 3-year limited warranty and carries multiple global certifications including UL, CE, FCC, BSMI, MIC, EAC, RCM, CCC, KCC, and S-Mark. It also features GreenCircle environmental certification, confirming its environmentally friendly design and manufacturing processes.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What sheet capacity, media size, or paper handling detail is listed?
3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card.
