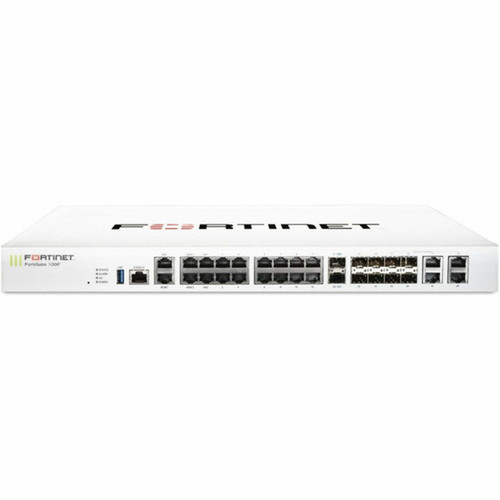

Fortinet FG-100F-BDL-809-36 FortiGate FG-100F Network Security Appliance - 21 Port - 20 Gbps Firewall Throughput - 1U Rack-Mountable - 10GbE - 500 VPN
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiGate FG-100F implements multiple security technologies including AI/ML security, anti-phishing, anti-spam, antivirus, application control, botnet detection, and cloud sandboxing. Additional protection layers cover data leak prevention, distributed denial of service mitigation, DNS security, email security, and endpoint protection.
Enterprise security features extend to file security, IoT security, malware protection, operational technology security, outbreak prevention, packet filtering, ransomware protection, SaaS security, and sandbox detection prevention. The appliance supports secure IPsec VPN connectivity with SSL and TLS inspection capabilities.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FG-100F combines high port density with enterprise-grade security processing in a compact 1U form factor. With 21 network ports and expansion capabilities through 8 SFP and 2 SFP+ slots, this appliance adapts to various network topologies while maintaining consistent security policy enforcement.
Comprehensive Threat Protection
Implements over 35 security technologies including zero-day threat prevention, advanced threat intelligence, and zero trust network access (ZTNA) for modern threat landscapes.
- AI/ML Security
- Cloud Sandboxing
- IoT Security
- Ransomware Protection
High-Performance Connectivity
Supports 10GBase-X, 1000Base-X, and 1000Base-T standards with 10 Gigabit Ethernet technology for demanding network environments.
- 21 Network Ports
- 10 Expansion Slots
- VPN Throughput: 1.44 GB/s
Enterprise Management Ready
Fully manageable appliance with extensive logging, reporting, and policy management capabilities for centralized security administration.
- Centralized Management
- Policy Enforcement
- User Authentication
Deployment / Use Cases
The FortiGate FG-100F serves as a perimeter security gateway for medium to large enterprise networks, providing threat inspection and access control at network boundaries. Its 20 Gbps throughput capacity makes it suitable for bandwidth-intensive applications while maintaining security inspection.
Common deployment scenarios include corporate headquarters connectivity, data center edge protection, branch office security consolidation, and secure interconnection between distributed sites. The appliance's VPN capabilities support secure remote access and site-to-site connectivity for distributed organizations.
The 1U rack-mountable design integrates seamlessly into standard server racks alongside other networking equipment. With support for both 50 Hz and 60 Hz power frequencies, the FG-100F adapts to international deployment requirements.
Physical Profile
The FortiGate FG-100F features a standard 1U rack-mountable chassis measuring 1.73 inches (43.94 mm) in height, 17 inches (431.80 mm) in width, and 10 inches (254 mm) in depth. The compact design optimizes rack space utilization while providing adequate ventilation for continuous operation.
Weighing approximately 7.25 pounds (3288.54 grams), the appliance maintains a manageable physical footprint for installation in standard server racks. The environmentally friendly design and 80 Plus energy efficiency certification support sustainable IT infrastructure initiatives.
- Width
- 17" (431.80 mm)
- Depth
- 10" (254 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 7.25 lb (3288.54 g)
Highlights
- 21 network ports for high-density connectivity
- 20 Gbps firewall throughput for performance-intensive environments
- 500 concurrent VPN connections for secure remote access
- 10 Gigabit Ethernet support with 10GBase-X compatibility
- 1U rack-mountable form factor for standard server racks
- Comprehensive threat protection with over 35 security technologies
- Energy-efficient design with 80 Plus certification
- Manageable appliance with centralized security administration
- 10 expansion slots (8 SFP + 2 SFP+) for network flexibility
- 29.50W power consumption for efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-100F-BDL-809-36 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 100F |
| Product Model | FG-100F |
| Product Name | FortiGate FG-100F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Access Control,AI/ML Security,Anti-phishing,Anti-spam,Antivirus,Application Control,Botnet Detection,Cloud Sandboxing,Content Filtering,Cyber Assault Protection,Data Leak Prevention,Distributed Denial of Service (DDoS),DNS Security,Email Security,Endpoint Protection,Enterprise Security,File Security,Intrusion Prevention,IoT Security,Malware Protection,Network Protection,Operational Technology (OT) Security,Outbreak Prevention,Packet Filter,Ransomware Protection,SaaS Security,Sandbox Detection Prevention,Secure IPsec VPN Connectivity,SSL Inspection,Threat Protection,URL Filtering,User Authentication,Vulnerability Assessment,Web Protection,Zero Day Event,Zero Trust Network Access (ZTNA),Zero-day Threat Prevention,Web Content Filtering,Deep Inspection Firewall,Advanced Threat Intelligence,TLS Inspection,Malicious Source IP Address Blocking,Policy Enforcement |
| Firewall Throughput | 20 Gbit/s |
| Encryption Standard | SHA-256,AES (256-bit),RSA 2048-bit,TLS 1.3,SSL |
| Number of VPN Supported | 500 |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Total Number of Ports | 21 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 21 |
| Media & Performance | |
| VPN Throughput | 1.44 GB/s |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Standard | 10GBase-X,1000Base-X,1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 10 |
| Expansion Slot Type | SFP+,SFP |
| Number of SFP Slots | 8 |
| Number of SFP+ Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Power Consumption | 29.50 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17" (431.80 mm) |
| Depth | 10" (254 mm) |
| Weight (Approximate) | 7.25 lb (3288.54 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Standard |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the firewall throughput of the FortiGate FG-100F?
The FortiGate FG-100F delivers 20 Gbit/s firewall throughput, providing sufficient processing capacity for inspecting traffic in medium to large enterprise networks. This throughput enables the appliance to handle bandwidth-intensive applications while maintaining comprehensive security inspection across all supported protection technologies.
How many network ports does this security appliance include?
The FG-100F features 21 total network ports, all of which are RJ-45 Ethernet ports. This high port density supports direct connectivity for multiple network segments, servers, and devices without requiring additional switching infrastructure at the security boundary.
What VPN capabilities does the FortiGate FG-100F support?
This appliance supports up to 500 concurrent VPN connections with a VPN throughput of 1.44 GB/s. It implements secure IPsec VPN connectivity with encryption standards including SHA-256, AES (256-bit), RSA 2048-bit, TLS 1.3, and SSL for robust data protection across VPN tunnels.
Is the FG-100F rack-mountable and what are its dimensions?
Yes, the FortiGate FG-100F is designed as a 1U rack-mountable appliance. Its dimensions are 1.73 inches (43.94 mm) in height, 17 inches (431.80 mm) in width, and 10 inches (254 mm) in depth. The standard 1U form factor allows installation in typical server racks alongside other networking equipment.
What expansion options are available on this security appliance?
The FG-100F provides 10 total expansion slots, consisting of 8 SFP slots and 2 SFP+ slots. These expansion options enable fiber connectivity, additional network interfaces, and compatibility with various transceiver modules for flexible network architecture adaptation.
What security technologies does the FortiGate FG-100F implement?
This appliance implements comprehensive security technologies including access control, AI/ML security, anti-phishing, anti-spam, antivirus, application control, botnet detection, cloud sandboxing, content filtering, DDoS protection, DNS security, email security, endpoint protection, intrusion prevention, IoT security, ransomware protection, zero trust network access, and over 15 additional protection layers for complete threat coverage.
