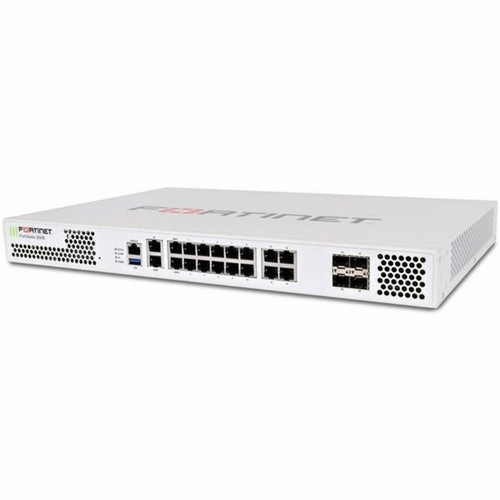

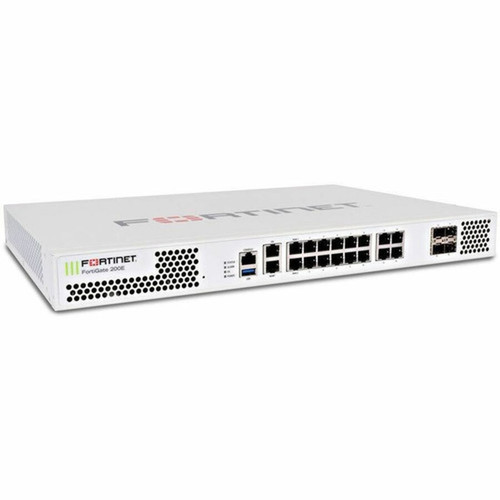

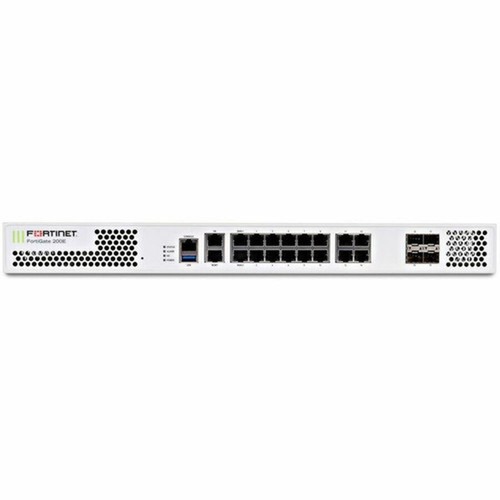

Fortinet FG-200E-BDL-809-36 FortiGate 200E Network Security Firewall - 20 Gbit/s Throughput - 17 Ports - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FG-200E delivers enterprise-grade security processing with 20 Gbit/s firewall throughput capacity, ensuring minimal latency during deep packet inspection and threat analysis. The appliance implements multiple encryption standards including SHA-256, AES-256, TLS 1.3, and SSL to protect data in transit across both internal and external network segments.
Network connectivity is provided through 17 Gigabit Ethernet ports (1000Base-X, 1000Base-T) with four additional SFP expansion slots for fiber optic connections. This wired-only appliance includes USB connectivity for management and supports 50/60 Hz power input with 109.90 W typical power consumption.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiGate FG-200E consolidates multiple security functions into a single 1U appliance, reducing infrastructure complexity while providing layered protection against evolving threats. The platform's comprehensive security services work in concert to detect and prevent intrusions across network, application, and data layers.
Comprehensive Threat Protection
Implements over 40 security services including AI/ML security, anti-phishing, anti-spam, antivirus, application control, botnet detection, cloud sandboxing, content filtering, DDoS protection, DNS security, email security, endpoint protection, intrusion prevention, IoT security, malware protection, ransomware protection, SaaS security, SSL inspection, threat protection, URL filtering, vulnerability assessment, web protection, zero-day threat prevention, and zero trust network access (ZTNA).
High-Density Connectivity
Provides 17 Gigabit Ethernet ports for connecting servers, workstations, and storage devices, plus four SFP slots for fiber optic expansion. This port density supports complex network architectures without requiring additional switching infrastructure.
Enterprise Management
Fully manageable through Fortinet's security fabric ecosystem, enabling centralized policy enforcement, threat intelligence sharing, and coordinated response across distributed security deployments.
Deployment / Use Cases
The FG-200E is optimized for deployment as an edge security gateway in medium to large enterprise environments, data center perimeters, and distributed branch offices. The appliance's 20 Gbit/s throughput capacity makes it suitable for protecting high-bandwidth internet connections and inter-site network links.
Common deployment scenarios include securing headquarters internet gateways, protecting data center ingress/egress points, establishing secure site-to-site VPN connections between branch offices, and implementing zero trust network access for remote users and devices. The 1U form factor integrates seamlessly into standard 19-inch server racks alongside other networking equipment.
Enterprise Edge Security
Deploy as the primary security gateway at network boundaries to inspect all inbound and outbound traffic with deep packet inspection, threat intelligence, and application-aware filtering.
Secure Branch Connectivity
Establish encrypted VPN tunnels between distributed locations while providing local security services at each branch, reducing backhaul traffic to central security appliances.
Physical Profile
The FG-200E utilizes a standard 1U rack-mountable form factor measuring 1.75" (44.45 mm) in height, 17" (431.80 mm) in width, and 11.90" (302.26 mm) in depth. The appliance weighs approximately 11.90 lb (5397.75 g) and includes mounting hardware for secure installation in 19-inch server racks. The compact design maximizes rack space efficiency while providing adequate ventilation for continuous operation in data center environments.
- Width
- 17" (431.80 mm)
- Depth
- 11.90" (302.26 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 11.90 lb (5397.75 g)
Highlights
- 20 Gbit/s firewall throughput for high-performance security processing
- 17 Gigabit Ethernet ports with 1000Base-X/1000Base-T support
- 500 concurrent VPN tunnels with 921.60 MB/s VPN throughput
- Comprehensive security services including AI/ML protection and zero trust access
- 1U rack-mountable form factor for standard server rack installation
- Four SFP expansion slots for fiber optic connectivity
- Enterprise-grade encryption with SHA-256 and AES-256 standards
- Fully manageable through Fortinet security fabric ecosystem
- Wired connectivity with USB management interface
- 109.90 W power consumption with 50/60 Hz compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-200E-BDL-809-36 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 200E |
| Product Model | FG-200E |
| Product Name | FortiGate FG-200E Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Access Control,AI/ML Security,Anti-phishing,Anti-spam,Antivirus,Application Control,Botnet Detection,Cloud Sandboxing,Content Filtering,Cyber Assault Protection,Data Leak Prevention,Distributed Denial of Service (DDoS),DNS Security,Email Security,Endpoint Protection,Enterprise Security,File Security,Intrusion Prevention,IoT Security,Malware Protection,Network Protection,Operational Technology (OT) Security,Outbreak Prevention,Packet Filter,Ransomware Protection,SaaS Security,Sandbox Detection Prevention,Secure IPsec VPN Connectivity,SSL Inspection,Threat Protection,URL Filtering,User Authentication,Vulnerability Assessment,Web Protection,Zero Day Event,Zero Trust Network Access (ZTNA),Zero-day Threat Prevention,Web Content Filtering,Deep Inspection Firewall,Advanced Threat Intelligence,TLS Inspection,Malicious Source IP Address Blocking,Policy Enforcement |
| Firewall Throughput | 20 Gbit/s |
| Encryption Standard | SHA-256,AES (256-bit),TLS 1.3,SSL |
| Number of VPN Supported | 500 |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Total Number of Ports | 17 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 17 |
| Media & Performance | |
| VPN Throughput | 921.60 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 1000Base-X,1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Power Consumption | 109.90 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 11.90" (302.26 mm) |
| Weight (Approximate) | 11.90 lb (5397.75 g) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the firewall throughput capacity of the FortiGate FG-200E?
The FortiGate FG-200E delivers 20 Gbit/s firewall throughput, enabling deep packet inspection and threat analysis at line rate for Gigabit Ethernet connections. This throughput capacity ensures security processing does not become a bottleneck in high-bandwidth network environments.
How many network ports does this security appliance provide?
The appliance includes 17 Gigabit Ethernet ports (RJ-45) supporting both 1000Base-X and 1000Base-T standards. Additionally, four SFP expansion slots are available for fiber optic connections, providing flexibility for mixed copper and fiber network deployments.
What VPN capabilities does the FG-200E support?
The FG-200E supports up to 500 concurrent VPN tunnels with 921.60 MB/s VPN throughput. It implements secure IPsec VPN connectivity with enterprise-grade encryption, enabling protected site-to-site and remote access communications across distributed networks.
Is this appliance rack-mountable and what are its dimensions?
Yes, the FG-200E uses a standard 1U rack-mountable form factor measuring 1.75" (44.45 mm) in height, 17" (431.80 mm) in width, and 11.90" (302.26 mm) in depth. The appliance weighs approximately 11.90 lb (5397.75 g) and includes mounting hardware for secure installation in 19-inch server racks.
What security services are included with this firewall appliance?
The FG-200E implements comprehensive security services including AI/ML security, anti-phishing, anti-spam, antivirus, application control, botnet detection, cloud sandboxing, content filtering, DDoS protection, DNS security, email security, endpoint protection, intrusion prevention, IoT security, malware protection, ransomware protection, SSL inspection, threat protection, URL filtering, vulnerability assessment, web protection, zero-day threat prevention, and zero trust network access (ZTNA).
What encryption standards does this appliance support?
The FG-200E supports multiple enterprise encryption standards including SHA-256, AES (256-bit), TLS 1.3, and SSL. These encryption protocols protect data in transit across network segments and VPN tunnels, ensuring confidentiality and integrity for sensitive communications.
