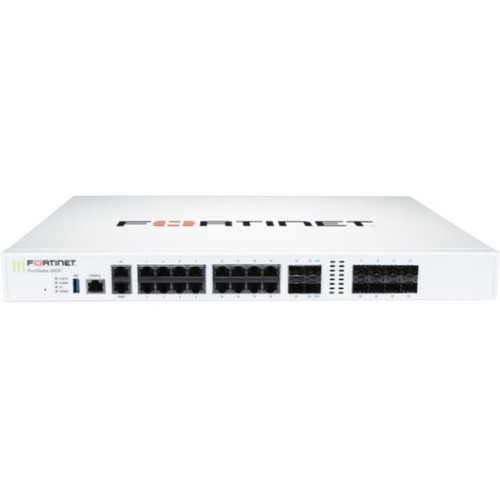

Fortinet FG-201F-BDL-950-12 FortiGate FG-201F Network Security Firewall Appliance - 18 Ports - 10GbE - 500 VPN - 1U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This FortiGate appliance operates on 10 Gigabit Ethernet technology with support for 10/100/1000Base-T, 1000Base-X, and 10GBase-X network standards. The firewall protection suite includes threat protection, malware protection, SSL encrypted traffic inspection, deep inspection firewall capabilities, application control, anti-spam, integrated web filtering, antivirus, botnet detection, outbreak prevention, cloud sandboxing, and secure IPsec VPN connectivity.
The expansion architecture features 8 SFP slots and 4 SFP+ slots for fiber connectivity options, allowing network administrators to tailor the interface configuration to specific infrastructure requirements. The manageable platform enables centralized security policy administration and monitoring.
Relevant factors for this section include Firewall Protection Supported, Encryption Standard, Number of VPN Supported, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FG-201F combines high-port-density connectivity with enterprise-grade security features in a compact 1U form factor. The appliance's comprehensive protection stack addresses modern network threats while maintaining performance for business-critical applications.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include 18-port configuration, 10GbE ready, 500 VPN capacity, AES-256 encryption, Rackmount deployment.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
This FortiGate appliance is designed for medium-sized business networks, departmental security boundaries, and workgroup protection scenarios. The 18-port configuration with expansion capabilities makes it suitable for network edge deployments where multiple segments require security inspection.
Typical implementations include securing branch office networks, protecting departmental server clusters, and establishing secure VPN gateways for remote workforce connectivity. The rackmount form factor integrates seamlessly into standard data center and network closet environments.
Branch Office Security
Deploy as the primary security gateway for branch locations with multiple network segments and remote access requirements.
- 500 VPN capacity for remote workers
- Comprehensive threat protection stack
- 10GbE ready for high-speed connections
Departmental Network Protection
Secure workgroup networks with application-aware firewall policies and deep traffic inspection capabilities.
- 18 ports for multiple network zones
- Application control and web filtering
- Malware and botnet detection
Physical Profile
The FG-201F features a standard 1U rackmount design with dimensions of 1.73" height, 17.01" width, and 13.47" depth. Weighing approximately 10.14 pounds, the appliance fits standard 19-inch rack systems for organized network infrastructure deployment. The compact form factor optimizes data center space while providing substantial security capabilities.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 17.01" (432.05 mm), 13.47" (342.14 mm), 10.14 lb (4599.43 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432.05 mm)
- Depth
- 13.47" (342.14 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.14 lb (4599.43 g)
Highlights
- 18 total ports with 17 RJ-45 connections for flexible network deployment
- 10 Gigabit Ethernet technology supporting 10/100/1000Base-T, 1000Base-X, and 10GBase-X standards
- 500 concurrent VPN connections with AES-256 and SHA-256 encryption
- 12 expansion slots including 8 SFP and 4 SFP+ slots for fiber connectivity
- Comprehensive firewall protection with threat, malware, and deep inspection capabilities
- 1U rackmount form factor for standard data center installation
- Manageable platform for centralized security policy administration
- USB port for additional configuration and management options
- 50/60 Hz frequency support for global power compatibility
- 24x7 FortiCare and FortiGuard UTP support with 1-year warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-201F-BDL-950-12 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 200F |
| Product Model | FG-201F |
| Product Name | FortiGate FG-201F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Threat Protection,Malware Protection,SSL Encrypted Traffic Protection,Deep Inspection Firewall,Application Control,Anti-spam,Integrated Web Filtering,Antivirus,Botnet Detection,Outbreak Prevention,Cloud Sandboxing,Secure IPsec VPN Connectivity |
| Encryption Standard | AES (256-bit),SHA-256 |
| Number of VPN Supported | 500 |
| Interfaces/Ports | |
| Total Number of Ports | 18 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 17 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 12 |
| Expansion Slot Type | SFP (mini-GBIC),SFP+ |
| Number of SFP Slots | 8 |
| Number of SFP+ Slots | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.01" (432.05 mm) |
| Depth | 13.47" (342.14 mm) |
| Weight (Approximate) | 10.14 lb (4599.43 g) |
| Warranty | |
| Limited Warranty | 1 Year |
| Support/Service Duration | 1 Year |
| Support/Service Type | 24x7 FortiCare and FortiGuard UTP |
FAQ
How many network ports does the FortiGate FG-201F have?
The FortiGate FG-201F has 18 total ports, consisting of 17 RJ-45 Ethernet ports and 1 USB port. This port configuration provides substantial connectivity for multiple network segments, workgroup connections, and management interfaces in medium-sized business environments.
What type of VPN capacity does this firewall appliance support?
This FortiGate appliance supports up to 500 concurrent VPN connections using IPsec VPN with AES-256 and SHA-256 encryption standards. This capacity accommodates remote workforce access, site-to-site connections, and secure external partnerships for typical departmental and workgroup deployments.
Can this firewall be mounted in a standard server rack?
Yes, the FortiGate FG-201F features a 1U rackmount form factor compatible with standard 19-inch server racks. With dimensions of 1.73" height, 17.01" width, and 13.47" depth, it integrates efficiently into data center and network closet environments while providing comprehensive security capabilities.
What expansion options are available for fiber connectivity?
The appliance includes 12 total expansion slots with 8 SFP slots and 4 SFP+ slots for fiber optic connectivity. These slots support SFP (mini-GBIC) and SFP+ modules, allowing network administrators to add fiber interfaces for long-distance connections or high-speed uplinks as needed for specific deployment requirements.
What security features are included in this FortiGate model?
The FG-201F includes comprehensive security features such as threat protection, malware protection, SSL encrypted traffic inspection, deep inspection firewall, application control, anti-spam, integrated web filtering, antivirus, botnet detection, outbreak prevention, cloud sandboxing, and secure IPsec VPN connectivity. This multi-layered approach addresses modern network threats effectively.
What type of warranty and support comes with this appliance?
The FortiGate FG-201F includes a 1-year limited warranty with 24x7 FortiCare and FortiGuard UTP support. This coverage provides technical assistance, firmware updates, and threat intelligence services to maintain optimal security posture and operational reliability throughout the warranty period.
