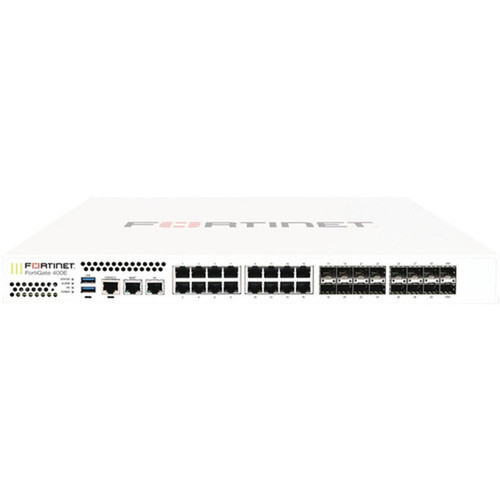

Fortinet FG-401E-BDL-809-12 FG-401E FortiGate 400E Series Network Security Firewall - 17 Port Gigabit Ethernet - 32 Gbit/s Throughput - 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FG-401E implements a multi-layered security architecture with firewall protection spanning access control, anti-phishing, anti-spam, antivirus, application control, botnet detection, cloud sandboxing, content filtering, DDoS mitigation, DNS security, email security, endpoint protection, IoT security, malware protection, ransomware protection, SaaS security, SSL/TLS inspection, threat protection, URL filtering, user authentication, vulnerability assessment, web protection, and zero-day threat prevention.
Encryption standards include SHA-256, AES (256-bit), TLS 1.3, and SSL for secure data transmission. The wired connectivity technology ensures reliable Gigabit Ethernet performance across all ports. The system is fully manageable for centralized security policy administration and monitoring.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This FortiGate appliance consolidates enterprise-grade security functions into a single 1U rack unit, reducing infrastructure complexity while providing robust protection against modern cyber threats. The high port density and SFP expansion capability allow for seamless integration into existing network environments without requiring additional switching hardware.
Comprehensive Threat Protection
Delivers over 35 security functions including advanced threat intelligence, sandbox detection prevention, and malicious source IP address blocking to safeguard network perimeters.
- AI/ML-driven security analytics
- Real-time threat detection
- Automated policy enforcement
High-Performance Connectivity
Provides 17 Gigabit Ethernet ports and 16 SFP slots for extensive network device attachment and fiber connectivity options.
- 1000Base-T and 1000Base-X support
- Flexible copper/fiber deployment
- High-bandwidth throughput
Deployment / Use Cases
The FortiGate FG-401E is optimized for deployment as an edge security gateway in medium to large enterprise networks, data center perimeters, and distributed branch offices. Its 1U rack-mountable form factor makes it ideal for standard server cabinet installations where space efficiency is critical.
Primary use cases include securing internet gateways with advanced threat protection, establishing secure VPN tunnels for remote workforce connectivity, implementing zero-trust network access policies, and providing content filtering for regulatory compliance. The appliance also serves effectively in educational institutions, healthcare facilities, and financial organizations requiring robust network segmentation and data leak prevention.
Enterprise Edge Security
Deploy as the primary security gateway at network boundaries to inspect all inbound and outbound traffic with deep packet inspection and threat intelligence.
Secure Remote Access Hub
Support large-scale remote workforce connectivity with 5000 concurrent VPN tunnels and 2.50 GB/s VPN throughput for encrypted site-to-site and client-to-site communications.
Physical Profile
The FG-401E features a standard 1U rack-mountable chassis with dimensions of 1.75" (44.45 mm) height, 17" (431.80 mm) width, and 15" (381 mm) depth. Weighing approximately 16.90 lb (7665.71 g), the appliance is designed for efficient data center deployment with front-accessible ports and ventilation. The compact form factor maximizes rack space utilization while providing adequate cooling for continuous operation. The environmentally friendly design meets 80 Plus Standard energy efficiency certification requirements.
- Width
- 17" (431.80 mm)
- Depth
- 15" (381 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 16.90 lb (7665.71 g)
What's in the Box
The package includes the FortiGate FG-401E network security/firewall appliance and two SFP (SX 1 GE) transceivers for immediate fiber connectivity deployment.
Package contents include FortiGate FG-401E Network Security/Firewall Appliance, 2 x SFP (SX 1 GE) Transceivers. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 17 Gigabit Ethernet ports for high-density network connectivity
- 32 Gbit/s firewall throughput for high-performance security processing
- Supports up to 5000 concurrent VPN connections with 2.50 GB/s VPN throughput
- 1U rack-mountable form factor for standard server cabinet installation
- Comprehensive security suite with AI/ML, zero trust, and deep inspection capabilities
- 16 SFP expansion slots for flexible fiber optic connectivity
- Energy-efficient design with 80 Plus Standard certification
- Manageable platform for centralized security policy administration
- Includes two SFP (SX 1 GE) transceivers in the package
- One-year limited warranty for reliable enterprise deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-401E-BDL-809-12 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 400E |
| Product Model | FG-401E |
| Product Name | FortiGate FG-401E Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Access Control,AI/ML Security,Anti-phishing,Anti-spam,Antivirus,Application Control,Botnet Detection,Cloud Sandboxing,Content Filtering,Cyber Assault Protection,Data Leak Prevention,Distributed Denial of Service (DDoS),DNS Security,Email Security,Endpoint Protection,Enterprise Security,File Security,Intrusion Prevention,IoT Security,Malware Protection,Network Protection,Operational Technology (OT) Security,Outbreak Prevention,Packet Filter,Ransomware Protection,SaaS Security,Sandbox Detection Prevention,Secure IPsec VPN Connectivity,SSL Inspection,Threat Protection,URL Filtering,User Authentication,Vulnerability Assessment,Web Protection,Zero Day Event,Zero Trust Network Access (ZTNA),Zero-day Threat Prevention,Web Content Filtering,Deep Inspection Firewall,Advanced Threat Intelligence,TLS Inspection,Malicious Source IP Address Blocking,Policy Enforcement |
| Firewall Throughput | 32 Gbit/s |
| Encryption Standard | SHA-256,AES (256-bit),TLS 1.3,SSL |
| Number of VPN Supported | 5000 |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Total Number of Ports | 17 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 17 |
| Media & Performance | |
| VPN Throughput | 2.50 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 1000Base-X,1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 16 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 16 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Power Consumption | 221 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 15" (381 mm) |
| Weight (Approximate) | 16.90 lb (7665.71 g) |
| Miscellaneous | |
| Package Contents | FortiGate FG-401E Network Security/Firewall Appliance 2 x SFP (SX 1 GE) Transceivers |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Standard |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the firewall throughput of the FortiGate FG-401E?
The FortiGate FG-401E delivers 32 Gbit/s firewall throughput, enabling high-performance inspection of network traffic with advanced security features including deep packet inspection, threat intelligence, and policy enforcement without creating bottlenecks in enterprise network environments.
How many network ports does this security appliance have?
This appliance features 17 total network ports, all supporting Gigabit Ethernet (1000Base-T/1000Base-X). The ports include RJ-45 connections for copper cabling, plus 16 SFP expansion slots for optional fiber optic transceivers, providing flexible connectivity for diverse network infrastructure requirements.
What VPN capacity does the FG-401E support?
The FG-401E supports up to 5000 concurrent VPN connections with a VPN throughput of 2.50 GB/s. This capacity enables secure remote access for large distributed workforces and encrypted site-to-site connectivity between multiple branch offices or data centers using IPsec VPN technology.
Is this appliance rack-mountable and what are its dimensions?
Yes, the FG-401E is designed for 1U rack mounting with dimensions of 1.75" height, 17" width, and 15" depth. The standard rack-mountable form factor allows for efficient deployment in server cabinets and data center environments where space optimization is essential for infrastructure management.
What security features are included with this FortiGate appliance?
The appliance includes comprehensive security features such as AI/ML security, anti-phishing, anti-spam, antivirus, application control, botnet detection, cloud sandboxing, content filtering, DDoS protection, DNS security, intrusion prevention, IoT security, ransomware protection, SSL/TLS inspection, threat protection, URL filtering, zero trust network access, and zero-day threat prevention for multi-layered network protection.
What is included in the package with the FG-401E?
The package contains the FortiGate FG-401E network security/firewall appliance and two SFP (SX 1 GE) transceivers. These transceivers provide immediate fiber optic connectivity options for network deployments requiring longer distance connections or specific fiber infrastructure compatibility.
