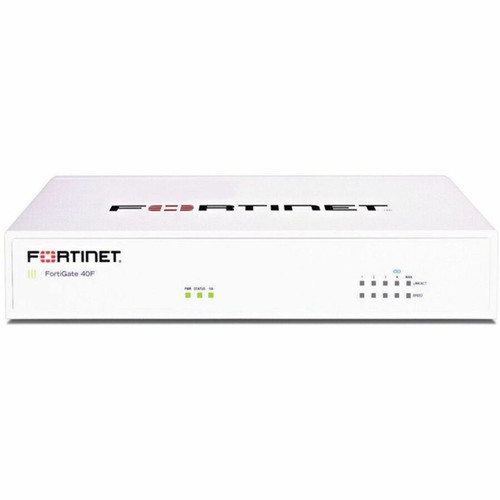

Fortinet FG-40F-BDL-809-60 FortiGate FG-40F Network Security Firewall - 5 Port Gigabit Ethernet - 5 Gbit/s Throughput - Desktop/Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FG-40F employs a deep inspection firewall engine that processes traffic at line rate with 5 Gbit/s throughput. It supports comprehensive security services including AI/ML-based threat detection, intrusion prevention, antivirus, anti-phishing, ransomware protection, and zero-day threat prevention.
Encryption standards include SHA-256, AES-256, TLS 1.3, and SSL for secure communications. The appliance provides SSL/TLS inspection capabilities to detect threats hidden in encrypted traffic. Management is fully supported through Fortinet's centralized management platforms.
Relevant factors for this section include Firewall Protection Supported, Firewall Throughput, Encryption Standard, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FortiGate FG-40F consolidates multiple security functions into a single appliance, reducing the need for separate security devices while maintaining high performance. Its compact form factor allows flexible deployment in space-constrained environments.
Comprehensive Threat Protection
Integrates over 35 security functions including AI/ML security, botnet detection, data leak prevention, IoT security, and advanced threat intelligence for multi-layered defense.
- AI/ML-based threat detection
- Cloud sandboxing for unknown threats
- Real-time vulnerability assessment
High-Performance Architecture
Delivers 5 Gbit/s firewall throughput and 563.20 MB/s VPN throughput without compromising security inspection capabilities, ensuring network performance under load.
- 5 Gbit/s firewall throughput
- 563.20 MB/s VPN throughput
- Line-rate deep packet inspection
Flexible Deployment Options
Supports desktop, wall-mount, and rack-mount installations with compact dimensions, making it suitable for branch offices, retail locations, and small data centers.
- Desktop, wall, or rack mounting
- Compact 1.5" height
- Low 9.46W power consumption
Deployment / Use Cases
The FortiGate FG-40F is ideal for securing small to medium business networks, retail branch locations, and remote offices where space and power constraints exist. Its five Gigabit Ethernet ports support typical edge deployment scenarios with separate WAN and LAN segments.
Common deployments include serving as the primary security gateway for offices with 20-50 users, providing secure VPN connectivity for remote workers, and protecting point-of-sale systems in retail environments. The appliance can also secure IoT device networks through dedicated segmentation and policy enforcement.
Small Business Edge Security
Deploy as the primary security appliance for offices requiring comprehensive threat protection with limited IT staff. The intuitive management interface simplifies policy configuration and monitoring.
Secure Remote Access Gateway
Provide encrypted VPN connectivity for up to 200 remote users while inspecting all traffic for threats. Supports IPsec VPN with high throughput for business-critical applications.
Physical Profile
The FG-40F features a compact desktop form factor measuring 8.50" wide × 6.30" deep × 1.50" high (215.90 × 160.02 × 38.10 mm) and weighing approximately 2.20 lb (997.90 g). This slim profile allows installation in space-constrained environments while supporting multiple mounting options including desktop placement, wall mounting, or rack mounting with optional accessories.
- Width
- 8.50" (215.90 mm)
- Depth
- 6.30" (160.02 mm)
- Height
- 1.50" (38.10 mm)
- Weight
- 2.20 lb (997.90 g)
Highlights
- 5 Gbit/s firewall throughput for high-performance security inspection
- Five Gigabit Ethernet ports for flexible network segmentation
- Supports up to 200 concurrent VPN connections with 563.20 MB/s throughput
- Comprehensive threat protection with over 35 security functions
- Deep inspection firewall with SSL/TLS decryption capabilities
- Compact form factor supports desktop, wall, or rack mounting
- Low 9.46W power consumption for energy-efficient operation
- Managed through Fortinet's centralized security management platforms
- 1-year limited warranty from manufacturer
- Wired connectivity with no wireless LAN support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-40F-BDL-809-60 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 40F |
| Product Model | FG-40F |
| Product Name | FortiGate FG-40F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Access Control,AI/ML Security,Anti-phishing,Anti-spam,Antivirus,Application Control,Botnet Detection,Cloud Sandboxing,Content Filtering,Cyber Assault Protection,Data Leak Prevention,Distributed Denial of Service (DDoS),DNS Security,Email Security,Endpoint Protection,Enterprise Security,File Security,Intrusion Prevention,IoT Security,Malware Protection,Network Protection,Operational Technology (OT) Security,Outbreak Prevention,Packet Filter,Ransomware Protection,SaaS Security,Sandbox Detection Prevention,Secure IPsec VPN Connectivity,SSL Inspection,Threat Protection,URL Filtering,User Authentication,Vulnerability Assessment,Web Protection,Zero Day Event,Zero Trust Network Access (ZTNA),Zero-day Threat Prevention,Web Content Filtering,Deep Inspection Firewall,Advanced Threat Intelligence,TLS Inspection,Malicious Source IP Address Blocking,Policy Enforcement |
| Firewall Throughput | 5 Gbit/s |
| Encryption Standard | SHA-256,AES (256-bit),TLS 1.3,SSL |
| Number of VPN Supported | 200 |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Media & Performance | |
| VPN Throughput | 563.20 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 1000Base-T |
| Wireless Specifications | |
| Wireless LAN | No |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Power Consumption | 9.46 W |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable,Rack-mountable,Compact |
| Height | 1.50" (38.10 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 6.30" (160.02 mm) |
| Weight (Approximate) | 2.20 lb (997.90 g) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the firewall throughput of the FortiGate FG-40F?
The FortiGate FG-40F delivers 5 Gbit/s firewall throughput, enabling it to inspect traffic at line rate while applying comprehensive security policies. This throughput capacity ensures network performance remains high even when multiple security services like intrusion prevention, antivirus, and web filtering are enabled simultaneously.
How many network ports does this firewall appliance have?
The FG-40F includes five Gigabit Ethernet RJ-45 ports for network connectivity. These ports support 1000Base-T standards and can be configured for WAN, LAN, or DMZ segmentation. The appliance also includes one USB port for additional connectivity options or management purposes.
What VPN capabilities does the FG-40F support?
This firewall supports up to 200 concurrent VPN connections with a throughput of 563.20 MB/s. It provides secure IPsec VPN connectivity with encryption standards including SHA-256, AES-256, TLS 1.3, and SSL. The VPN functionality enables secure remote access and site-to-site connectivity for distributed organizations.
Can the FG-40F be rack-mounted?
Yes, the FG-40F supports multiple form factors including rack-mountable, desktop, and wall-mountable installations. Its compact dimensions of 8.50" wide × 6.30" deep × 1.50" high allow flexible deployment in various environments. For rack mounting, appropriate mounting brackets or shelves may be required depending on the rack configuration.
What security features are included with this firewall?
The FG-40F includes over 35 integrated security functions such as AI/ML security, intrusion prevention, antivirus, anti-phishing, ransomware protection, data leak prevention, botnet detection, cloud sandboxing, and zero-day threat prevention. It also features deep inspection firewall capabilities with SSL/TLS inspection to detect threats in encrypted traffic.
What is the power consumption of this appliance?
The FortiGate FG-40F consumes approximately 9.46 watts of power during normal operation, making it energy-efficient for continuous deployment. It supports both 50 Hz and 60 Hz power frequencies, providing compatibility with standard power systems in North America and international markets.
