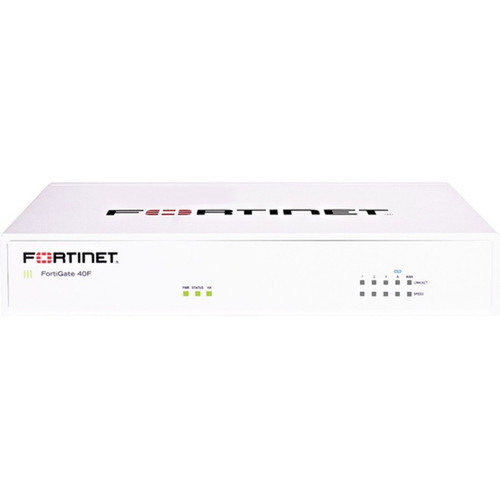

Fortinet FG-40F FortiGate Network Security Firewall Appliance - 5 Port Gigabit Ethernet - 5 Gbit/s Throughput - Wall Mountable Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiGate FG-40F utilizes Fortinet's purpose-built security processing unit (SPU) to deliver line-rate threat inspection without compromising network performance. It supports Gigabit Ethernet connectivity across all five RJ-45 ports, ensuring compatibility with existing network infrastructure.
Security processing includes deep packet inspection (DPI), SSL/TLS encrypted traffic inspection, and real-time threat intelligence updates. The appliance employs AES-256-bit and SHA-256 encryption standards for VPN and data protection, with hardware-accelerated cryptographic operations.
Relevant factors for this section include Functionality, Firewall Protection Supported, Firewall Throughput, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FG-40F consolidates multiple security functions into a single appliance, reducing complexity while maintaining comprehensive protection. Its hardware-accelerated architecture ensures security processing does not become a network bottleneck.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Threat Protection, Flexible Deployment Options.
Comprehensive Threat Protection
Integrates deep inspection firewall, malware protection, antivirus, botnet detection, and outbreak prevention with SSL/TLS inspection capabilities.
- Application-aware security policies
- Real-time threat intelligence updates
- Encrypted traffic inspection
Flexible Deployment Options
Supports both desktop placement and wall mounting with included hardware, accommodating various office layouts and space constraints.
- Compact footprint
- Cable management friendly
- Low power consumption
Deployment / Use Cases
The FortiGate FG-40F is ideal for securing small business networks, retail store connectivity, medical office networks, and branch office environments. Its five Gigabit Ethernet ports provide sufficient interfaces for WAN connectivity, LAN segmentation, and dedicated management access.
Common deployment scenarios include serving as the primary security gateway for offices with 20-50 users, providing secure VPN connectivity for remote workers, or functioning as a dedicated inspection point for guest network traffic. The appliance can also secure point-of-sale systems, IoT devices, and other specialized network segments.
Small Business Edge Security
Protects business networks with application control, web filtering, and threat prevention while supporting secure remote access via IPsec VPN.
Branch Office Connectivity
Provides secure site-to-site VPN tunnels between locations with consistent security policies and centralized management.
Physical Profile
The FG-40F features a compact chassis measuring 8.50" wide × 6.30" deep × 1.50" high (215.9 × 160.02 × 38.1 mm) and weighing approximately 2.20 lb (997.9 g). Its low-profile design allows for discreet placement on desktops or mounting on walls using standard hardware.
The enclosure includes ventilation for passive cooling and mounting points for secure installation. The front panel provides status LEDs for power, network activity, and system health monitoring.
- Width
- 8.50" (215.90 mm)
- Depth
- 6.30" (160.02 mm)
- Height
- 1.50" (38.10 mm)
- Weight
- 2.20 lb (997.90 g)
Highlights
- 5 Gbit/s firewall throughput for high-performance security processing
- 5 Gigabit Ethernet ports (10/100/1000Base-T) for network connectivity
- Supports up to 200 concurrent VPN tunnels with 563.20 MB/s VPN throughput
- Application-aware security with deep inspection firewall capabilities
- AES-256-bit and SHA-256 encryption for data and VPN protection
- Wall-mountable or desktop form factor for flexible installation
- Low 9.46 W power consumption for energy-efficient operation
- Comprehensive threat protection including malware, antivirus, and botnet detection
- SSL/TLS encrypted traffic inspection for modern web security
- Fully manageable with centralized security policy administration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-40F |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 40F |
| Product Model | FG-40F |
| Product Name | FortiGate FG-40F Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Functionality | Application Security |
| Firewall Protection Supported | Deep Inspection Firewall,Malware Protection,Threat Protection,SSL Encrypted Traffic Protection,Anti-spam,Secure IPsec VPN Connectivity,Application Control,Antivirus,Botnet Detection,SSL Inspection,TLS Inspection,Outbreak Prevention,Cloud Sandboxing,URL Filtering,Web Content Filtering,DNS Security,IoT Security |
| Firewall Throughput | 5 Gbit/s |
| Encryption Standard | AES (256-bit),SHA-256 |
| Number of VPN Supported | 200 |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Media & Performance | |
| VPN Throughput | 563.20 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Wireless Specifications | |
| Wireless LAN | No |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Power Consumption | 9.46 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Desktop |
| Height | 1.50" (38.10 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 6.30" (160.02 mm) |
| Weight (Approximate) | 2.20 lb (997.90 g) |
FAQ
What is the firewall throughput of the FortiGate FG-40F?
The FortiGate FG-40F delivers 5 Gbit/s firewall throughput, providing sufficient capacity for inspecting traffic on Gigabit Ethernet networks without creating performance bottlenecks. This throughput rating represents the appliance's maximum inspection capacity under typical security policy configurations.
How many network ports does this firewall appliance have?
The FG-40F includes five Gigabit Ethernet ports (10/100/1000Base-T) for network connectivity. All ports support auto-negotiation and auto-MDI/MDIX, with one typically designated for WAN connectivity and the remaining ports available for LAN segmentation, DMZ, or management interfaces.
What VPN capabilities does the FortiGate FG-40F support?
This appliance supports up to 200 concurrent VPN tunnels with a throughput of 563.20 MB/s. It utilizes IPsec VPN with AES-256-bit and SHA-256 encryption for secure site-to-site and remote access connectivity. The VPN implementation includes hardware acceleration for optimal performance.
Can the FG-40F be wall mounted?
Yes, the FortiGate FG-40F supports both desktop placement and wall mounting. The compact chassis includes mounting points for secure installation on walls or in network cabinets, helping organize cables and conserve desk space in office environments.
What security features are included with this firewall?
The FG-40F provides comprehensive threat protection including deep inspection firewall, malware protection, antivirus, botnet detection, SSL/TLS inspection, application control, URL filtering, DNS security, IoT security, and cloud sandboxing. These features work together to protect against modern network threats.
What is the power consumption of this network security appliance?
The FortiGate FG-40F consumes approximately 9.46 watts of power during normal operation, making it energy-efficient for continuous deployment. It supports both 50 Hz and 60 Hz power frequencies and includes an external power adapter for connectivity to standard electrical outlets.
