Fortinet FG-80F-POE-BDL-809-12 FortiGate FG-80F-POE Network Security Firewall Appliance - 10 Port Gigabit Ethernet with PoE - 10 Gbit/s Throughput
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This FortiGate appliance operates on Fortinet's purpose-built security processing units, delivering hardware-accelerated performance for deep packet inspection, encryption, and threat analysis. The system supports major encryption standards including AES-256, SHA-256, and TLS 1.3, ensuring secure data transmission across both internal and external network segments.
Its AI-powered security features continuously analyze network traffic patterns to identify and block sophisticated threats, while the integrated FortiGuard services provide real-time intelligence updates. The appliance maintains up to 1.5 million concurrent sessions, ensuring reliable performance during peak network usage without degradation in security processing.
Relevant factors for this section include Functionality, Firewall Protection Supported, Firewall Throughput, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FG-80F-POE consolidates multiple network security functions into a single, manageable appliance, reducing infrastructure complexity while providing enterprise-grade protection. Its integrated Power over Ethernet ports eliminate the need for separate power injectors or electrical outlets at remote device locations, significantly simplifying installation and reducing cabling costs.
Comprehensive Security Suite
Includes intrusion prevention, application control, web filtering, data leak prevention, SSL inspection, and secure IPsec VPN connectivity—all managed through a unified interface.
- AI/ML threat detection
- Cloud sandboxing
- Zero Trust Network Access (ZTNA)
- Botnet and DDoS protection
Flexible Deployment Options
The compact form factor supports desktop placement, wall mounting, or standard rack installation, making it suitable for office environments, retail locations, or small server rooms.
- Desktop footprint
- Rack-mountable with brackets
- Wall mountable for space-constrained areas
Deployment / Use Cases
This firewall appliance is ideally positioned as the primary security gateway for small business networks, branch offices, or retail environments where both network protection and PoE device connectivity are required. Its 10 Gbit/s throughput capacity ensures it can handle the aggregated traffic of multiple departments without becoming a bottleneck.
Common deployment scenarios include securing the network perimeter for offices with 20-100 users, providing VPN connectivity for remote workers, protecting point-of-sale systems in retail environments, and serving as the security controller for networks with multiple wireless access points and IP phones powered through the integrated PoE ports.
Small Business Headquarters
Acts as the main firewall and security appliance, providing threat protection, content filtering, and secure remote access via VPN for the entire organization.
Branch Office Security
Deploys at remote locations to enforce consistent security policies, establish site-to-site VPN tunnels to headquarters, and power local PoE devices.
Physical Profile

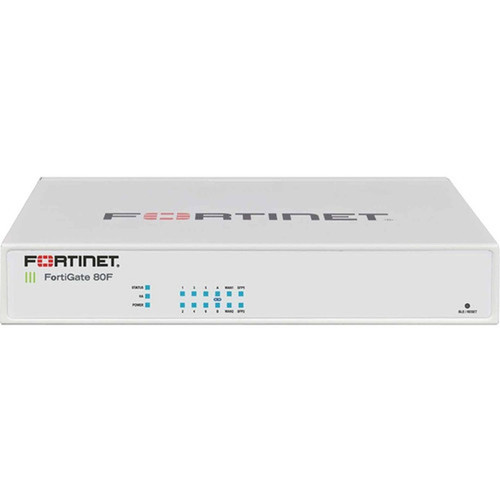

The FG-80F-POE features a compact, industrial-grade chassis measuring 2.4" high, 8.5" wide, and 7" deep, with a weight of approximately 3.1 pounds. This streamlined design accommodates multiple installation methods while maintaining adequate thermal performance for continuous operation. The front panel provides clear status indicators for power, system health, and network activity, while all ports are conveniently accessible for cable management.
- Width
- 8.50" (215.90 mm)
- Depth
- 7" (177.80 mm)
- Height
- 2.40" (60.96 mm)
- Weight
- 3.10 lb (1406.14 g)
What's in the Box
This package includes all essential components for immediate deployment of the FortiGate security appliance in your network environment.
Highlights
- 10 Gigabit Ethernet ports with 8 PoE ports for simplified device deployment
- 10 Gbit/s firewall throughput ensures high-performance network protection
- AI-powered threat prevention with real-time FortiGuard intelligence updates
- Supports up to 200 VPN tunnels for secure remote access
- Desktop, wall, or rack-mountable form factor for flexible installation
- 1.5 million concurrent session capacity for demanding network environments
- Comprehensive security suite including intrusion prevention and web filtering
- 1-year FortiCare Premium and FortiGuard Enterprise Protection included
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-80F-POE-BDL-809-12 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Series | 80F |
| Product Model | FG-80F-POE |
| Product Name | FortiGate FG-80F-POE Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Functionality | Intrusion Prevention |
| Firewall Protection Supported | Access Control,AI/ML Security,Anti-phishing,Anti-spam,Antivirus,Application Control,Botnet Detection,Cloud Sandboxing,Content Filtering,Cyber Assault Protection,Data Leak Prevention,Distributed Denial of Service (DDoS),DNS Security,Email Security,Endpoint Protection,Enterprise Security,File Security,Intrusion Prevention,IoT Security,Malware Protection,Network Protection,Operational Technology (OT) Security,Outbreak Prevention,Packet Filter,Ransomware Protection,SaaS Security,Sandbox Detection Prevention,Secure IPsec VPN Connectivity,SSL Inspection,Threat Protection,URL Filtering,User Authentication,Vulnerability Assessment,Web Protection,Zero Day Event,Zero Trust Network Access (ZTNA),Zero-day Threat Prevention,Web Content Filtering,Deep Inspection Firewall,Advanced Threat Intelligence,TLS Inspection,Malicious Source IP Address Blocking,Policy Enforcement |
| Firewall Throughput | 10 Gbit/s |
| Encryption Standard | SHA-256,AES (256-bit),TLS 1.3,SSL |
| Number of VPN Supported | 200 |
| Data Link Protocols | HTTP,HTTPS |
| Connectivity Technology | Wired |
| Number of Concurrent Sessions (Max) | 1500000 |
| AI-powered | Yes |
| AI Features | Enterprise Security,Threat Prevention |
| Interfaces/Ports | |
| Total Number of Ports | 10 |
| USB | Yes |
| PoE (RJ-45) Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of PoE (RJ-45) Ports | 8 |
| Media & Performance | |
| VPN Throughput | 832 MB/s |
| IPS Throughput | 179.20 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 1000Base-T,1000Base-X |
| Wireless Specifications | |
| Wireless LAN | No |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Power Consumption | 118 W |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable,Rack-mountable |
| Height | 2.40" (60.96 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 7" (177.80 mm) |
| Weight (Approximate) | 3.10 lb (1406.14 g) |
| Miscellaneous | |
| Package Contents | FortiGate FG-80F-POE Network Security/Firewall Appliance 1 x DC Power Adapter |
| Warranty | |
| Limited Warranty | 1 Year |
| Support/Service Duration | 1 Year |
| Support/Service Type | FortiCare Premium and FortiGuard Enterprise Protection |
User Manual
FAQ
What types of security protection does the FortiGate FG-80F-POE provide?
The FG-80F-POE delivers comprehensive network security through its intrusion prevention system (IPS) and supports numerous protection mechanisms including AI/ML threat detection, anti-virus, anti-spam, ransomware protection, application control, web filtering, data leak prevention, DDoS mitigation, and zero-day threat prevention. It also provides secure IPsec VPN connectivity with SSL inspection capabilities for encrypted traffic analysis.
How many Power over Ethernet ports does this firewall appliance have?
This FortiGate model includes eight dedicated Power over Ethernet (PoE) ports that can deliver both data and electrical power to connected devices such as IP phones, wireless access points, and security cameras. These PoE ports operate alongside two standard Gigabit Ethernet network ports, providing a total of ten wired connectivity options.
What is the maximum firewall throughput of the FG-80F-POE?
The firewall throughput capacity is 10 gigabits per second (Gbit/s), enabling the appliance to inspect and filter network traffic at high speeds without creating performance bottlenecks. Additionally, it delivers 832 MB/s VPN throughput for encrypted connections and 179.20 MB/s IPS throughput for intrusion prevention scanning.
Can this security appliance be rack-mounted?
Yes, the FG-80F-POE supports multiple installation methods including desktop placement, wall mounting, and standard rack mounting. Its compact dimensions (2.4" H × 8.5" W × 7" D) and lightweight design (approximately 3.1 pounds) make it suitable for various deployment environments from small office desks to equipment racks in server rooms.
How many VPN connections does the FortiGate FG-80F-POE support?
This appliance supports up to 200 concurrent VPN tunnels, allowing secure remote access for employees and establishing encrypted connections between multiple sites. The VPN throughput of 832 MB/s ensures that encrypted traffic flows efficiently without compromising network performance for business applications.
What warranty and support services are included with this product?
The FG-80F-POE comes with a 1-year limited warranty and includes 1-year FortiCare Premium support along with FortiGuard Enterprise Protection services. This comprehensive support package provides access to technical assistance, firmware updates, and real-time threat intelligence feeds that keep the security defenses current against emerging threats.
